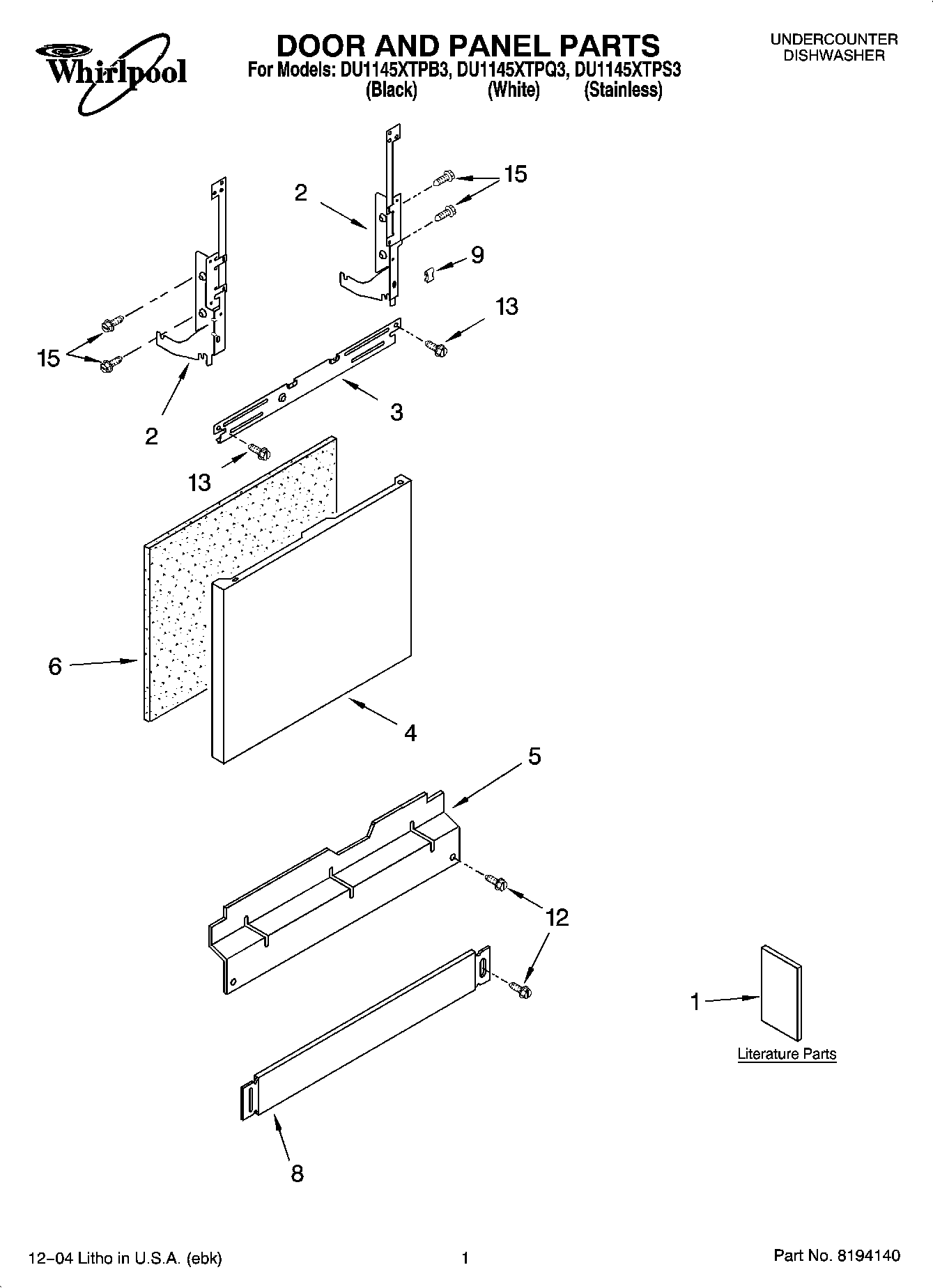

DU1145XTPB3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Guide, Use & Care Tech Sheet
1	Energy Guide
1	English/French
1	Instructions, Installation
2	W11613572 Whirlpool Dishwasher Door Hinge
2	W11613573 Whirlpool Door Hinge
3	Stiffener, Door
4	W10301571 Whirlpool Dishwasher Panel
4	W10301577 Whirlpool Outer Door Panel
4	Panel Front (White)
5	W10909066 Whirlpool Dishwasher Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	W10909064 Whirlpool Dishwasher Black Access Panel
9	Clip, Grounding
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WP302868 Whirlpool Screw
13	SCREW
15	Screw 10-16, Hi-Lo (4)
