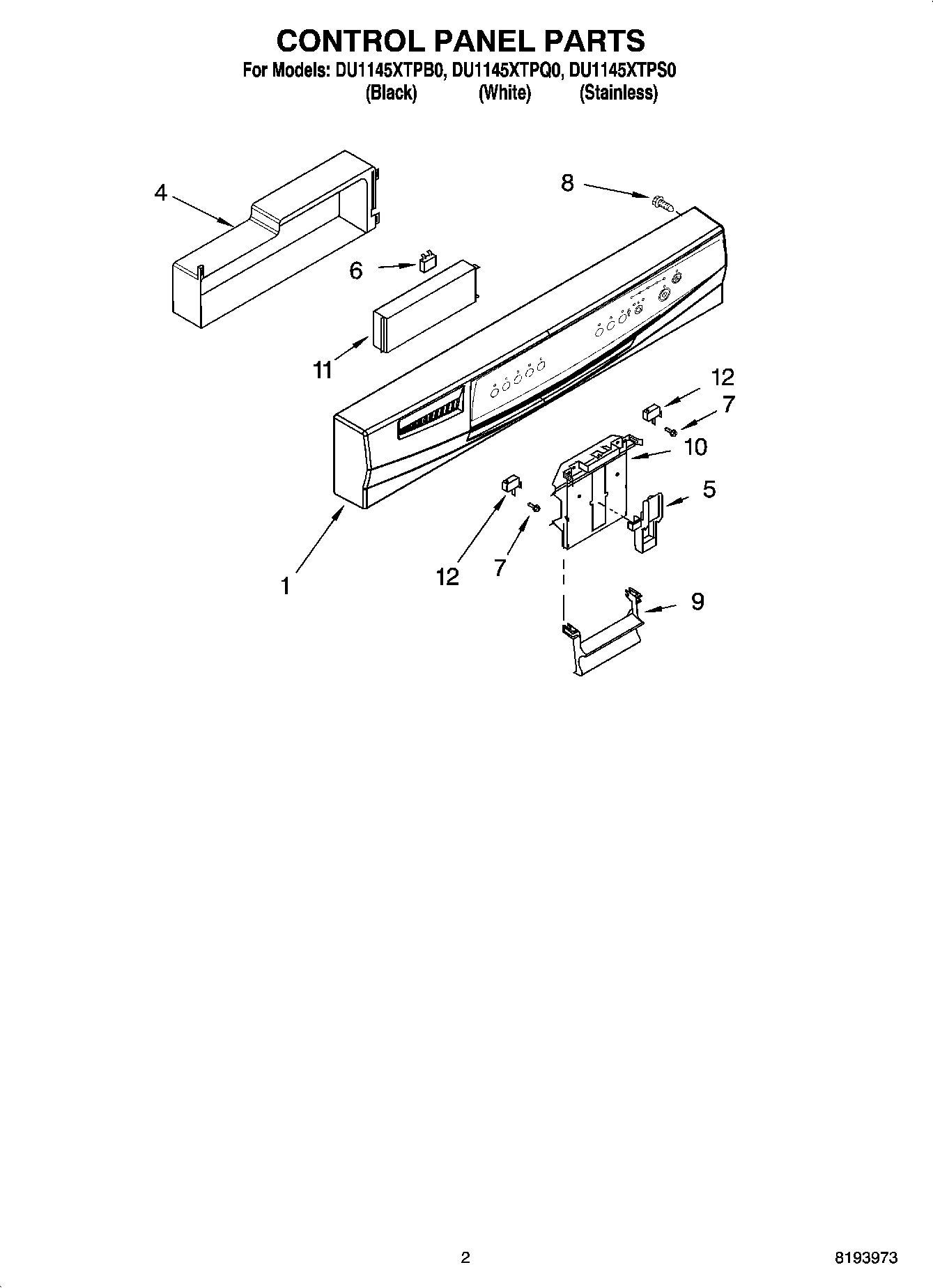

DU1145XTPQ0 02 – CONTROL PANEL PARTS

DU1145XTPQ0 02 – CONTROL PANEL PARTS

Written by

in

DU1145XTPQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Active Overlay & Insert) (White)
1WPW10142945 Whirlpool Dishwasher Control Panel
4Cover Control Shield Assembly
5WP8524471 Whirlpool Dishwasher Actuator
68193762 Whirlpool Fuse Kit
7WP3400412 Whirlpool Dishwasher Screw
8WPW10348409 Whirlpool Screw
9WP8534985 Whirlpool Dishwasher Handle
9WP8534984 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11Control, Electronic
12WP8269209 Whirlpool Door Switch
