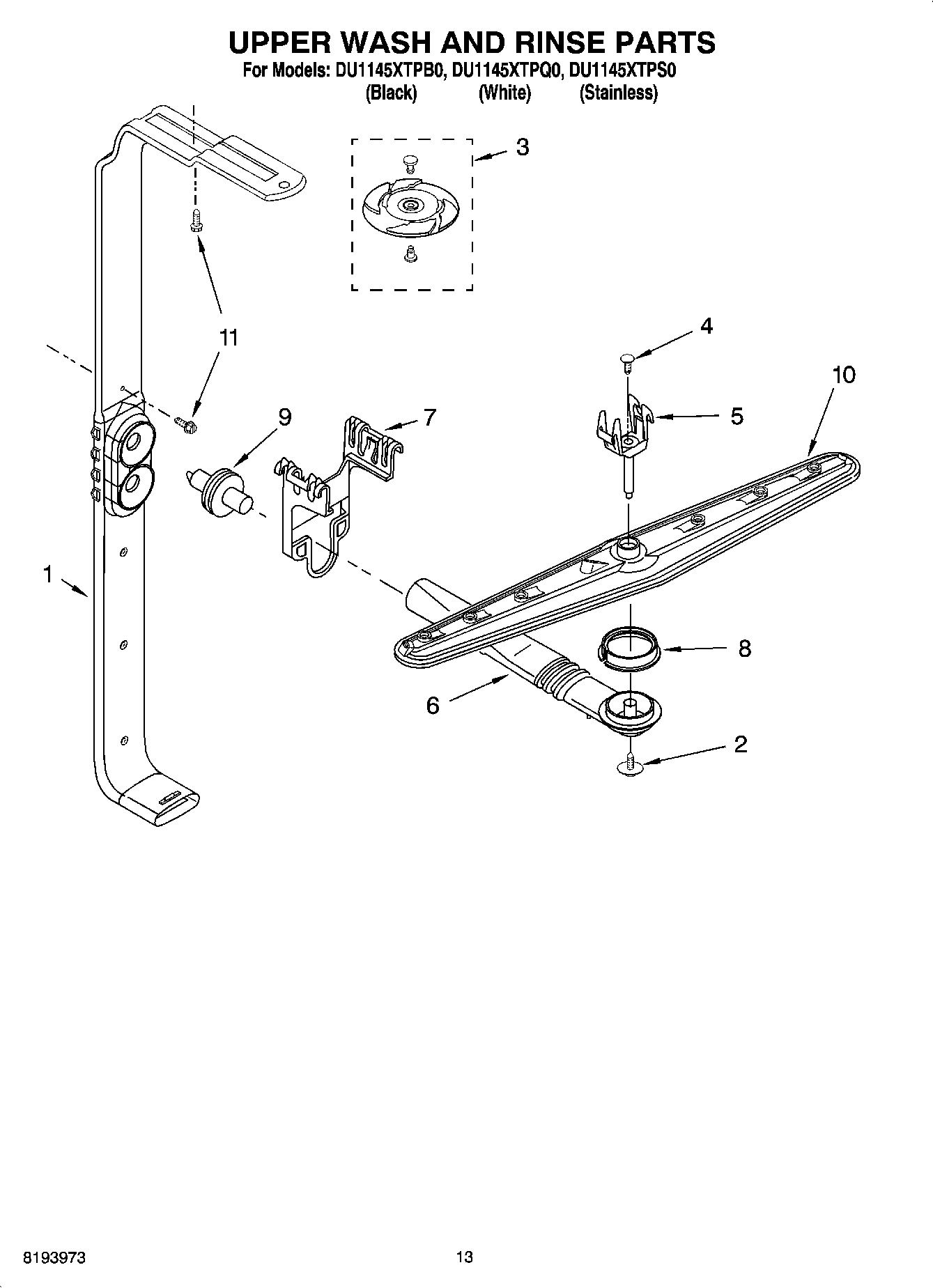

DU1145XTPQ0 10 – UPPER WASH AND RINSE PARTS

DU1145XTPQ0 10 – UPPER WASH AND RINSE PARTS

Written by

in

DU1145XTPQ0 10 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1WPW10077863 Whirlpool Dishwasher Feed Tube
2WPW10349488 Whirlpool Screw
38193983 Whirlpool Spinner Kit
4WP3400919 Whirlpool Dishwasher Screw Cover
5WP8268321 Whirlpool Dishwasher Mount
6WPW10258150 Whirlpool Dishwasher Manifold
7Holder, Feed Tube
8WP8268433 Whirlpool Seal Assembly
9WPW10082831 Whirlpool Dishwasher Probe
10WP8269024 Whirlpool Dishwasher Spray Arm
11WP489443 Whirlpool Refrigerator Screw
