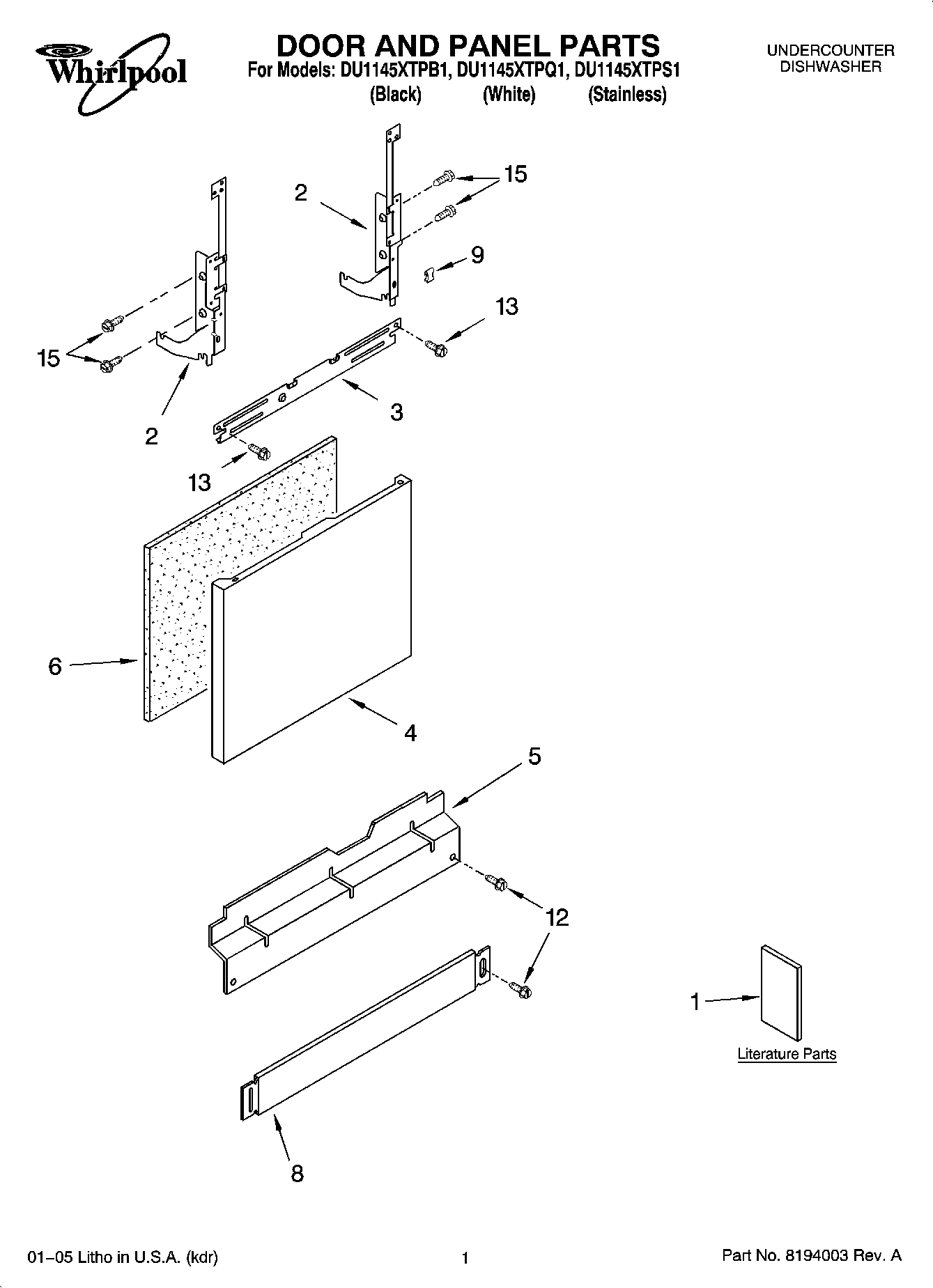

DU1145XTPQ1 01 – DOOR AND PANEL PARTS

DU1145XTPQ1 01 – DOOR AND PANEL PARTS

Written by

in

DU1145XTPQ1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care Tech Sheet
1English/French
1Instructions, Installation
1Energy Guide
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3Stiffener, Door
4W10301571 Whirlpool Dishwasher Panel
4W10301577 Whirlpool Outer Door Panel
4Panel Front (White)
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
9Clip, Grounding
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13SCREW
15Screw 10-16, Hi-Lo (4)
