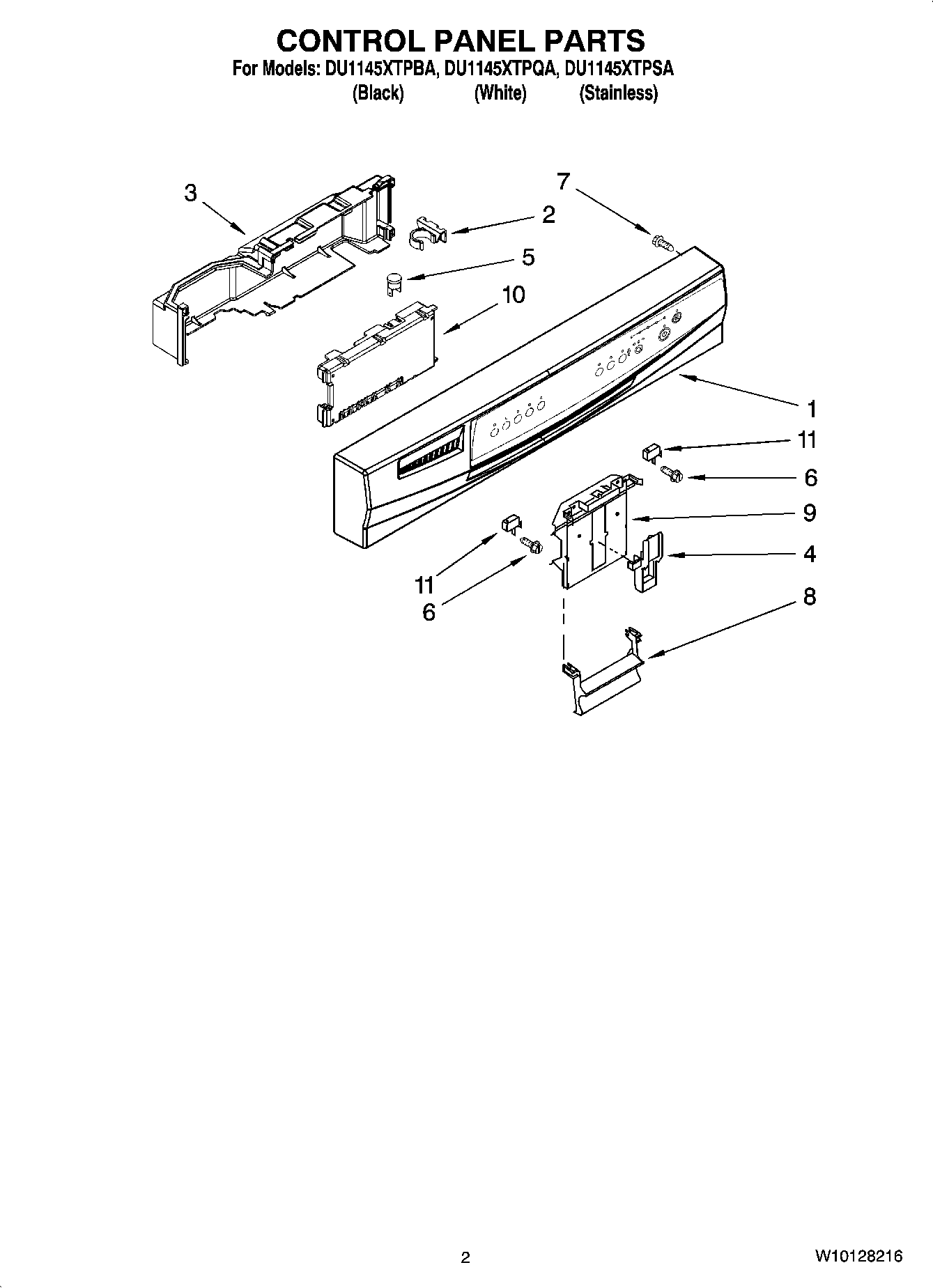

DU1145XTPQA 02 – CONTROL PANEL PARTSadmin2025-04-26T11:59:47+00:00DU1145XTPQA 02 – CONTROL PANEL PARTS ProductsPositionProduct1Console Asm. (Includes Active Overlay & Insert) (White)1WPW10142945 Whirlpool Dishwasher Control Panel2Clip, BI-Metal3Cover Control Shield Assembly4WP8524471 Whirlpool Dishwasher Actuator5W10258275 Whirlpool Dishwasher Bimetal Fuse6WP3400412 Whirlpool Dishwasher Screw7WPW10348409 Whirlpool Screw8WP8534985 Whirlpool Dishwasher Handle8WP8534984 Whirlpool Dishwasher Handle98193882 Whirlpool Dishwasher Primary Latch Bolt10WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board11WP8269209 Whirlpool Door Switch
