DU1145XTPS8 01 – DOOR AND PANEL PARTS

DU1145XTPS8 01 – DOOR AND PANEL PARTS

Written by

in

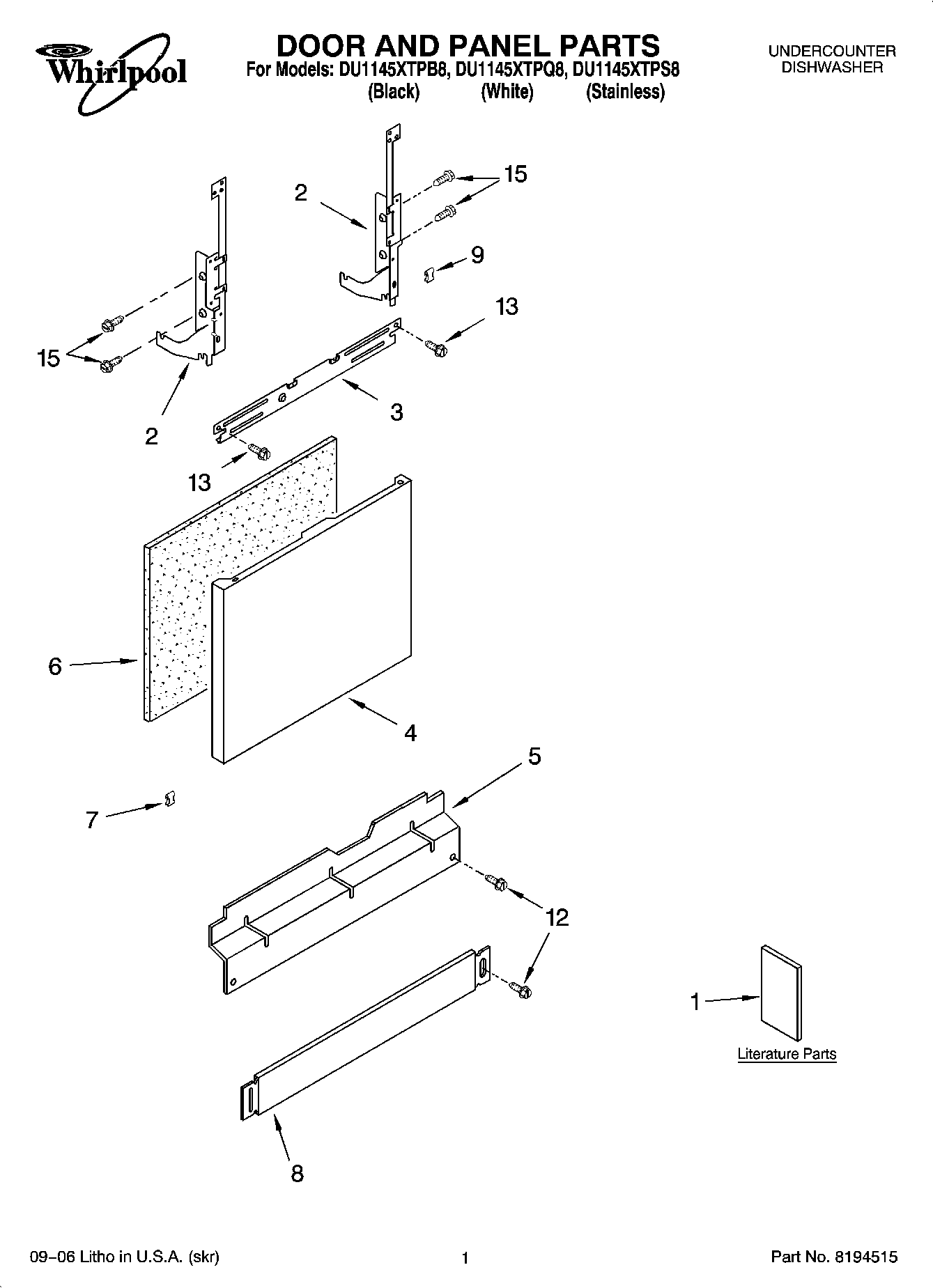

DU1145XTPS8 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Instructions, Installation
1Guide, Use & Care Tech Sheet
1Tech Sheet
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10301571 Whirlpool Dishwasher Panel
4W10301577 Whirlpool Outer Door Panel
4Panel Front (Includes 7) (White)
5W10909066 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WP8269016 Whirlpool Clip Assembly
8WP8573287 Whirlpool Dishwasher Toe Panel
9Clip, Grounding
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13SCREW
15WPW10109200 Whirlpool Screw
