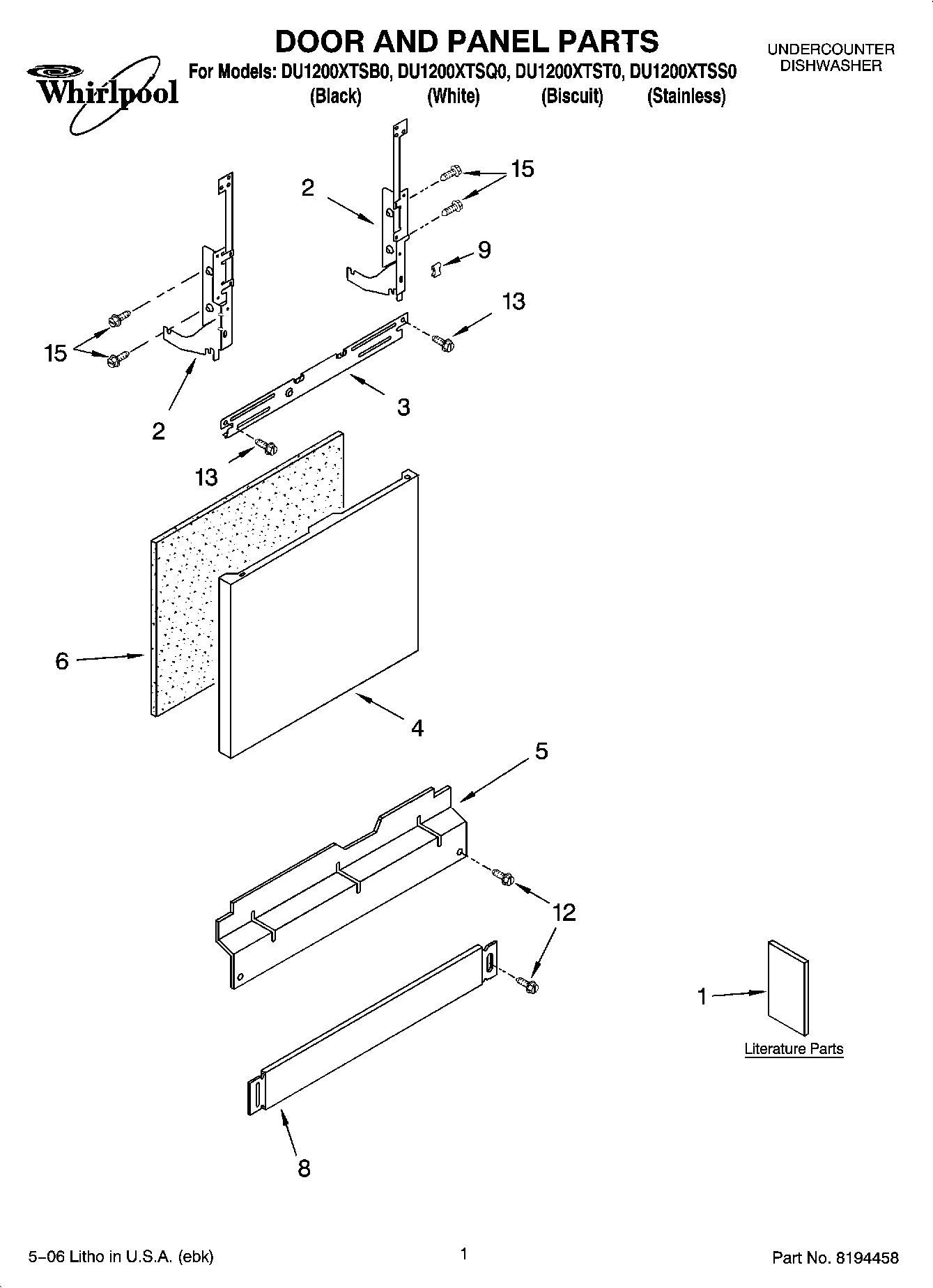

DU1200XTST0 01 – DOOR AND PANEL PARTSadmin2025-04-26T11:05:00+00:00DU1200XTST0 01 – DOOR AND PANEL PARTS ProductsPositionProduct1Tech Sheet1Guide, Use & Care1Energy Guide1Instructions, Installation2W11613573 Whirlpool Door Hinge2W11613572 Whirlpool Dishwasher Door Hinge3Stiffener, Door4W10301577 Whirlpool Outer Door Panel4W10384707 Whirlpool Dishwasher Panel4Panel Front (Includes 7) (White)4W10301571 Whirlpool Dishwasher Panel5W10871198 Whirlpool Dishwasher Panel5W10909066 Whirlpool Dishwasher Panel5W10909064 Whirlpool Dishwasher Black Access Panel6WPW10073520 Whirlpool Dishwasher Insulation Pad8WP8573287 Whirlpool Dishwasher Toe Panel8Toe Panel (Biscuit)9Clip, Grounding12WP302868 Whirlpool Screw12WPW10503549 Whirlpool Dishwasher Retainer Clip12WPW10503550 Whirlpool Dishwasher Retainer13SCREW15WPW10109200 Whirlpool Screw
