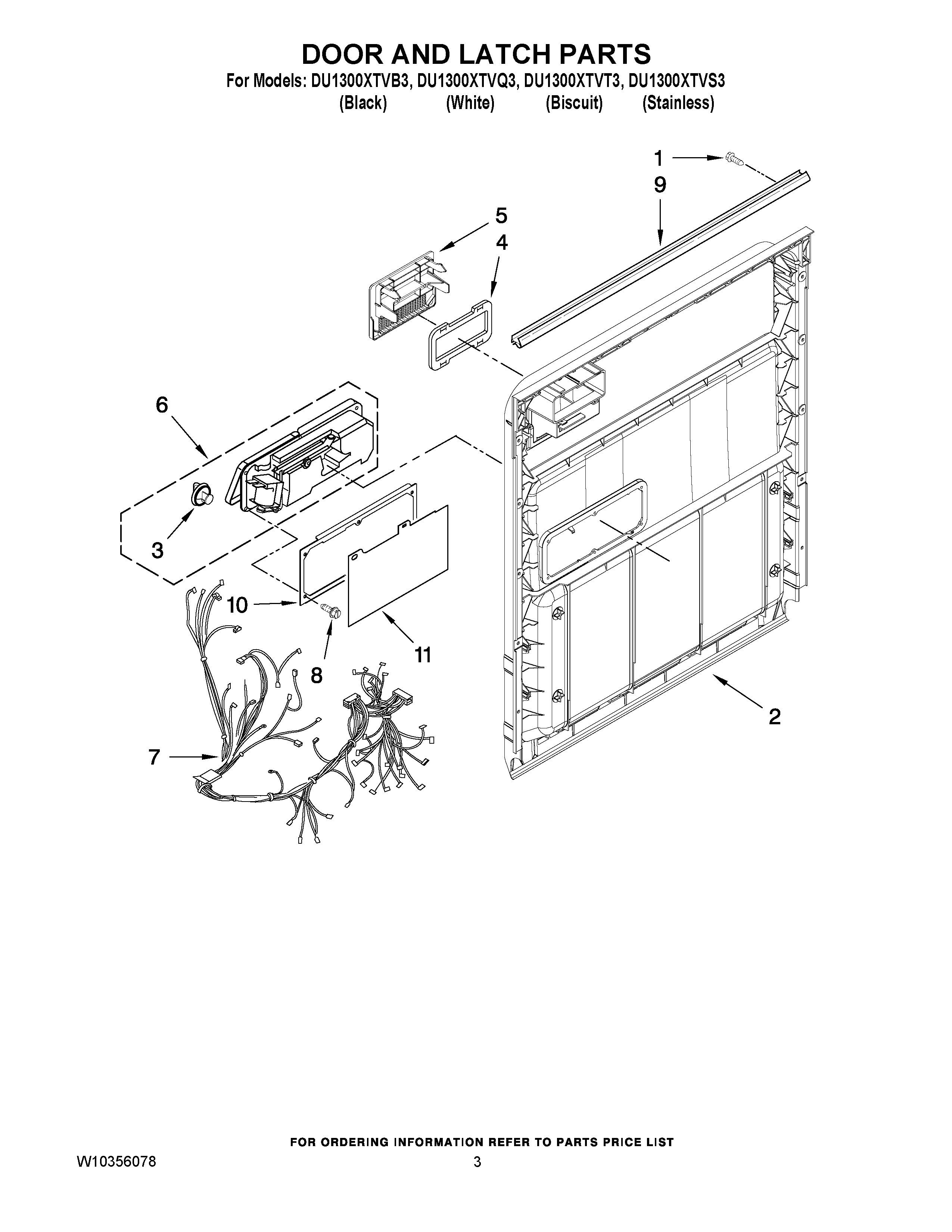

DU1300XTVB3 03 – DOOR AND LATCH PARTS

DU1300XTVB3 03 – DOOR AND LATCH PARTS

Written by

in

DU1300XTVB3 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WPW10254546 Whirlpool Dishwasher Inner Door
3WP8558307 Whirlpool Rinse Aid Dispenser Cap
4WPW10254545 Whirlpool Dishwasher Gasket
5WPW10254548 Whirlpool Dishwasher Deflector
6WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
7WIRING HARNESS MAIN
8WPW10177098 Whirlpool Dishwasher Screw
9WP8269296 Whirlpool Dishwasher Seal
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WP8531865 Whirlpool Dishwasher Door Shield
