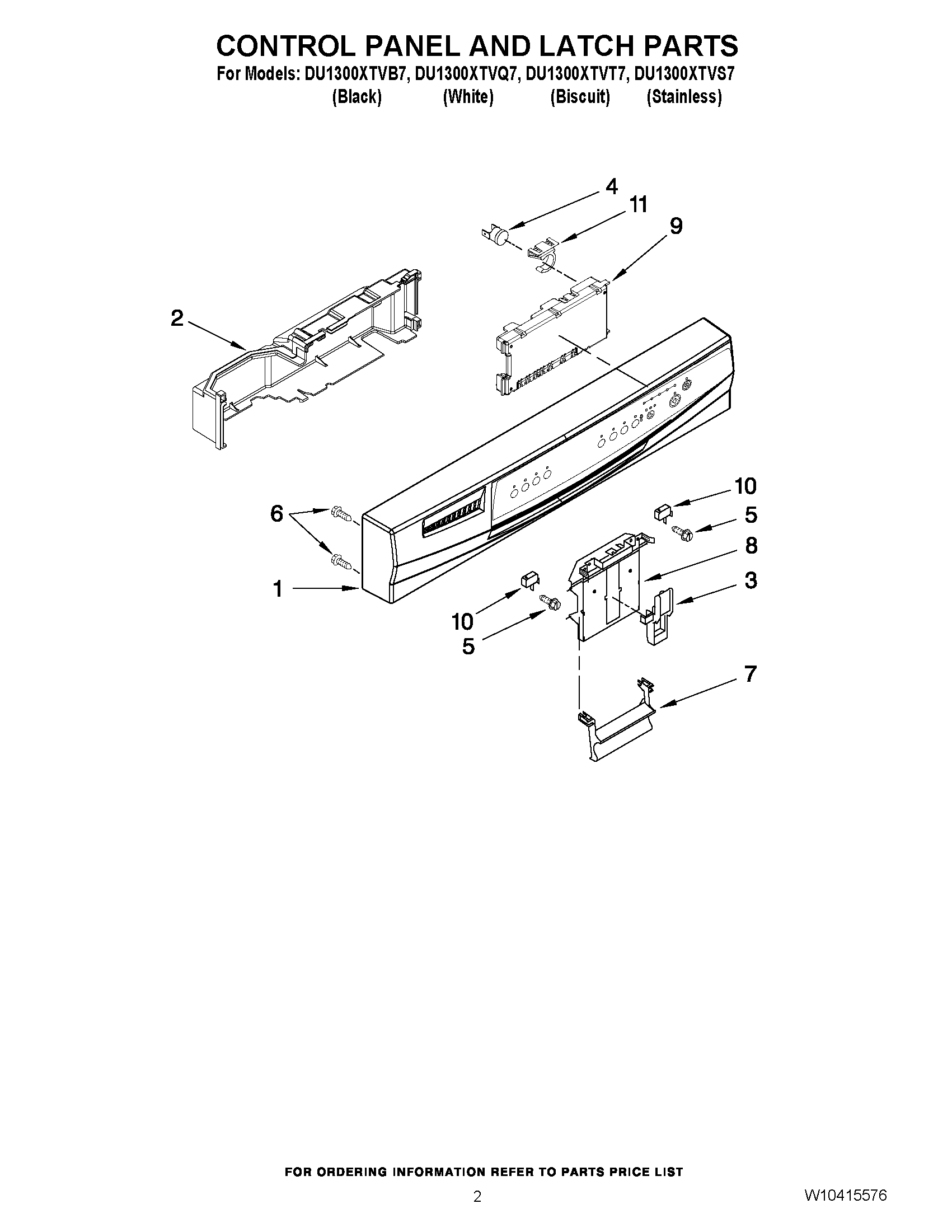

DU1300XTVB7 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	WPW10459139 Whirlpool Dishwasher Control Panel
1	WPW10459140 Whirlpool Dishwasher Control Panel
2	Cover Control Shield Assembly
3	WP8524471 Whirlpool Dishwasher Actuator
4	W10258275 Whirlpool Dishwasher Bimetal Fuse
5	WP3400412 Whirlpool Dishwasher Screw
6	WPW10348413 Whirlpool Dishwasher Screw
7	WP8534984 Whirlpool Dishwasher Handle
7	WP8534985 Whirlpool Dishwasher Handle
7	8534986 Whirlpool Dishwasher Handle
8	8193882 Whirlpool Dishwasher Primary Latch Bolt
9	WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
10	WP8269209 Whirlpool Door Switch
11	Clip, BI-Metal
