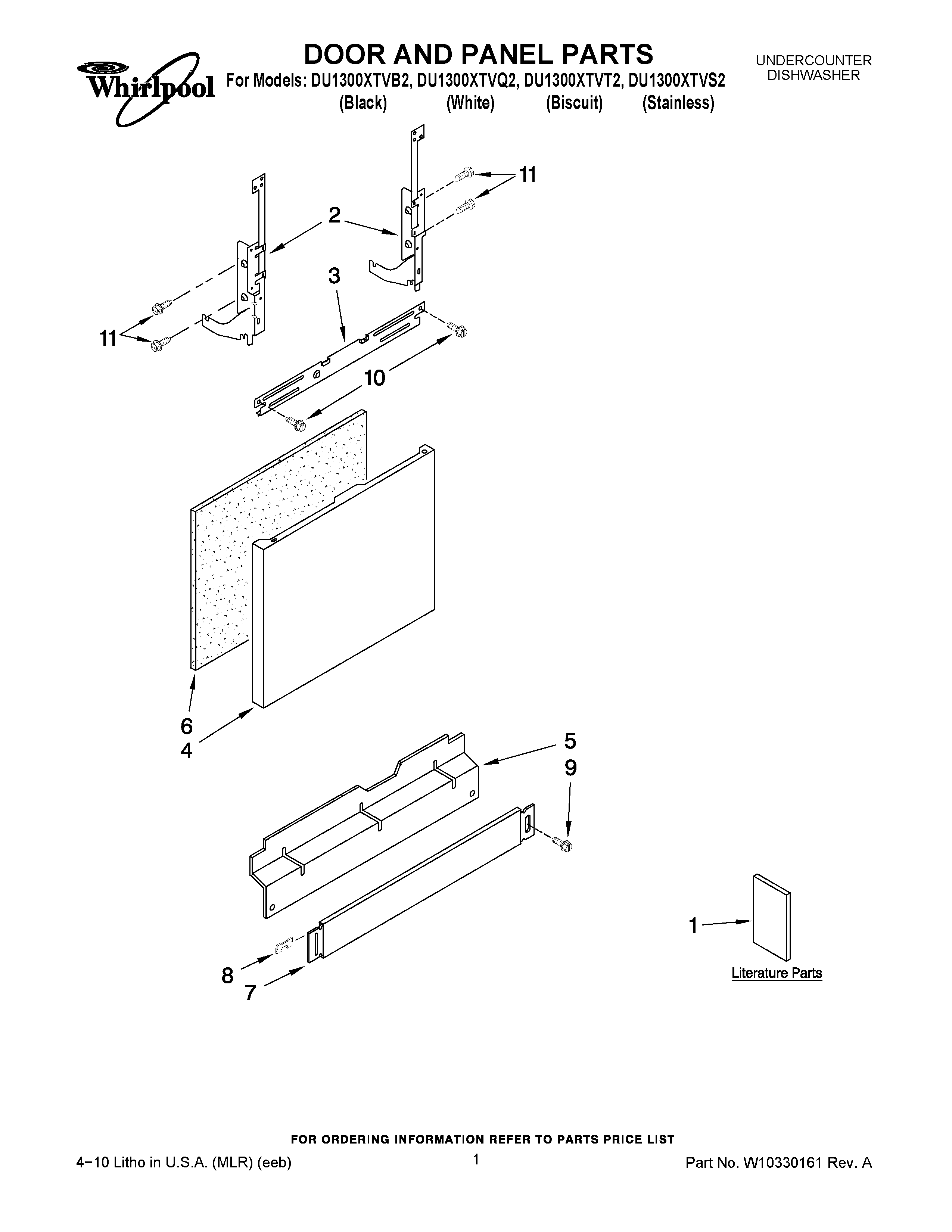

DU1300XTVQ2 01 – DOOR AND PANEL PARTS

DU1300XTVQ2 01 – DOOR AND PANEL PARTS

Written by

in

DU1300XTVQ2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1Guide, Use & Care (Spanish)
1Guide, Use & Care (English/French)
1INSTRUCTIONS, INSTALLATION
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10428852 Whirlpool Dishwasher Panel
4W10384707 Whirlpool Dishwasher Panel
4W10301571 Whirlpool Dishwasher Panel
4W10301577 Whirlpool Outer Door Panel
5W10909066 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7Toe Panel (Biscuit)
7WP8573287 Whirlpool Dishwasher Toe Panel
8WP8269016 Whirlpool Clip Assembly
9WPW10503549 Whirlpool Dishwasher Retainer Clip
9WPW10503550 Whirlpool Dishwasher Retainer
9WP302868 Whirlpool Screw
10SCREW
11WPW10109200 Whirlpool Screw
