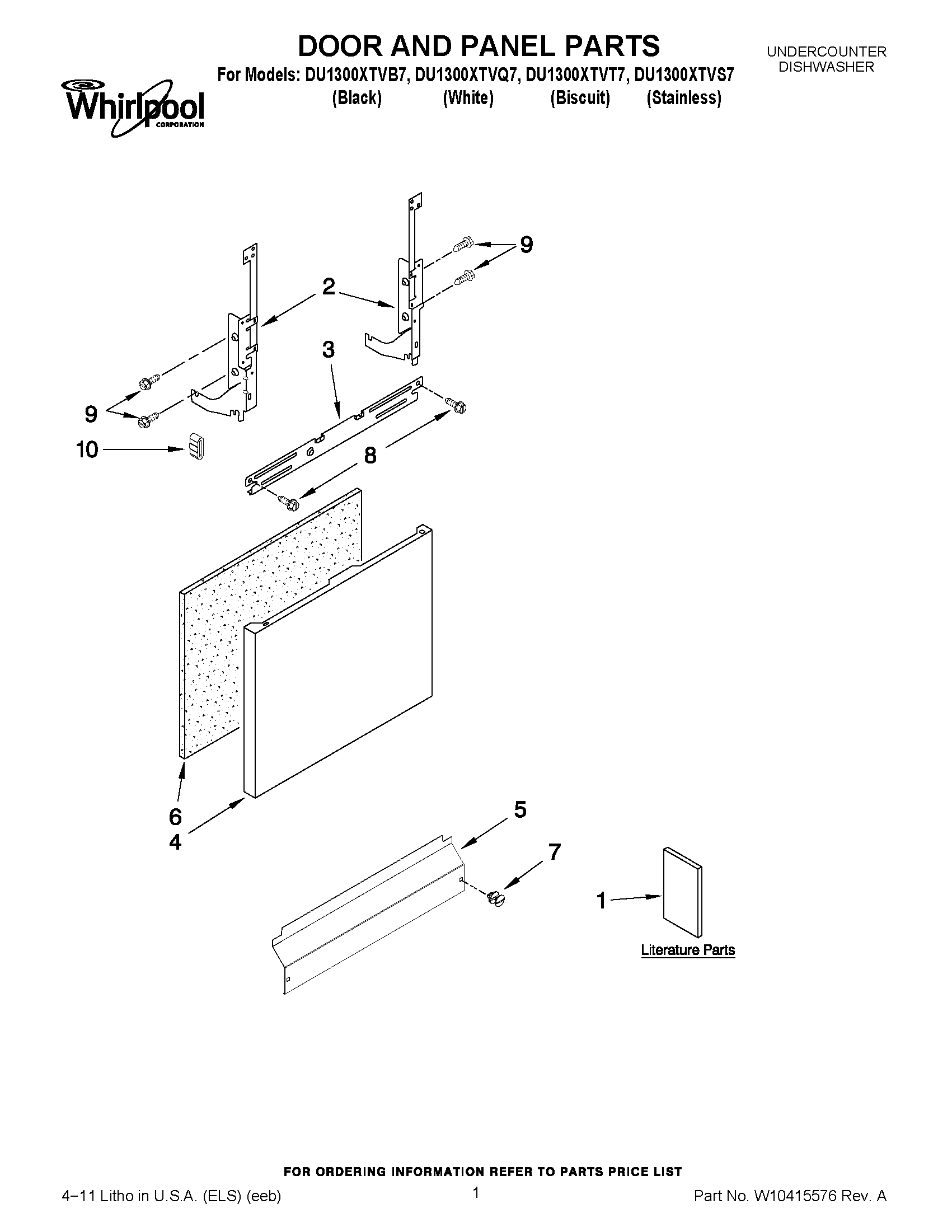

DU1300XTVS7 01 – DOOR AND PANEL PARTS

DU1300XTVS7 01 – DOOR AND PANEL PARTS

Written by

in

DU1300XTVS7 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care (Spanish)
1Guide, Use & Care (English/French)
1INSTRUCTIONS, INSTALLATION
1INSTRUCTIONS, INSTALLATION (ENERGY GUIDE)
1Tech Sheet
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10274897 Whirlpool Dishwasher Panel
4WPW10274902 Whirlpool Dishwasher Control Panel
4WPW10274895 Whirlpool Dishwasher Panel
4WPW10274896 Whirlpool Dishwasher Panel
5PANEL
5ACCESS PANEL (BISCUIT)
5WPW10441007 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WPW10503550 Whirlpool Dishwasher Retainer
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7WPW10503549 Whirlpool Dishwasher Retainer Clip
8SCREW
9WPW10109200 Whirlpool Screw
10WP8268961 Whirlpool Friction Pad
