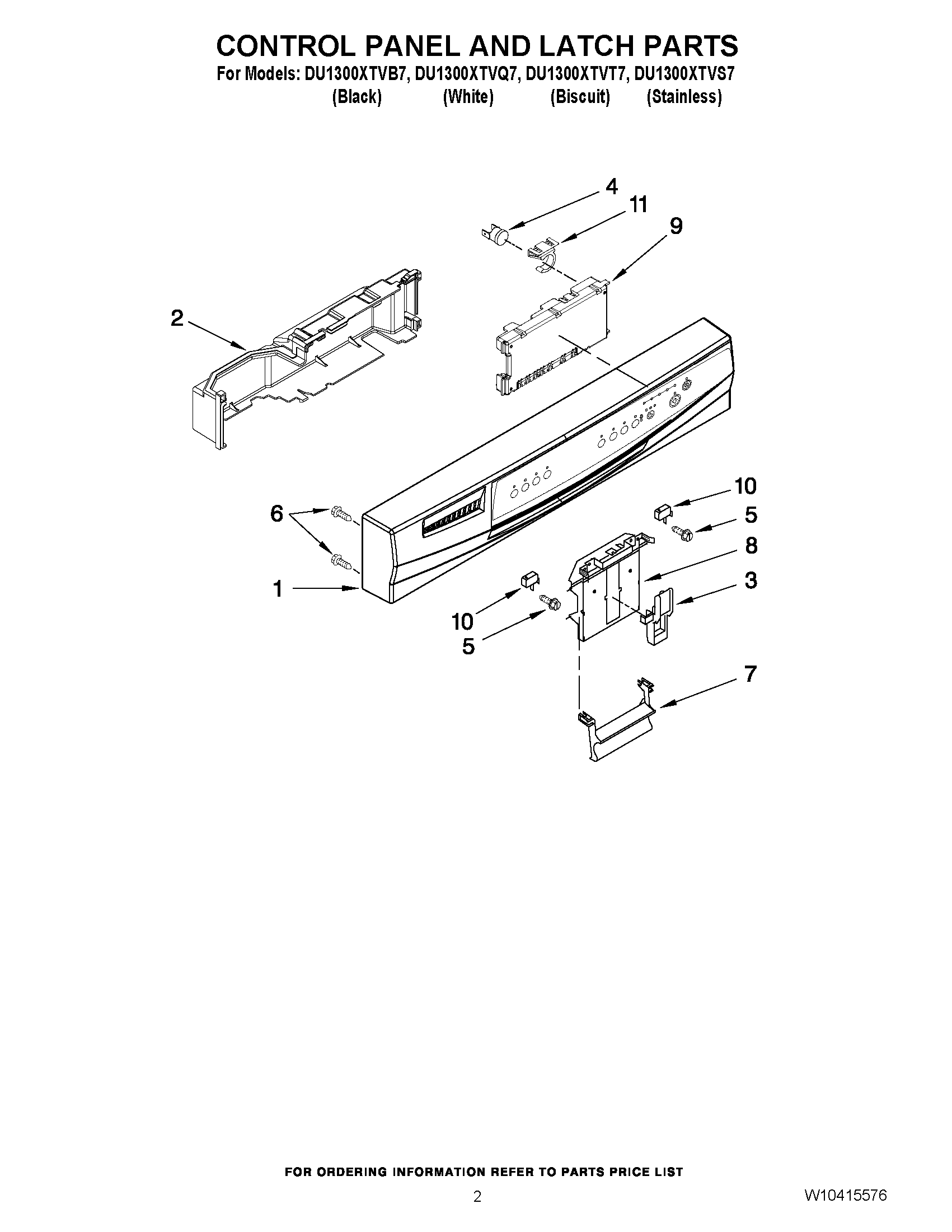

DU1300XTVS7 02 – CONTROL PANEL AND LATCH PARTSadmin2025-04-26T11:05:53+00:00DU1300XTVS7 02 – CONTROL PANEL AND LATCH PARTS ProductsPositionProduct1WPW10459139 Whirlpool Dishwasher Control Panel1WPW10459140 Whirlpool Dishwasher Control Panel2Cover Control Shield Assembly3WP8524471 Whirlpool Dishwasher Actuator4W10258275 Whirlpool Dishwasher Bimetal Fuse5WP3400412 Whirlpool Dishwasher Screw6WPW10348413 Whirlpool Dishwasher Screw7WP8534984 Whirlpool Dishwasher Handle7WP8534985 Whirlpool Dishwasher Handle78534986 Whirlpool Dishwasher Handle88193882 Whirlpool Dishwasher Primary Latch Bolt9WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core10WP8269209 Whirlpool Door Switch11Clip, BI-Metal
