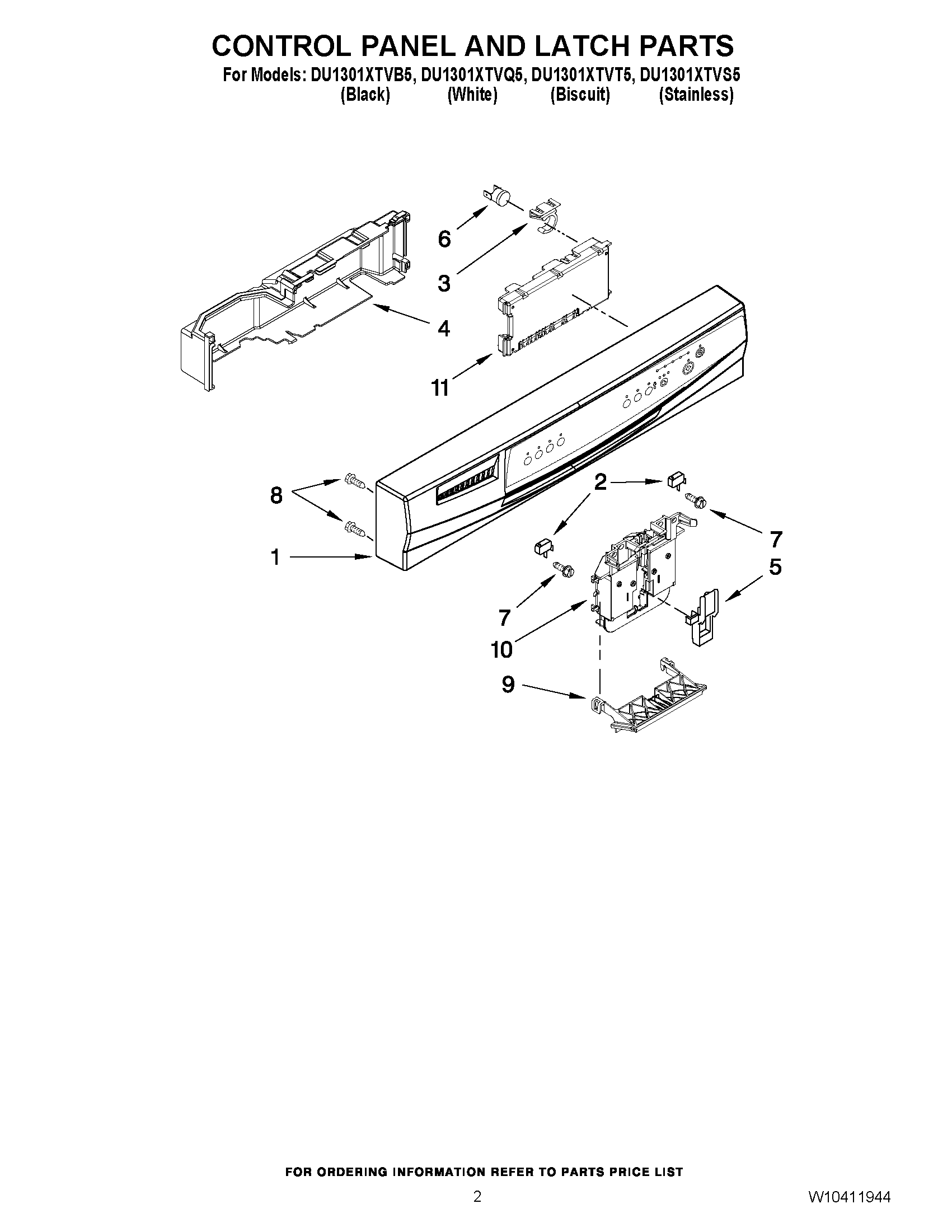

DU1301XTVB5 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	Console Assembly (Includes Active Overlay & Insert) (Biscuit)
1	Console Assembly (Includes Active Overlay & Insert) (White)
1	Console Assembly (Includes Active Overlay & Insert) (Black)
2	WP8269209 Whirlpool Door Switch
3	Clip, BI-Metal
4	Cover Control Shield Assembly
5	WP8524471 Whirlpool Dishwasher Actuator
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
7	WP3400412 Whirlpool Dishwasher Screw
8	WPW10348413 Whirlpool Dishwasher Screw
9	WP8534984 Whirlpool Dishwasher Handle
9	WP8534985 Whirlpool Dishwasher Handle
9	8534986 Whirlpool Dishwasher Handle
10	8193882 Whirlpool Dishwasher Primary Latch Bolt
11	WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
