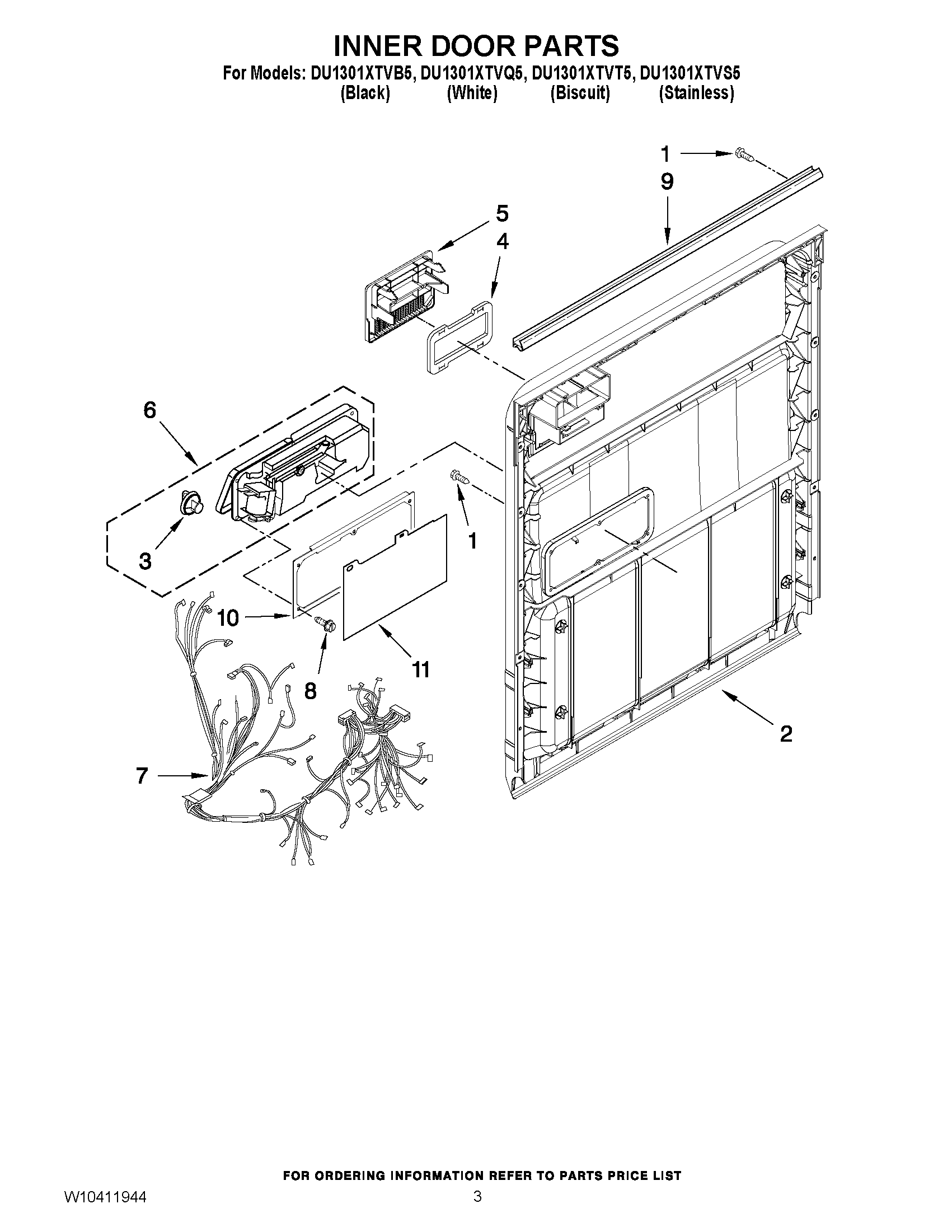

DU1301XTVB5 03 – INNER DOOR PARTS

Products

Position	Product
1	WPW10348413 Whirlpool Dishwasher Screw
2	WPW10254546 Whirlpool Dishwasher Inner Door
3	WP8558307 Whirlpool Rinse Aid Dispenser Cap
4	WPW10254545 Whirlpool Dishwasher Gasket
5	WPW10254548 Whirlpool Dishwasher Deflector
6	WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
7	WIRING HARNESS MAIN
8	WPW10177098 Whirlpool Dishwasher Screw
9	WP8269296 Whirlpool Dishwasher Seal
10	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11	WP8531865 Whirlpool Dishwasher Door Shield
