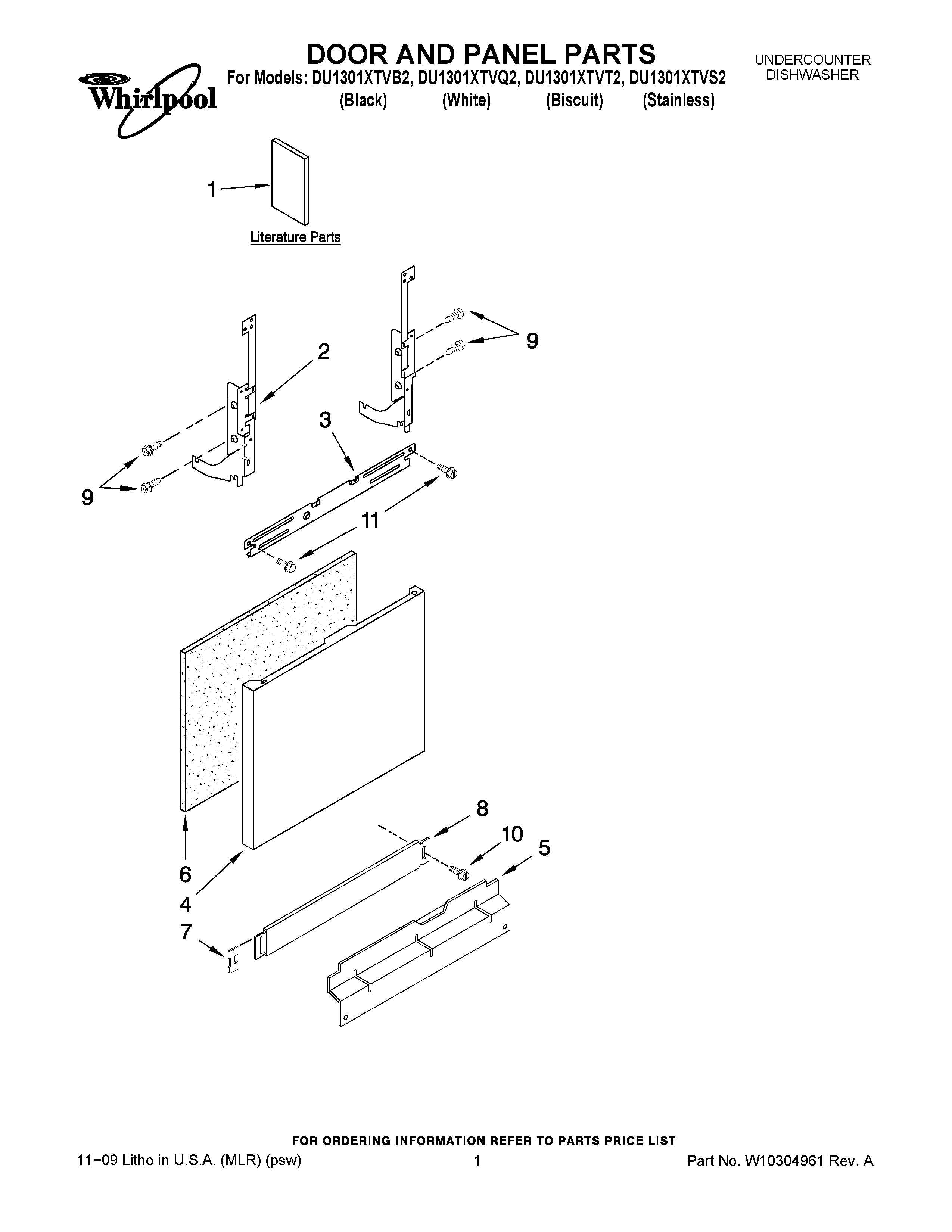

DU1301XTVS2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	Guide, Use & Care (Spanish)
1	Guide, Use & Care (English/French)
1	Instructions, Installation
1	Tech Sheet
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	Panel Front (White)
4	W10384707 Whirlpool Dishwasher Panel
4	W10301577 Whirlpool Outer Door Panel
4	W10301571 Whirlpool Dishwasher Panel
5	W10909066 Whirlpool Dishwasher Panel
5	W10871198 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
7	WP8269016 Whirlpool Clip Assembly
8	WP8573287 Whirlpool Dishwasher Toe Panel
8	Toe Panel (Biscuit)
9	WPW10109200 Whirlpool Screw
10	WPW10503550 Whirlpool Dishwasher Retainer
10	WP302868 Whirlpool Screw
10	WPW10503549 Whirlpool Dishwasher Retainer Clip
11	SCREW
