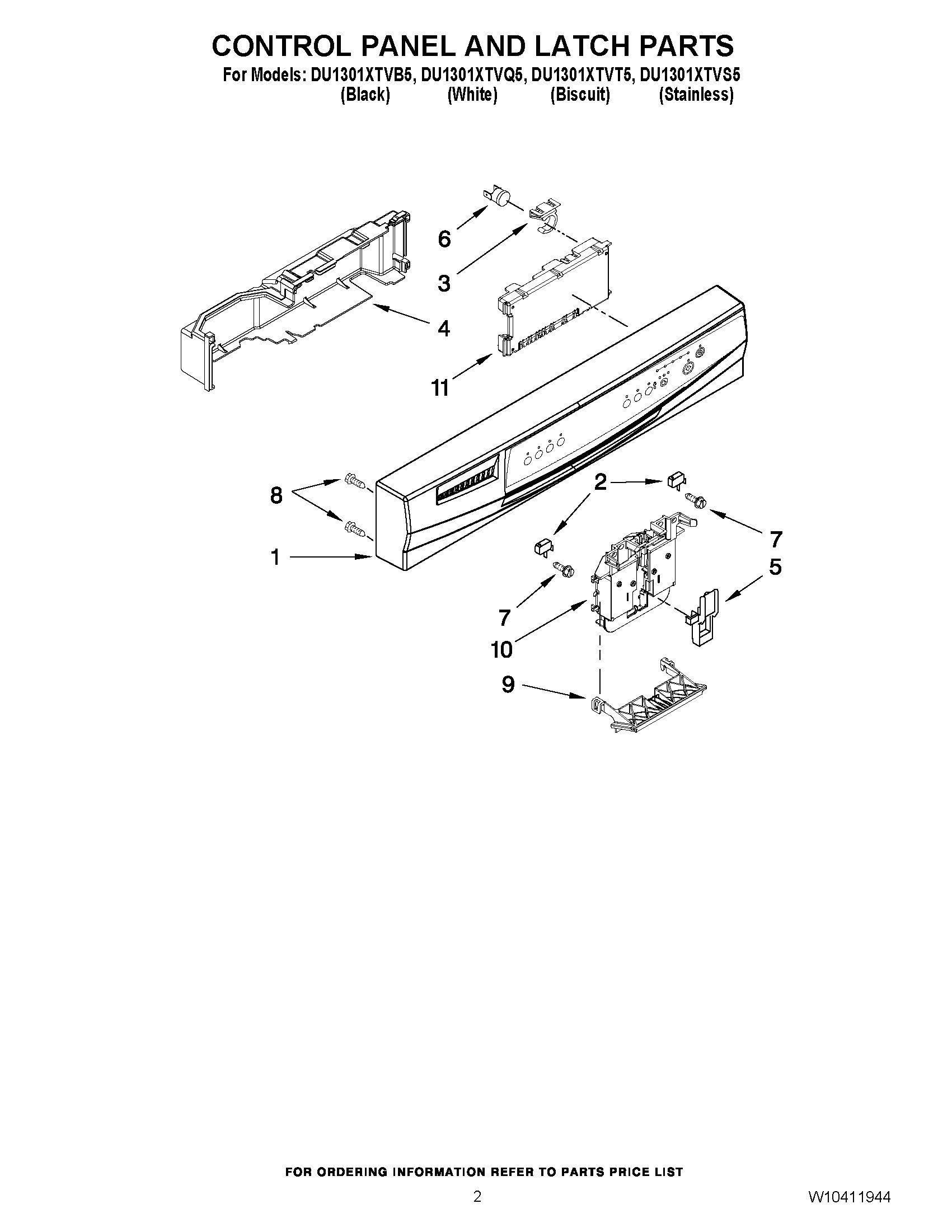

DU1301XTVT5 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1Console Assembly (Includes Active Overlay & Insert) (Biscuit)
1Console Assembly (Includes Active Overlay & Insert) (White)
1Console Assembly (Includes Active Overlay & Insert) (Black)
2WP8269209 Whirlpool Door Switch
3Clip, BI-Metal
4Cover Control Shield Assembly
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WP3400412 Whirlpool Dishwasher Screw
8WPW10348413 Whirlpool Dishwasher Screw
9WP8534984 Whirlpool Dishwasher Handle
9WP8534985 Whirlpool Dishwasher Handle
98534986 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
