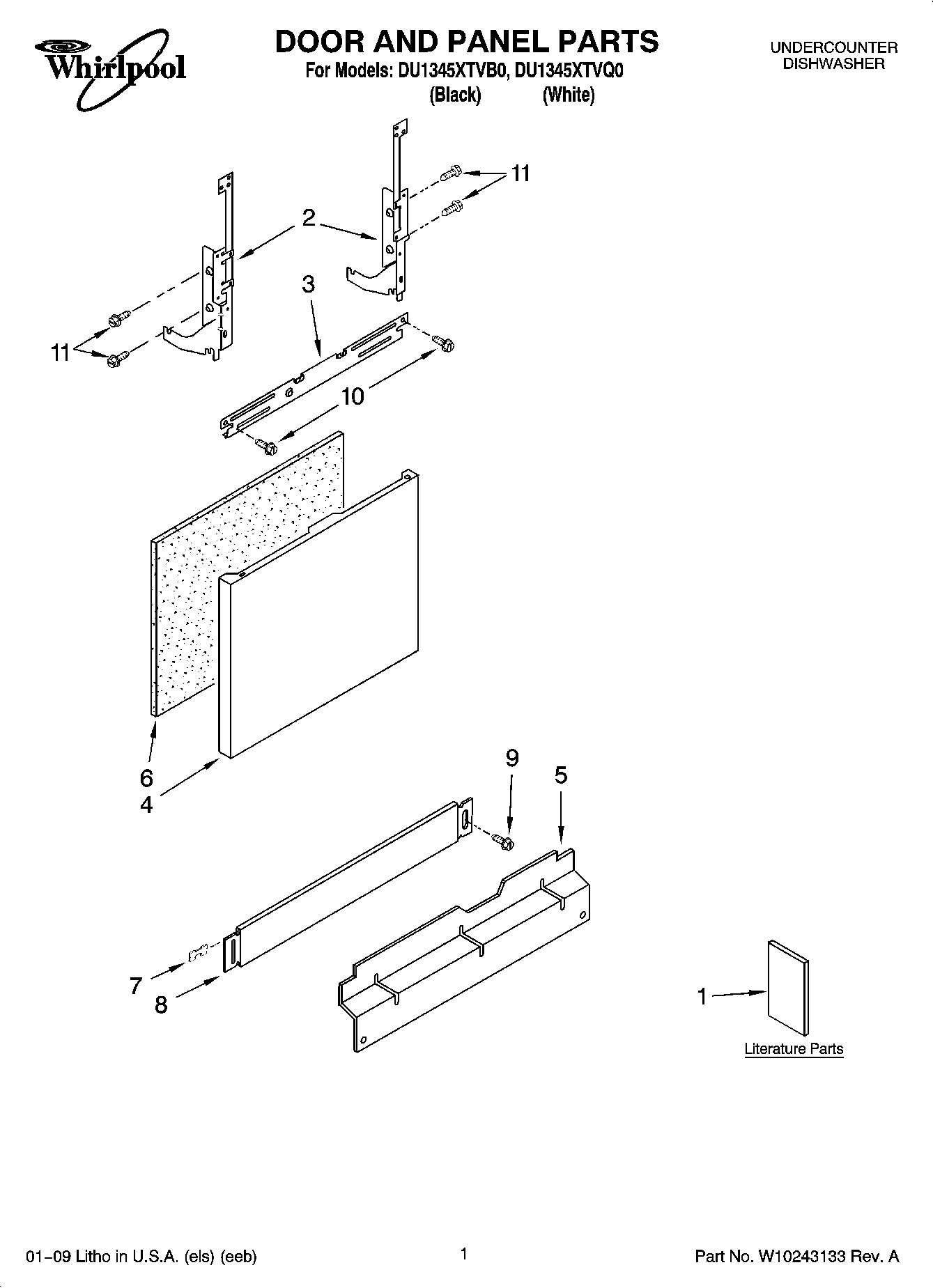

DU1345XTVB0 01 – DOOR AND PANEL PARTS

DU1345XTVB0 01 – DOOR AND PANEL PARTS

Written by

in

DU1345XTVB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Guide, Use & Care (Spanish)
1Guide, Use & Care (English/French)
1Instructions, Installation
1Tech Sheet
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10301571 Whirlpool Dishwasher Panel
4Panel Front (White)
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WP8269016 Whirlpool Clip Assembly
8WP8573287 Whirlpool Dishwasher Toe Panel
9WP302868 Whirlpool Screw
9WPW10503549 Whirlpool Dishwasher Retainer Clip
10SCREW
11WPW10109200 Whirlpool Screw
