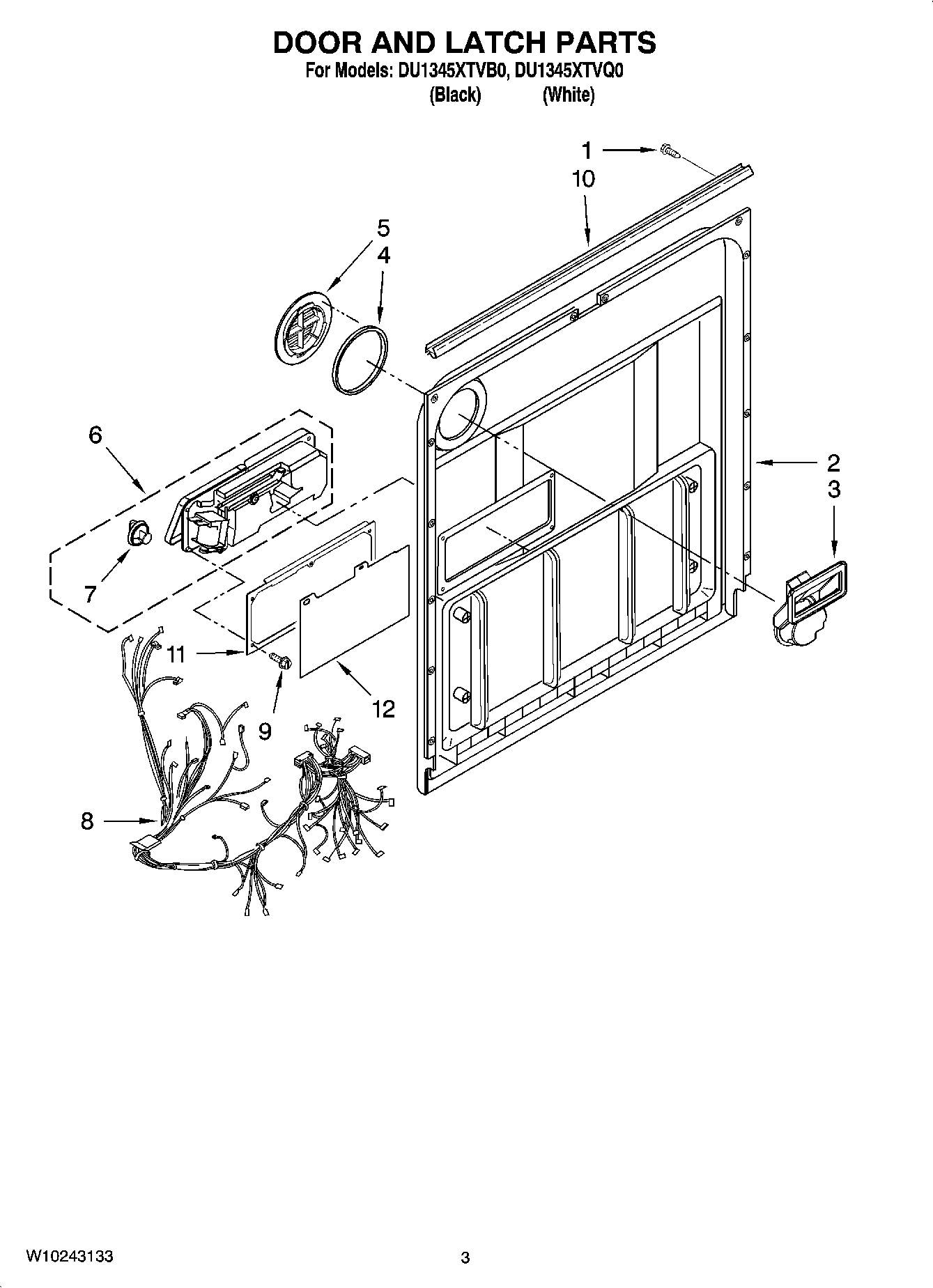

DU1345XTVB0 03 – DOOR AND LATCH PARTS

DU1345XTVB0 03 – DOOR AND LATCH PARTS

Written by

in

DU1345XTVB0 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WP8269311 Whirlpool Dishwasher Inner Door
3WP8558980 Whirlpool Dishwasher Vent
4WP8269259 Whirlpool Air Vent Gasket
5Deflector, Vent (Also Order Item 6)
6WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
7WP8558307 Whirlpool Rinse Aid Dispenser Cap
8Wiring Harness Main
9WPW10177098 Whirlpool Dishwasher Screw
10WP8269296 Whirlpool Dishwasher Seal
11WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
12WP8531865 Whirlpool Dishwasher Door Shield
