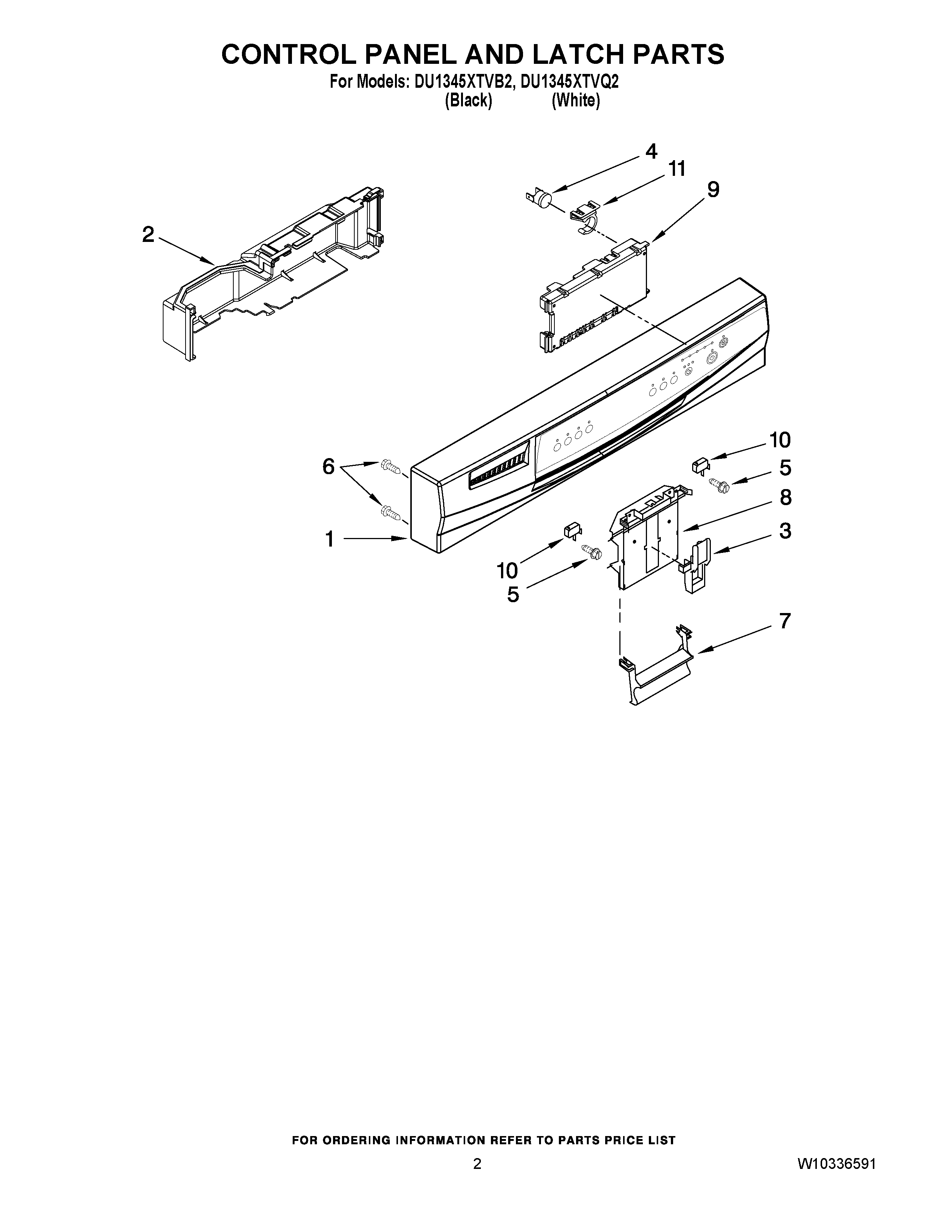

DU1345XTVB2 02 – CONTROL PANEL AND LATCH PARTSadmin2025-04-26T11:02:27+00:00DU1345XTVB2 02 – CONTROL PANEL AND LATCH PARTS ProductsPositionProduct1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)2Cover Control Shield Assembly3WP8524471 Whirlpool Dishwasher Actuator4W10258275 Whirlpool Dishwasher Bimetal Fuse5WP3400412 Whirlpool Dishwasher Screw6WPW10348413 Whirlpool Dishwasher Screw7WP8534985 Whirlpool Dishwasher Handle7WP8534984 Whirlpool Dishwasher Handle88193882 Whirlpool Dishwasher Primary Latch Bolt9WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core10WP8269209 Whirlpool Door Switch11Clip, BI-Metal
