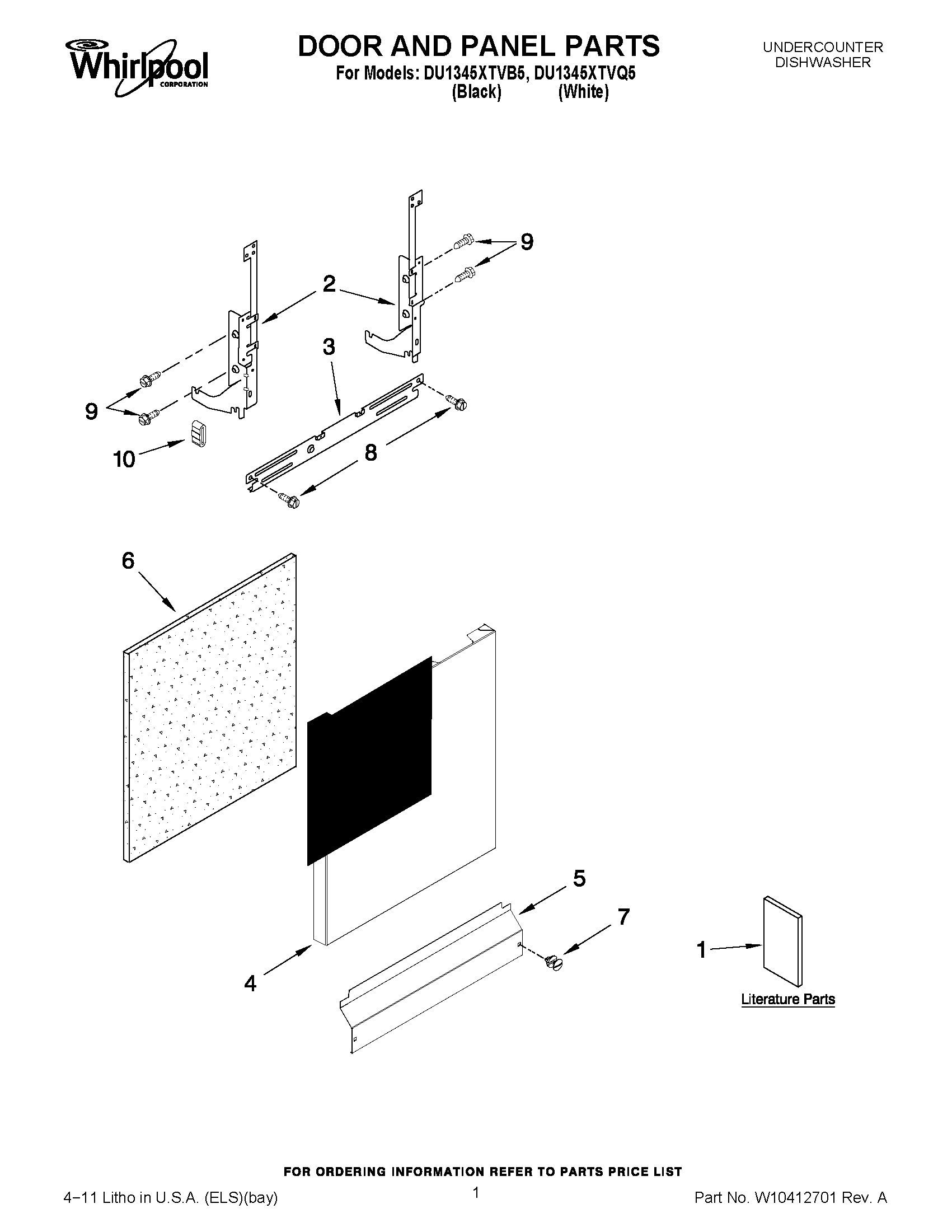

DU1345XTVQ5 01 – DOOR AND PANEL PARTS

DU1345XTVQ5 01 – DOOR AND PANEL PARTS

Written by

in

DU1345XTVQ5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care (Spanish)
1Guide, Use & Care (English/French)
1INSTRUCTIONS, INSTALLATION (ENERGY GUIDE)
1INSTRUCTIONS, INSTALLATION
1Tech Sheet
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10274895 Whirlpool Dishwasher Panel
4WPW10274896 Whirlpool Dishwasher Panel
5WPW10441007 Whirlpool Dishwasher Panel
5PANEL
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7WPW10503549 Whirlpool Dishwasher Retainer Clip
8SCREW
9WPW10109200 Whirlpool Screw
10WP8268961 Whirlpool Friction Pad
