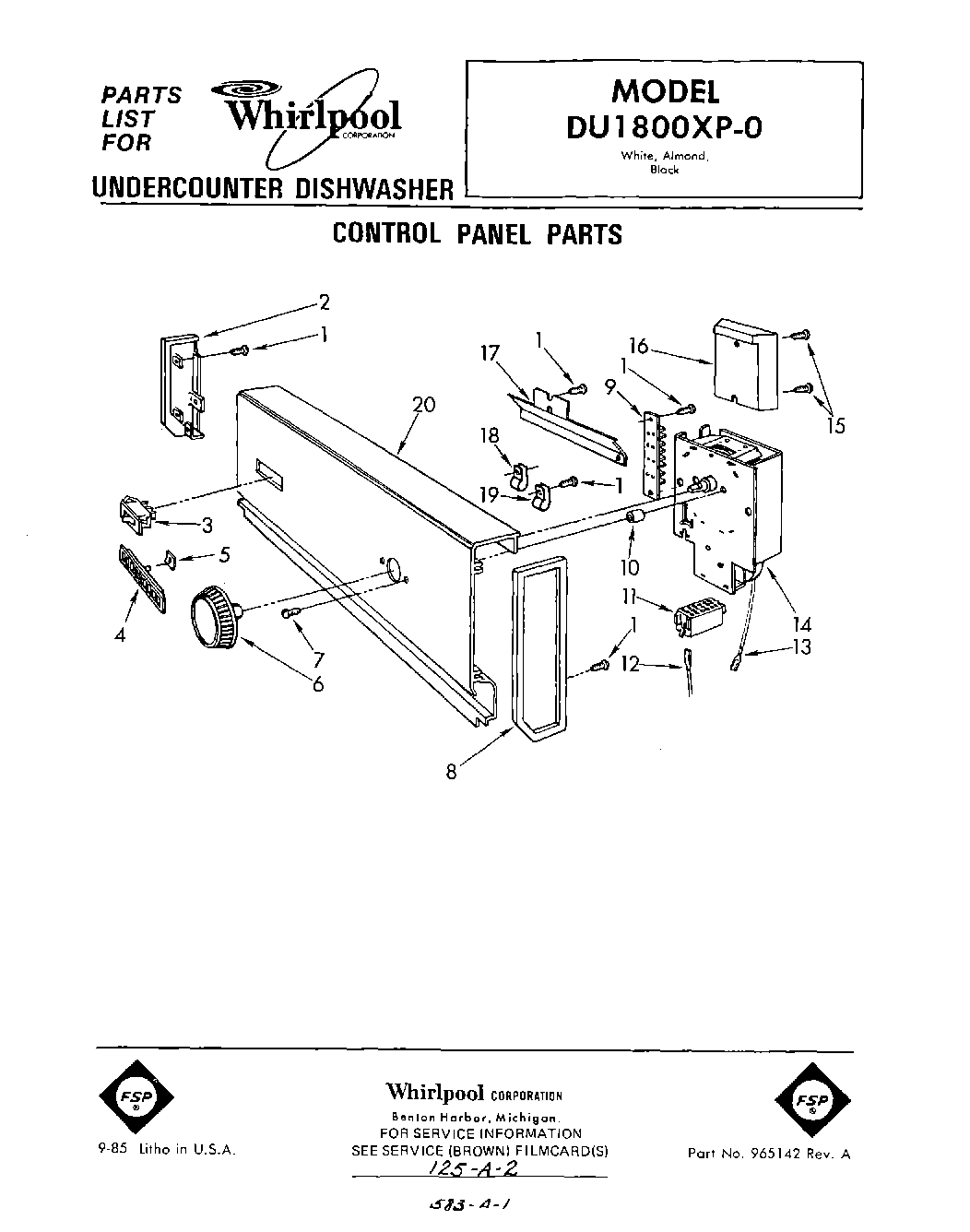

DU1800XP0 01 – CONTROL PANEL

Products

Position	Product
1	Screw, 8 x 7/16 Phlps. Pan Hd.
2	End Cap, L.H.
3	WP4314961 Whirlpool Lite Switch
4	Vent Grille
5	Speednut
6	Timer Knob
7	Screw, 10-32 x 1-1/4 Phlps. Truss Hd. (2)
8	End Cap, R.H.
9	Terminal Board
10	Spacer (2)
11	Block, Timer (Black)
12	Terminal, Housing
13	Terminal, Timer
14	Timer
15	WP355214 Whirlpool Screw
16	Splash Pan
17	Shield, Vent Slot
18	Clamp, Wire
19	Clamp, Wire
20	Console Panel
