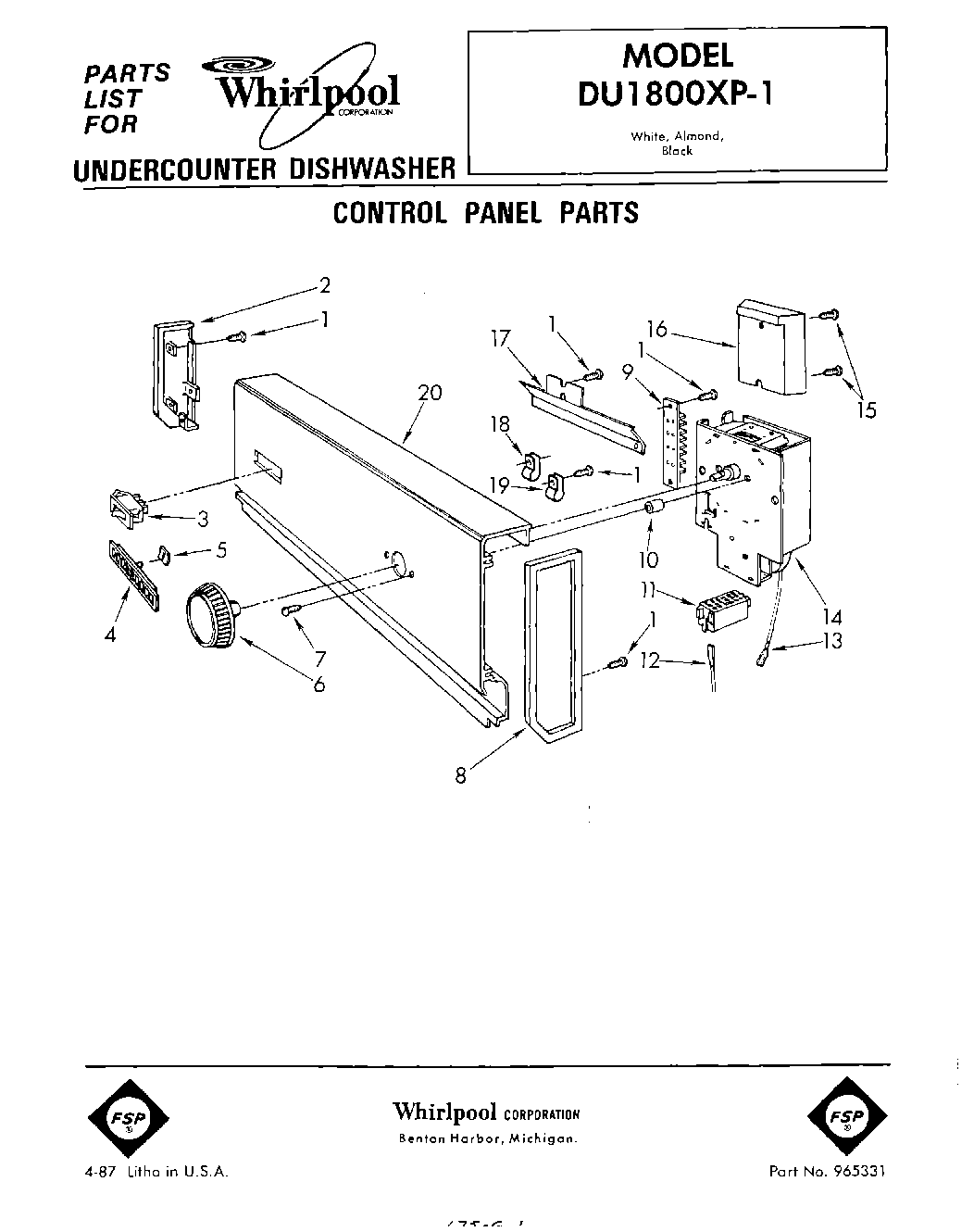

DU1800XP1 01 – CONTROL PANEL

Products

PositionProduct
1Screw, 8 x 7/16 Phlps. Pan Hd.
2End Cap, L.H.
3WP4314961 Whirlpool Lite Switch
4Vent Grille
5Speednut
6Timer Knob
7Screw, 10-32 x 1-1/4 Phlps. Truss Hd. (2)
8End Cap, R.H.
9Terminal Board
10Spacer (2)
11Block, Timer (Black)
12Terminal, Housing
13Terminal, Timer
14Timer
15WP355214 Whirlpool Screw
16Splash Pan
17Shield, Vent Slot
18Clamp, Wire
19Clamp, Wire
20Console Panel
