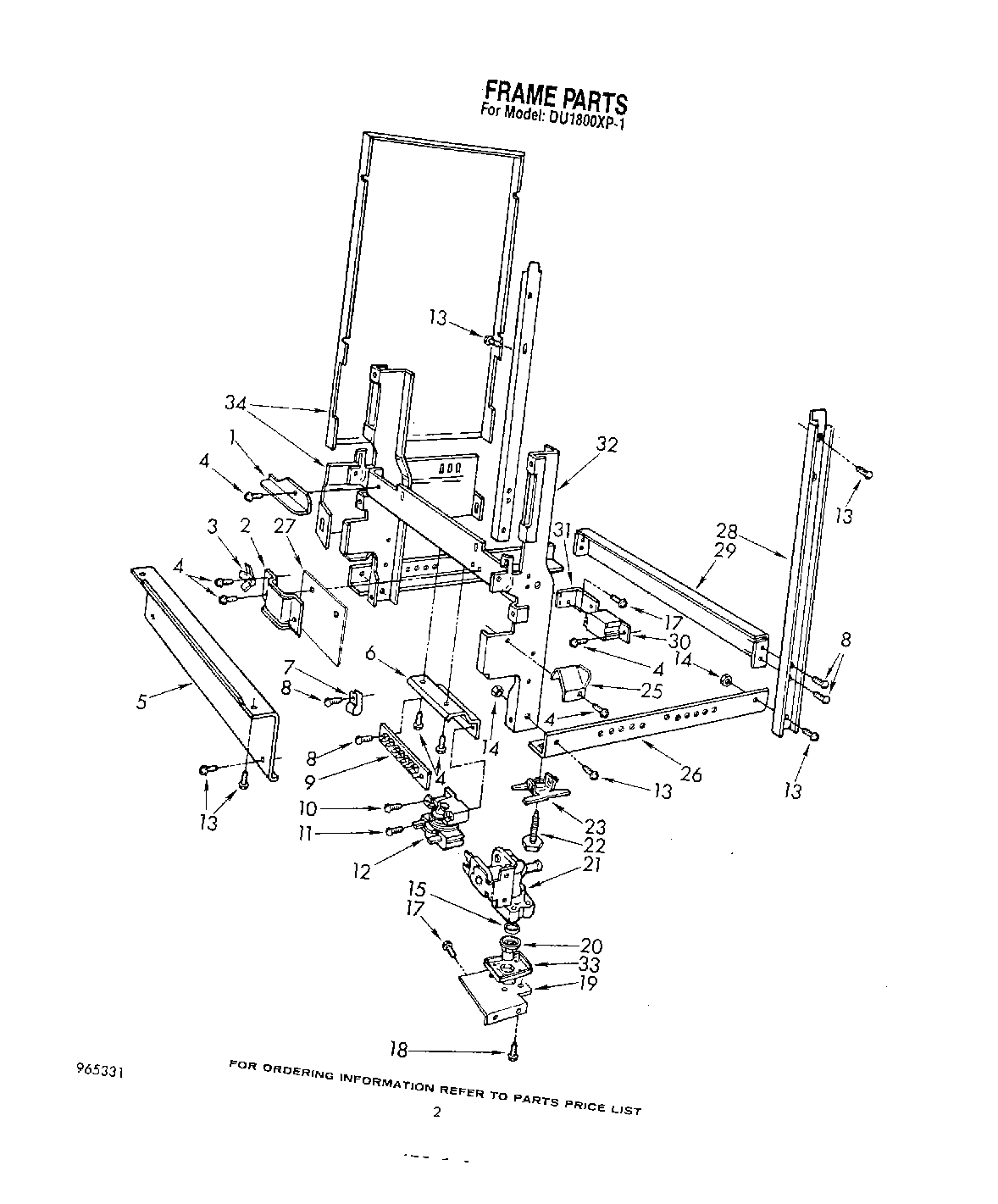

DU1800XP1 02 – FRAME , LITERATURE AND OPTIONALadmin2025-04-26T11:05:42+00:00DU1800XP1 02 – FRAME , LITERATURE AND OPTIONAL
Products
| Position | Product |
|---|
| 350956 Whirlpool Spray Assembly |
| WPL LIT965331 |
| Guide, Use & Care |
| Instructions, Installation |
| Kit, Epoxy Patch (White) |
| Vinyl Touch Up (Blue) |
| 285006 Whirlpool Spray |
| 350942 Whirlpool Spray Paint |
| Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks) |
| Leveler (Thinner) |
| 1 | Suds Deflector, L.H. |
| 2 | Clamp, Wiring |
| 3 | Terminal, Grounding |
| 4 | Screw, 8 x 3/8 |
| 5 | Toeplate |
| 6 | Terminal Bracket |
| 7 | Clamp, Wire |
| 8 | WP488729 Whirlpool Refrigerator Door Screw |
| 9 | Terminal Block |
| 10 | WP486579 Whirlpool Air Conditioner Screw |
| 11 | Screw, 8-32 x 1-1/4 |
| 12 | Motor Relay |
| 13 | Screw, 1/4-20 x 1/2 |
| 14 | WP487939 Whirlpool Refrigerator Nut |
| 15 | Gasket |
| 17 | SCREW |
| 18 | WP98165 Whirlpool Screw |
| 19 | Mounting Bracket |
| 20 | Fitting, Inlet Valve (Includes Illus. 15) |
| 21 | Valve, Inlet (Includes Illus. 15) |
| 22 | Levelers (4) |
| 23 | Teenut, Snap-In (4) |
| 25 | Suds Deflector, R.H. |
| 26 | Angle, Base (2) |
| 27 | Shield, Wire |
| 28 | Channel, Side (2) |
| 29 | Brace, Rear |
| 30 | Cover, Junction Box |
| 31 | Bracket, Junction Box |
| 32 | Hinge Weld Assembly |
| 33 | Fitting Retainer |
| 34 | Side Panel Kit (White) |
| 34 | Side Panel Kit (Coffee) |
| 34 | Side Panel Kit (Avocado) |
| 34 | Side Panel Kit (Almond) |
| 34 | Side Panel Kit (Wheat) |
