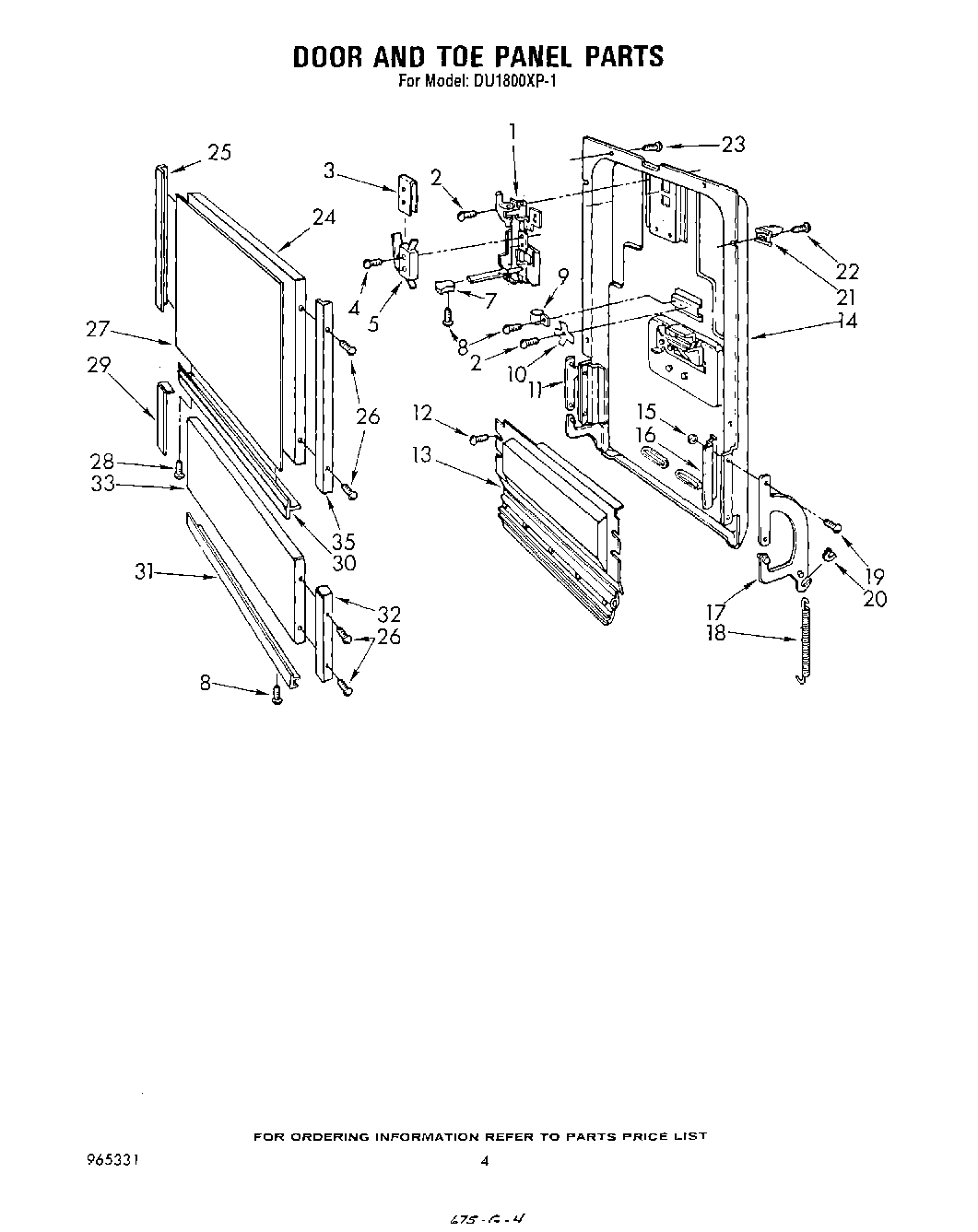

DU1800XP1 03 – DOOR AND TOE PANEL

Products

Position	Product
1	Latch Assembly
2	303776 Whirlpool Dishwasher Screw
3	Switch Cover
4	Screw, 6-32 x 1
5	Switch
7	Latch Knob
8	WP965173 Whirlpool Dishwasher Screw
9	Clamp, Wire
10	Terminal, Grounding
11	Counterbalance Arm, L.H.
13	Vent Plate
14	Door, Inner
15	W10080180 Whirlpool Nut
16	Bracket, Arm Mounting (2)
17	Counterbalance Arm, R.H.
18	Door Spring (2)
19	Screw, 10-24 x 5/8 Phlps. Truss Hd. (4)
20	Spring Pad (2)
21	Guide, Door (2)
22	W11693756 Whirlpool Screw Assembly
23	WP355214 Whirlpool Screw
24	Door Panel (White)
25	Trim, Door Side L.H.
26	Screw, 6 x 1/4
27	Door Panel Insert (Almond & Black)
28	WP488729 Whirlpool Refrigerator Door Screw
29	Trim, Access Panel L.H.
30	Door Trim, Bottom
31	Access Trim, Bottom
32	Trim, Access Panel R.H.
33	Access Panel (Brown)
35	Trim, Door Side R.H.
