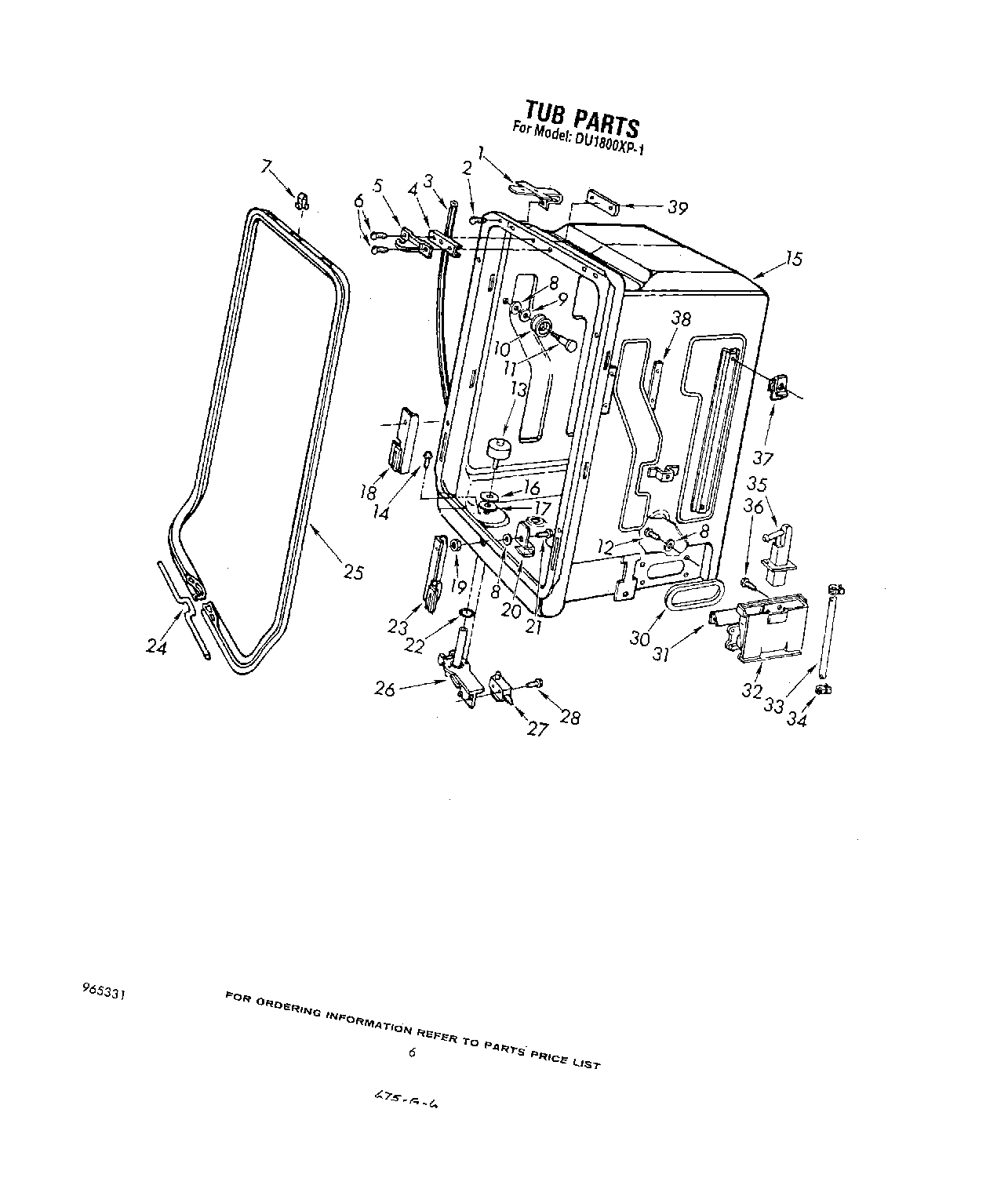

DU1800XP1 05 – TUB

Products

Position	Product
1	Attach Clip (2)
2	WP355214 Whirlpool Screw
3	Drain Hose
4	Shim
5	Strike
6	Screw, 10-24 x 3/4
7	Gasket Clip Kit (Includes Item 20)
8	Sealing Washer
9	Washer (8)
10	Roller (8)
11	Shoulder Screw (Includes 4 Ea. Illus. 8, 9 & 11)
12	Screw, 8 x 5/8 Phlps. Hex Hd. (4)
13	Float
14	Screw, 10 x 1 Hex Wash. Hd. St. Stl. (6)
15	Tub (Includes Illus. 25)
16	Float Tube Plate
17	Float Tube Gasket
18	Arm Guide, L.H.
19	WP486255 Whirlpool Air Conditioner Nut
20	Gasket Clip
21	Screw, 8-32 x 1/2
22	“O“ Ring
23	Arm Guide, R.H.
24	Wire, Gasket Junction
25	Gasket, Tub (Includes Illus. 7 & 24)
26	Float Assembly (Includes Items 16, 17, 22, 27 & 28)
27	627512 Whirlpool Refrigerator MICR Switch
28	Screw, 4-40 x 5/8 Hex Hd. (2)
30	Gasket, Inlet
31	Tapping Plate
32	Vent Stack
33	Tubing, Inlet (Includes Item 34)
34	Clamp (2)
35	Inlet Nozzle
36	WP488627 Whirlpool Refrigerator Screw
37	Cage Nut
38	Tapping Plate (4)
39	Latch plate
