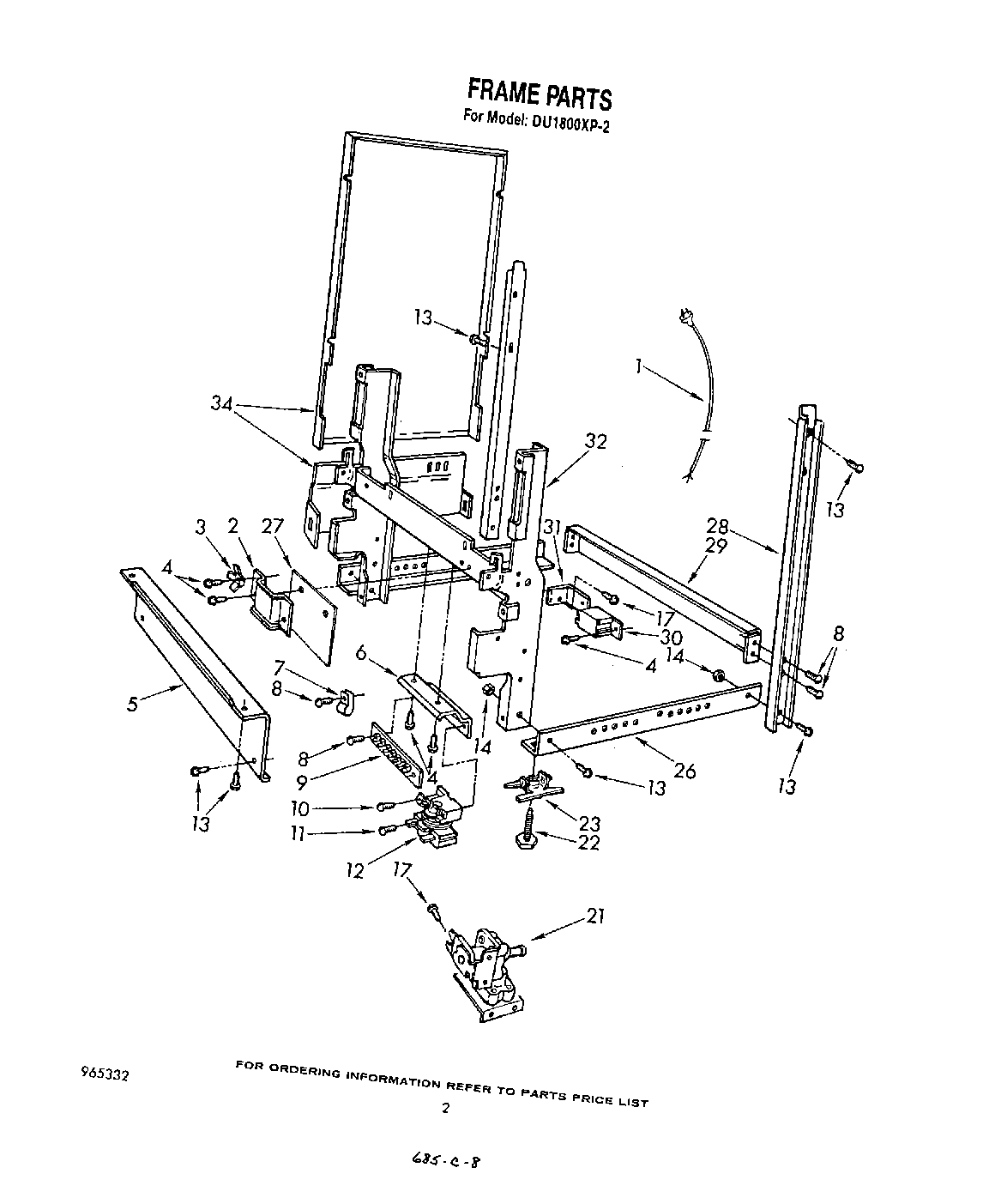

DU1800XP2 02 – FRAME , LITERATURE AND OPTIONAL

Products

Position	Product
	350956 Whirlpool Spray Assembly
	Instructions, Installation
	Kit, Epoxy Patch (White)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Vinyl Touch Up (Blue)
	Guide, Use & Care
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	List, Repair Parts
	Leveler (Thinner)
1	Power Cord (optional)
2	Clamp, Wiring
3	Terminal, Grounding
4	Screw, 8 x 3/8
5	Toeplate
6	Terminal Bracket
7	Clamp, Wire
8	WP488729 Whirlpool Refrigerator Door Screw
9	Terminal Block
10	WP486579 Whirlpool Air Conditioner Screw
11	Screw, 8-32 x 1-1/4
12	Motor Relay
13	Screw, 1/4-20 x 1/2
14	WP487939 Whirlpool Refrigerator Nut
17	SCREW
21	Valve, Inlet
22	Levelers (4)
23	Teenut, Snap-In (4)
26	Angle, Base (2)
27	Shield, Wire
28	Channel, Side (2)
29	Brace, Rear
30	Cover, Junction Box
31	Bracket, Junction Box
32	Hinge Weld Assembly
34	Side Panel Kit (White)
34	Side Panel Kit (Almond)
34	Side Panel Kit (Wheat)
34	Side Panel Kit (Avocado)
34	Side Panel Kit (Coffee)
