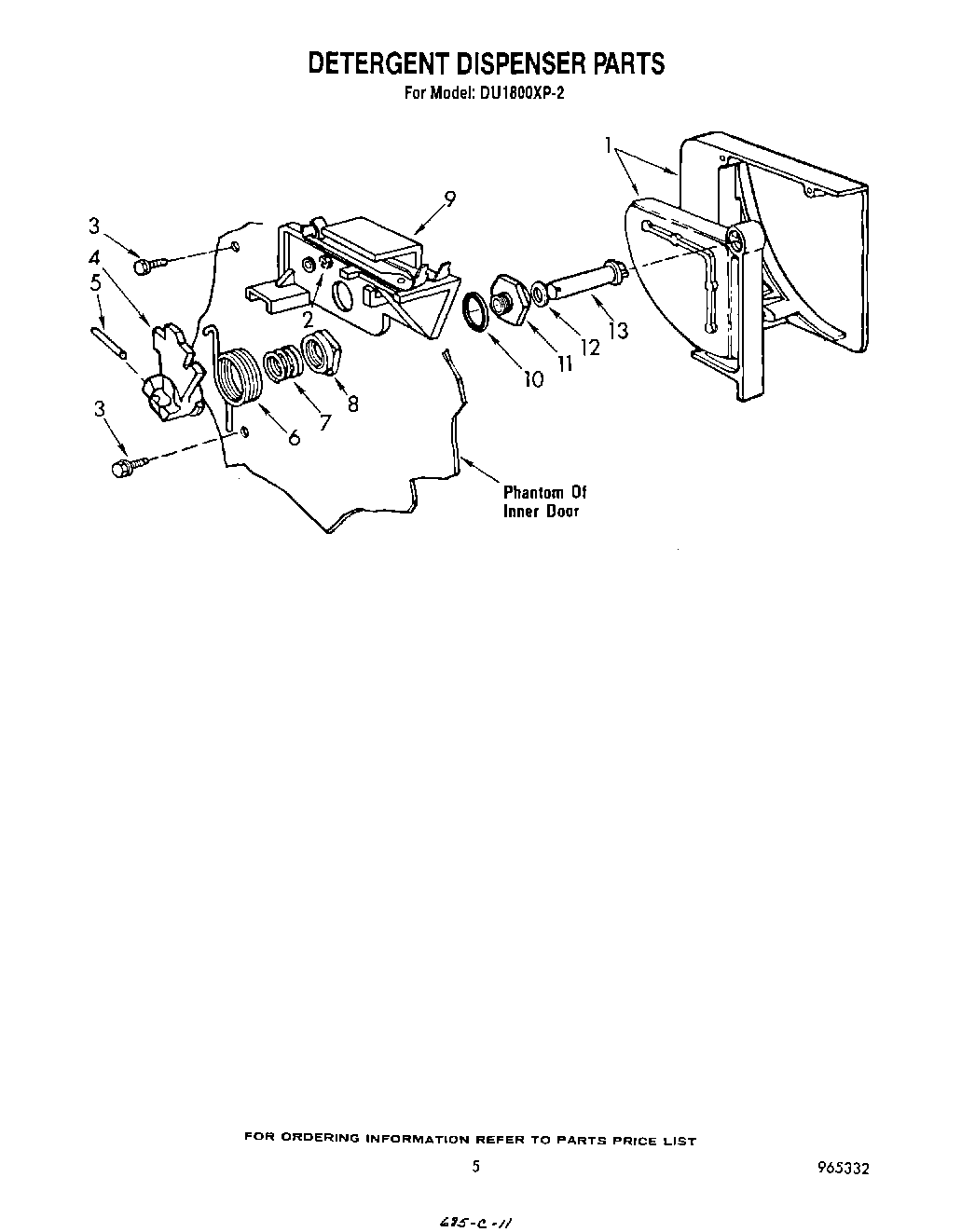

DU1800XP2 04 – DETERGENT DISPENSER

Products

Position	Product
1	Detergent Cup & Cover Kit
2	“O“ Ring
3	WP98165 Whirlpool Screw
4	Cam
5	Spiral Pin
6	Spring, Cam
7	Spring, Cam Compression
8	Nut
9	Trigger Assembly
10	Washer, Neoprene
11	Bushing
12	“O“ Ring
13	Shaft (Includes Items 5, 7, 8, 10, 11, 12 & 13)
