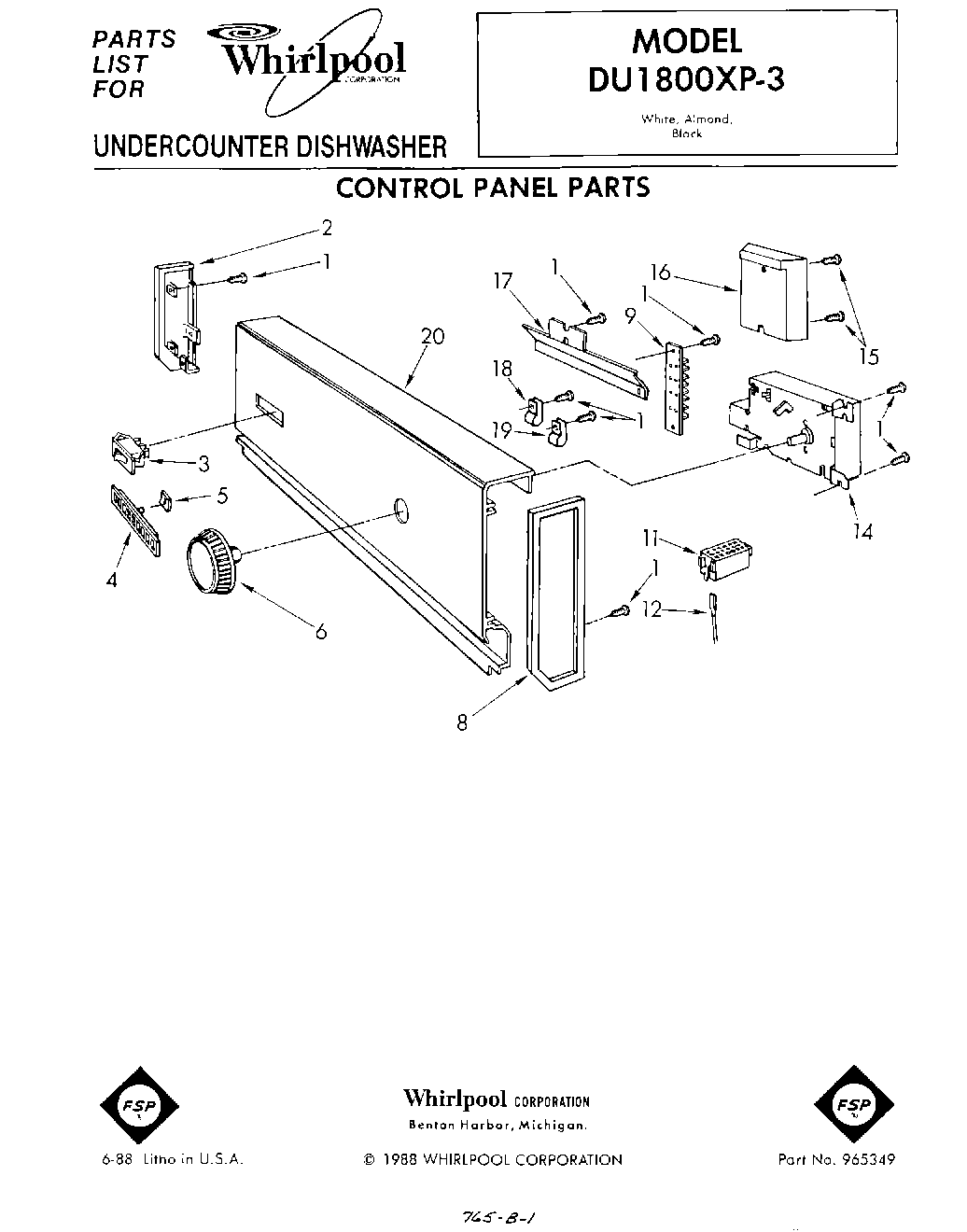

DU1800XP3 01 – CONTROL PANEL

Products

Position	Product
1	Screw, 8 x 7/16
2	End Cap, L.H.
3	WP4314961 Whirlpool Lite Switch
4	Vent Grille
5	Speednut
6	Timer Knob
8	End Cap, R.H.
9	Terminal Board
11	Block, Timer (Black)
12	Terminal, Housing
14	Timer
15	WP355214 Whirlpool Screw
16	Splash Pan
17	Shield, Vent Slot
18	Clamp, Wire
19	Clamp, Wire
20	Console Panel
