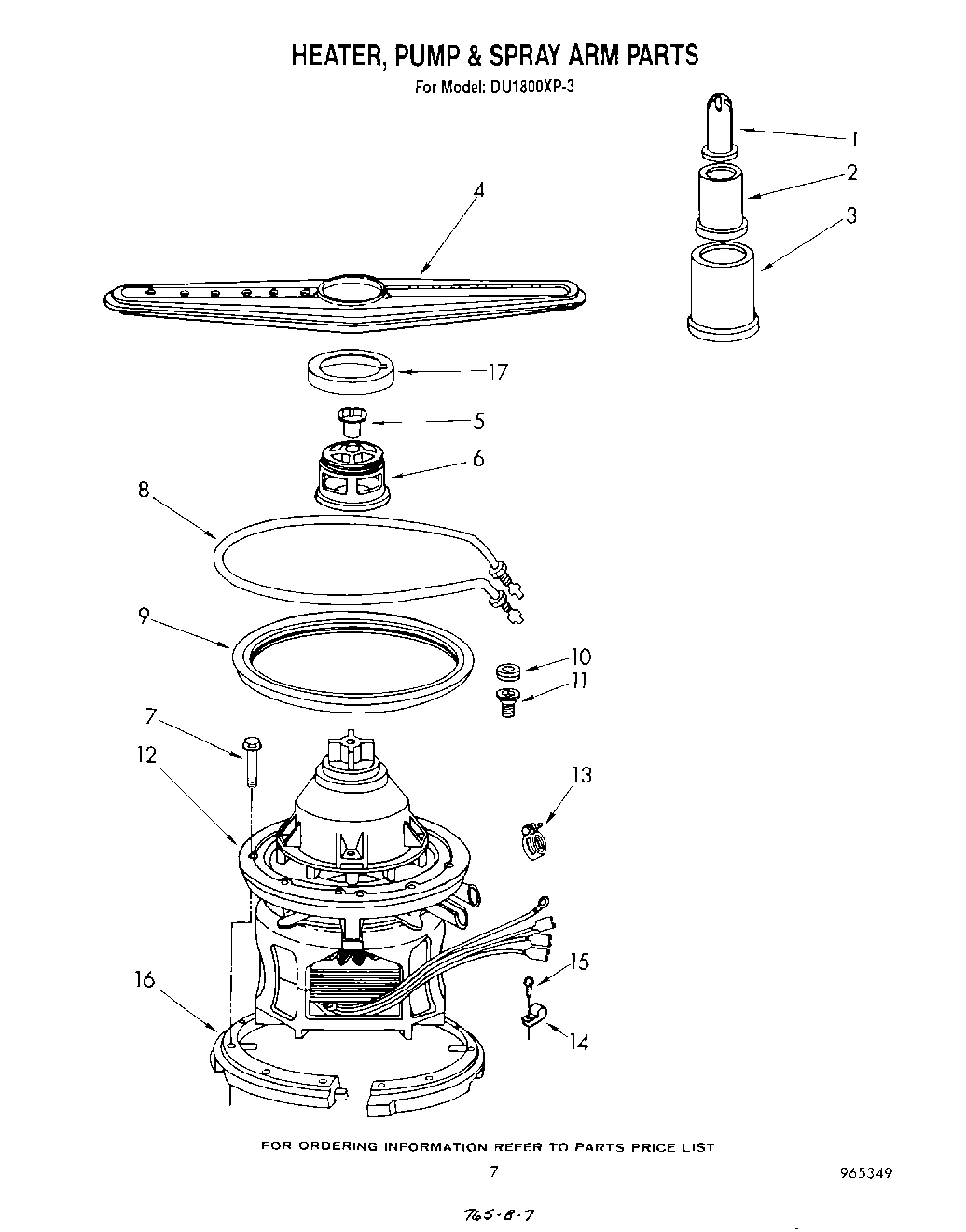

DU1800XP3 06 – HEATER, PUMP, AND SPRAY ARM

Products

Position	Product
1	Tower Tip
2	Tower Section
3	Tower Base
4	Spray Arm
5	Nut, Spray Arm
6	Bearing, Spray Arm
7	Screw, 10 x 1 Hex Wash. Hd. St. Stl. (6)
8	Heater (Includes Illus. 10 & 11)
9	Gasket, Pump
10	Grommet, Heater (2)
11	Nut, Heater 1/2“ (2)
12	Pump & Motor Assembly (Includes Illus. 7, 9 & 16)
13	WP596669 Whirlpool Hose Clamp
14	Clamp, Wire
15	W11693756 Whirlpool Screw Assembly
16	Clamp Ring Half (2)
17	Shield, Bearing
