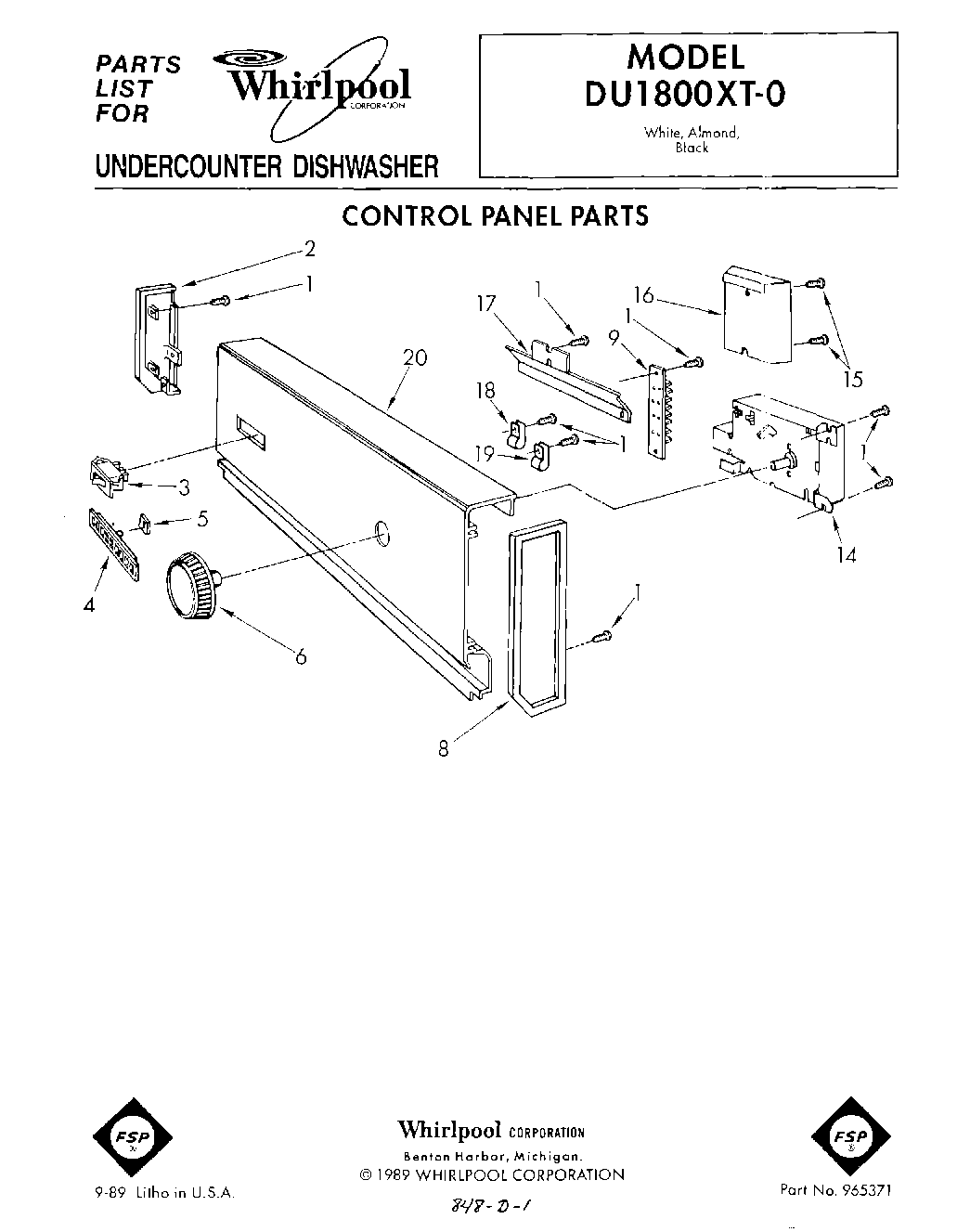

DU1800XT0 01 – CONTROL PANEL
Written by
in
DU1800XT0 01 – CONTROL PANEL
Products
Position
Product
1
Screw, 8 x 7/16
2
End Cap, L.H.
3
WP4314961 Whirlpool Lite Switch
4
Vent Grille
5
Speednut
6
Timer Knob
8
End Cap, R.H.
9
Terminal Board
14
Timer
15
WP355214 Whirlpool Screw
16
Splash Pan
17
Shield, Vent Slot
18
Clamp, Wire
19
Clamp, Wire
20
Console Panel
←
