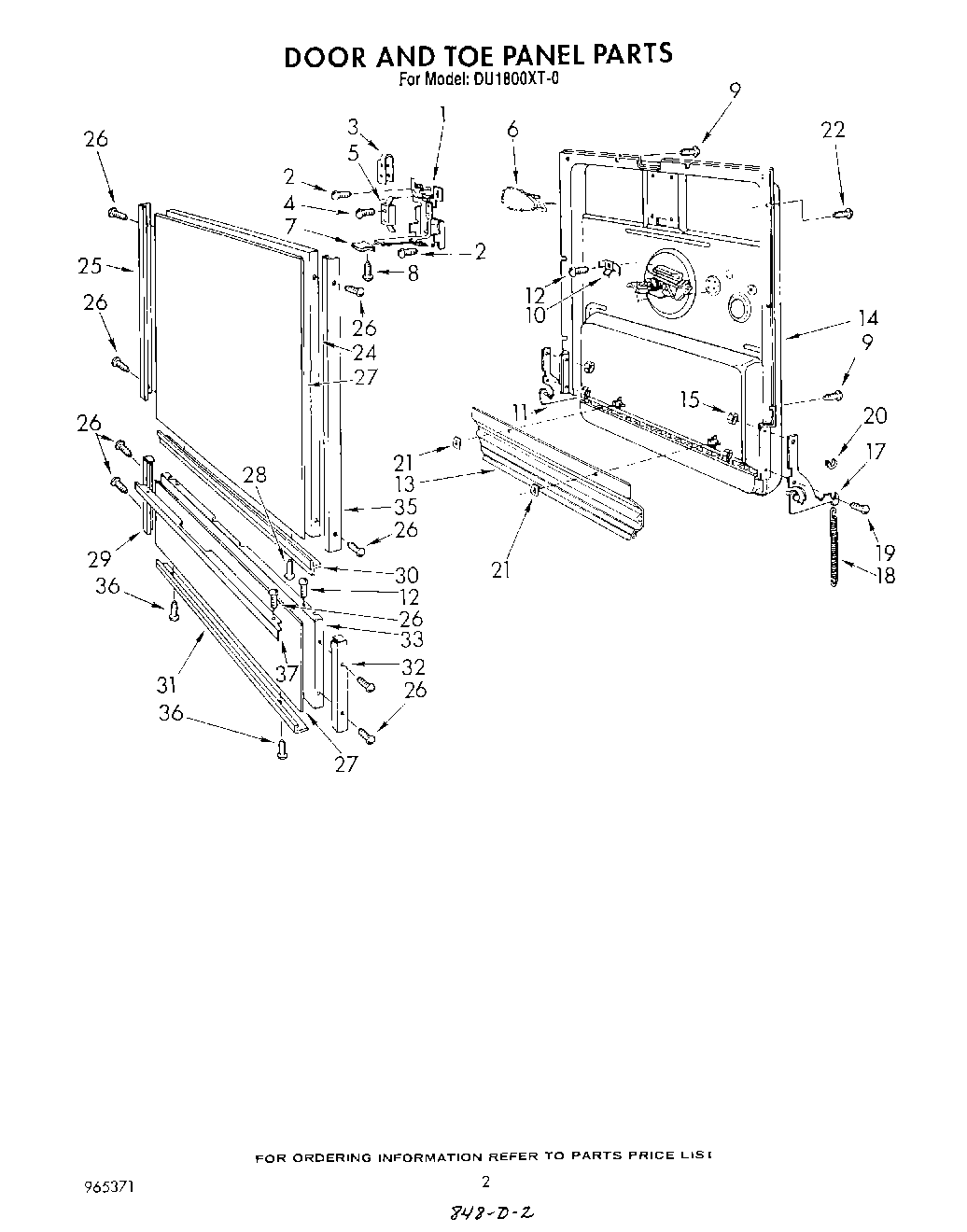

DU1800XT0 02 – DOOR AND TOE PANEL

Products

Position	Product
1	Latch Assembly
2	Screw, 8 x 5/8
3	Switch Cover
4	Screw, 6-32 x 1
5	Switch
6	WPW10339879 Whirlpool Wire Tie
7	Latch Knob
8	Screw, 8-32 x 5/16
9	Screw, 8 x 7/16
10	Terminal, Grounding
11	Counterbalance Arm, L.H.
12	WP965173 Whirlpool Dishwasher Screw
13	Baffle Seal
14	Door, Inner
15	W10080180 Whirlpool Nut
17	Counterbalance Arm, R.H.
18	Door Spring (2)
19	Screw, 10-24 x 5/8 Phlps. Truss Hd. (4)
20	Spring Pad (2)
21	Speednut
22	W11693756 Whirlpool Screw Assembly
24	Door Panel (White)
25	Trim, Door Side L.H.
26	Screw, 6 x 1/4
27	Door Panel Insert (Almond & Black)
28	WP488729 Whirlpool Refrigerator Door Screw
29	Trim, Access Panel L.H.
30	Door Trim, Bottom
31	Access Trim, Bottom
32	Trim, Access Panel R.H.
33	Access Panel (Brown)
35	Trim, Door Side R.H.
36	Screw, 8 x 3/8
37	Trim, Access Panel Top
