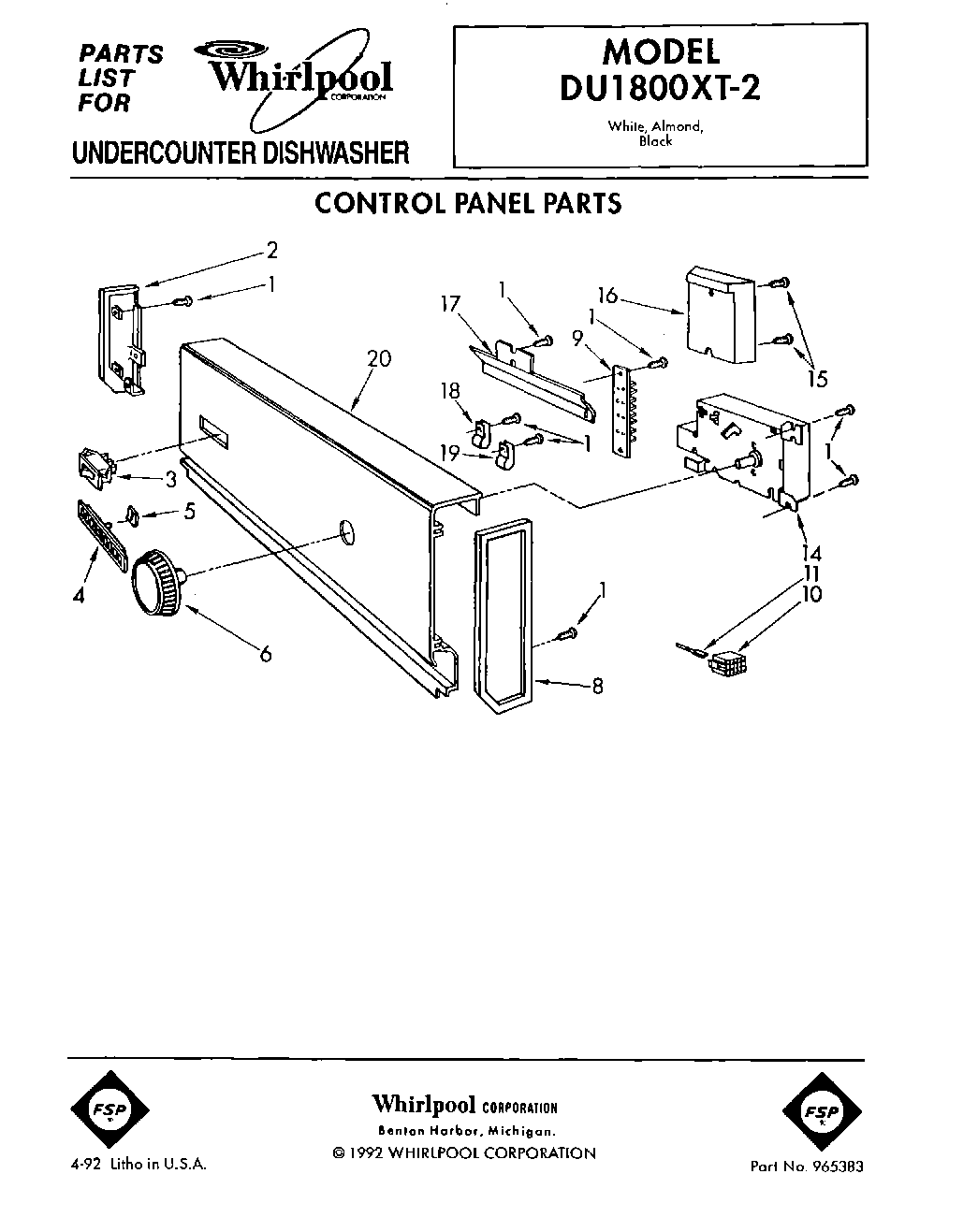

DU1800XT2 01 – CONTROL PANEL

Products

Position	Product
1	Screw, 8 x 7/16
2	End Cap, L.H.
3	WP4314961 Whirlpool Lite Switch
4	Vent Grille
5	Speednut
6	Timer Knob
8	End Cap, R.H.
9	Terminal Board
10	Housing, Terminal
11	Housing, Terminal
14	Timer
15	WP355214 Whirlpool Screw
16	Splash Pan
17	Shield, Vent Slot
18	Clamp, Wire
19	Clamp, Wire
20	Console Panel
