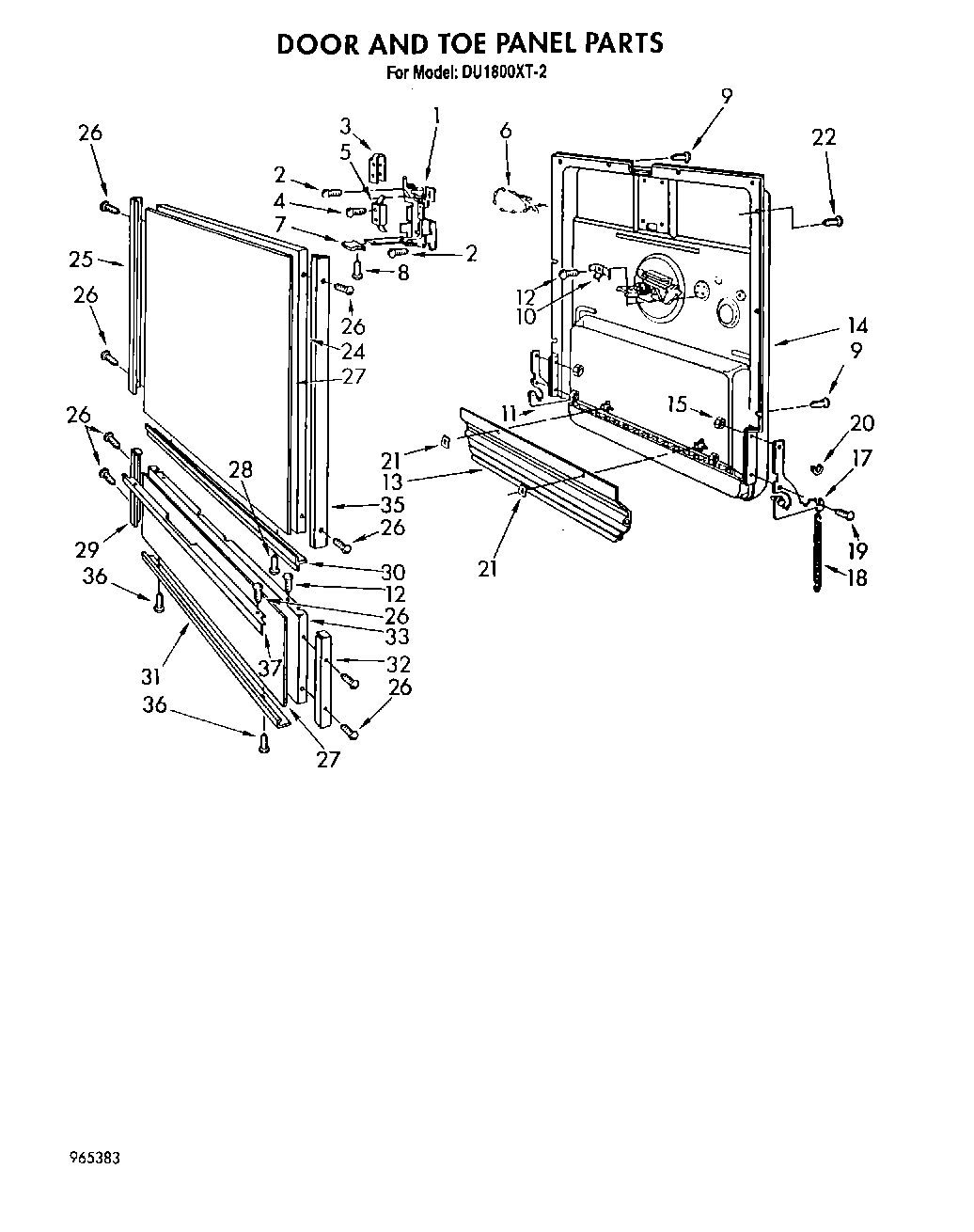

DU1800XT2 02 – DOOR AND TOE PANEL

Products

PositionProduct
1Latch Assembly
2Screw, 8 x 5/8
3Switch Cover
4Screw, 6-32 x 1
5Switch
6WPW10339879 Whirlpool Wire Tie
7Latch Knob
8Screw, 8-32 x 5/16
9Screw, 8 x 7/16
10Terminal, Grounding
11Counterbalance Arm, L.H.
12WP965173 Whirlpool Dishwasher Screw
13Baffle Seal
14Door, Inner
15W10080180 Whirlpool Nut
17Counterbalance Arm, R.H.
18Door Spring (2)
19Screw, 10-24 x 5/8 Phlps. Truss Hd. (4)
20Spring Pad (2)
21Speednut
22W11693756 Whirlpool Screw Assembly
24Door Panel (White)
25Trim, Door Side L.H.
26Screw, 6 x 1/4
27Door Panel Insert (Almond & Black)
28WP488729 Whirlpool Refrigerator Door Screw
29Trim, Access Panel L.H.
30Door Trim, Bottom
31Access Trim, Bottom
32Trim, Access Panel R.H.
33Access Panel (Brown)
35Trim, Door Side R.H.
36Screw, 8 x 3/8
37Trim, Access Panel Top
