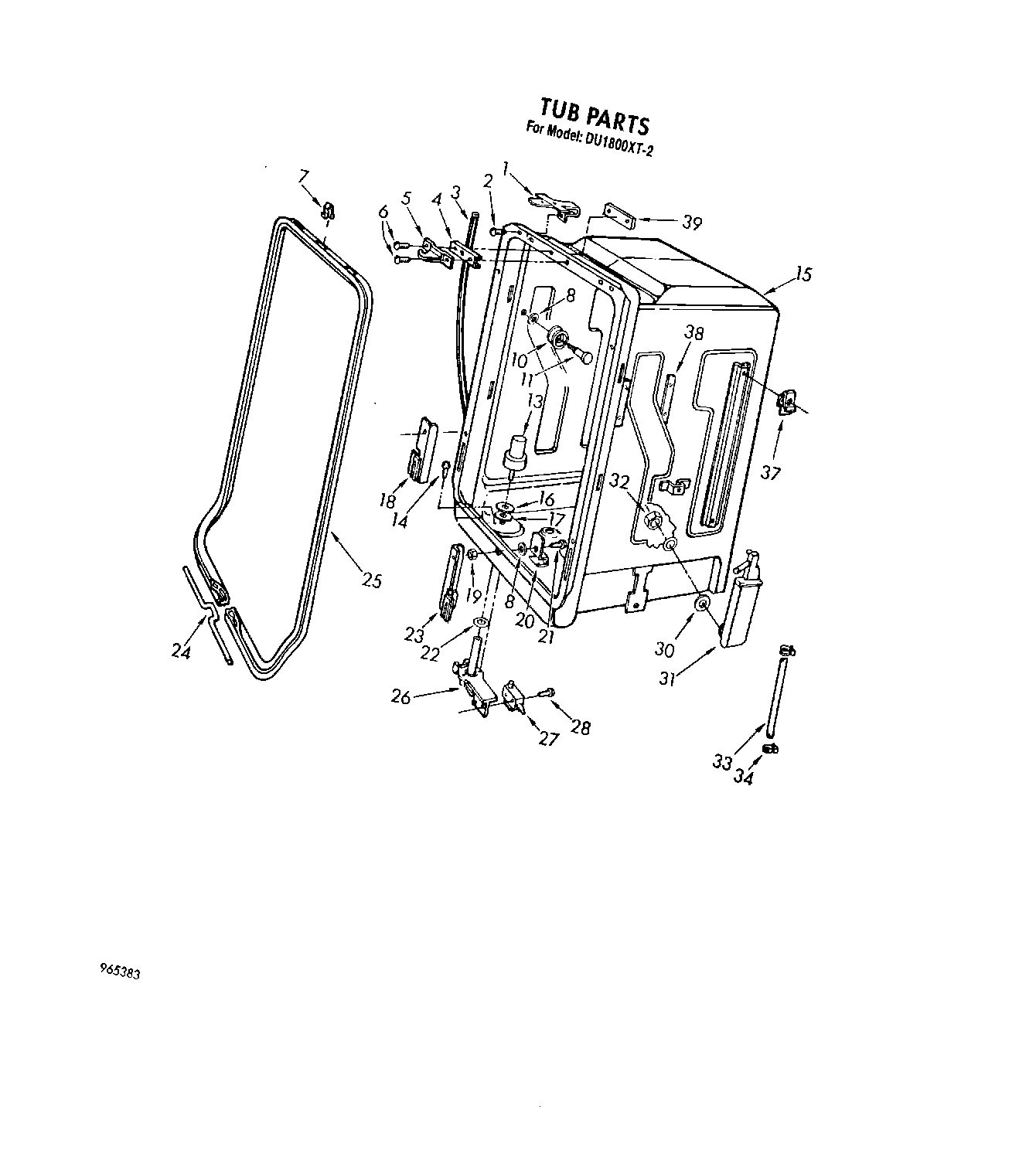

DU1800XT2 03 – TUB

Products

Position	Product
1	Attach Clip (2)
2	WP355214 Whirlpool Screw
3	Drain Hose
4	Shim
5	Strike
6	Screw, 10-24 x 3/4
7	Gasket Clip Kit (Includes Item 20)
8	Sealing Washer
10	Roller
11	Shoulder Screw (Includes Item 8)
13	Float
14	Screw, 10 x 1 Hex Wash. Hd. St. Stl. (6)
15	Tub & Gasket Assembly (Includes Item 25)
16	Float Tube Plate
17	Float Tube Gasket
18	Arm Guide, L.H.
19	WP486255 Whirlpool Air Conditioner Nut
20	Gasket Clip
21	Screw, 8-32 x 1/2
22	“O“ Ring
23	Arm Guide, R.H.
24	Junction Rod
25	Gasket, Tub (Includes Items 7 & 24)
26	Screw, 4-24 x 5/8
27	Float Switch
28	Screw, 4-24 x 5/8
30	Gasket, Inlet
31	Water Inlet
32	Nut
33	Tubing, Inlet (Includes Item 34)
34	Clamp (2)
37	Cage Nut
38	Tapping Plate (4)
39	Latch plate
