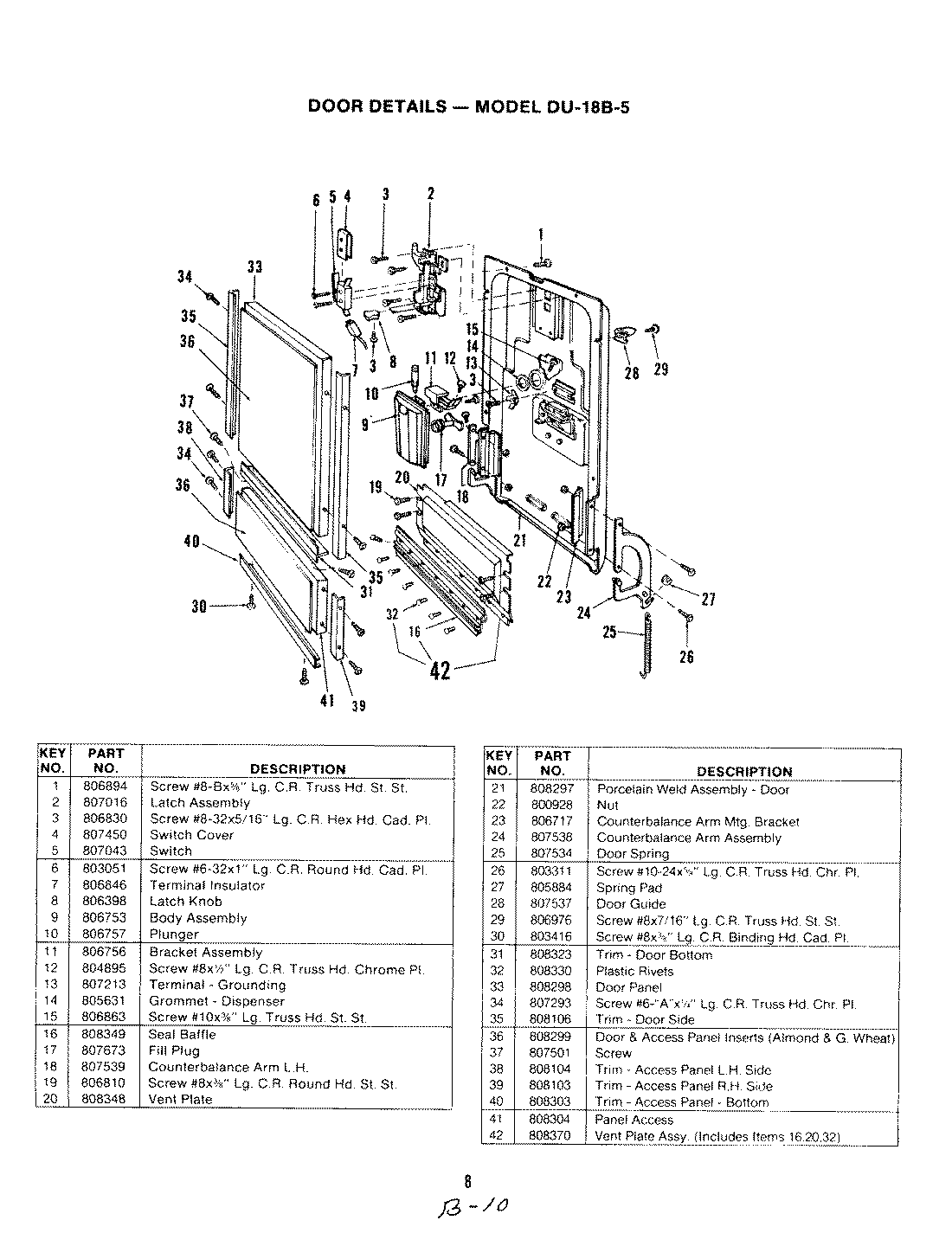

DU18B5-D 03 – DOOR DETAILS
Written by
in
DU18B5-D 03 – DOOR DETAILS
Products
| Position | Product |
|---|---|
| 1 | SCREW |
| 3 | SCREW |
| 4 | SWITCH COVER |
| 5 | MAY 807043 |
| 6 | MAY 803051– |
| 7 | INSULATOR |
| 8 | MAY 806398 |
| 9 | DISPENSER |
| 10 | MAY 806757 |
| 11 | BRACKET |
| 12 | MAY 804895 |
| 13 | GROUND TERMINAL |
| 14 | GROMMET |
| 15 | SCREW |
| 16 | MAY 808349 |
| 17 | MAY 807673 |
| 18 | LH ARM |
| 19 | SCREW |
| 20 | MAY 808348 |
| 21 | MAY 808297 |
| 22 | MAY 800928 |
| 23 | ARM BRACKET |
| 23 | LATCH ASM |
| 24 | RH ARM |
| 25 | MAY 807534 |
| 26 | MAY 803311 |
| 27 | SPRING PAD |
| 28 | DOOR GUIDE |
| 29 | MAY 806976 |
| 30 | SCREW |
| 31 | TRIM |
| 32 | MAY 808330 |
| 33 | DOOR PANEL |
| 34 | MAY 807293 |
| 35 | BTM TRIM |
| 36 | INSERT |
| 37 | MAY 807501 |
| 38 | TRIM |
| 39 | TRIM |
| 40 | TRIM |
| 41 | ACCESS PANEL |
| 42 | VENT PANEL ASM |
