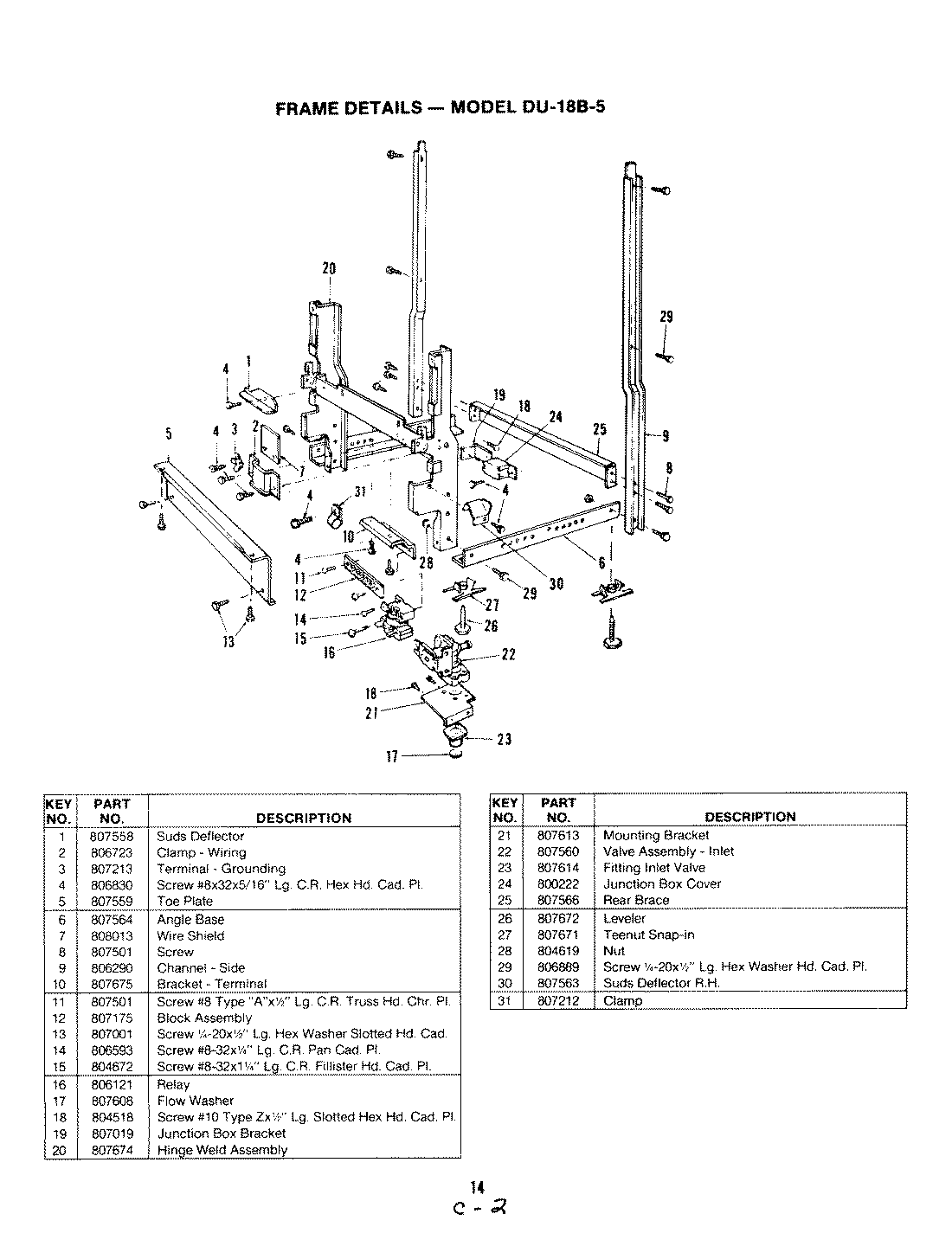

DU18B5-D 04 – FRAME DETAILS

DU18B5-D 04 – FRAME DETAILS

Written by

in

DU18B5-D 04 – FRAME DETAILS

Products

Position	Product
1	DEFLECTOR
2	CLAMP
3	GROUND TERMINAL
4	SCREW
5	TOE PLATE
6	BASE ANGLE
7	WIRE SHIELD
9	CHANNEL
10	BRACKET
11	MAY 807501
12	TERMINAL BLOCK
13	SCREW
14	MAY 806593
15	MAY 804672
16	SUB 805255
17	MAY 807608
18	SCREW
19	BRACKET
20	HINGE
21	VALVE BRACKET
22	MAY 807560
23	MAY 807614
24	TERMINAL COVER
25	MAY 807566
26	MAY 807672
27	TEENUT
28	MAY 804619
29	MAY 806889
30	SUDS DEFLECTOR
31	MAY 807212
