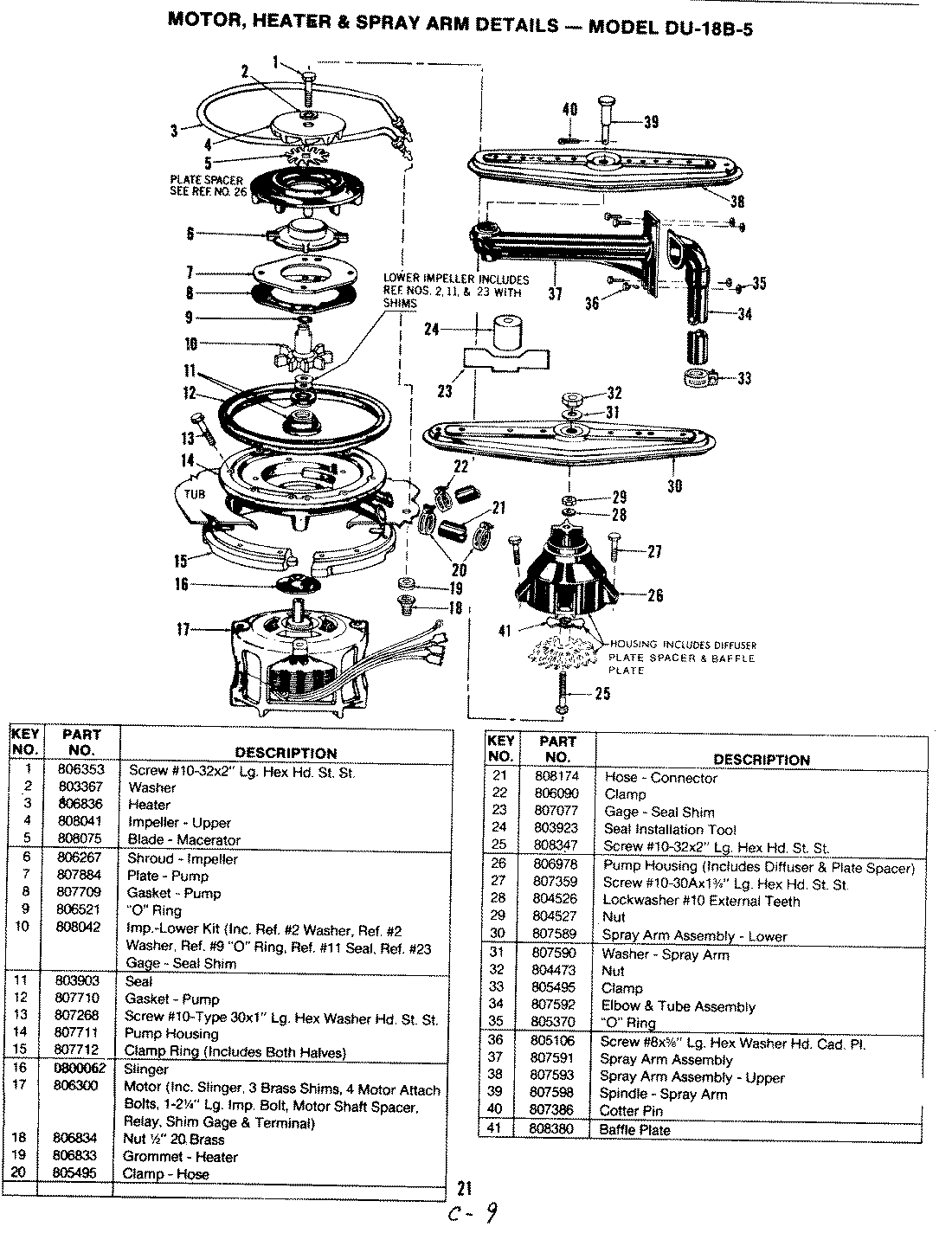

DU18B5-D 05 – MOTOR, HEATER & SPRAY ARM

Products

Position	Product
1	MAY 806353
2	MAY 803367
3	HEATER KIT
4	UPPER IMPELLER
5	MACERATOR BLADE
6	SHROUD
7	PUMP PLATE
8	GASKET
9	O RING
10	IMPELLER KIT
11	GASKET
12	MAY 807710
13	MAY 807268
14	PUMP HOUSING
15	CLAMP RING
16	MAY 800062
17	MOTOR
18	NUT
19	GROMMET
21	HOSE CONNECTOR
22	CLAMP
23	SHIM GAUGE
24	SEAL TOOL
25	MAY 808347
26	PUMPHOUSING KIT
27	SCREW
28	MAY 804526
29	MAY 804527
30	LWR SPRAY ARM
31	WASHER
32	MAY 804473
33	CLAMP
34	ELBOW
35	MAY 805370
36	SCREW
37	SPRAY ARM
38	UPR SPRAY ARM
39	SPINDLE
40	MAY 807386
41	MAY 808380
