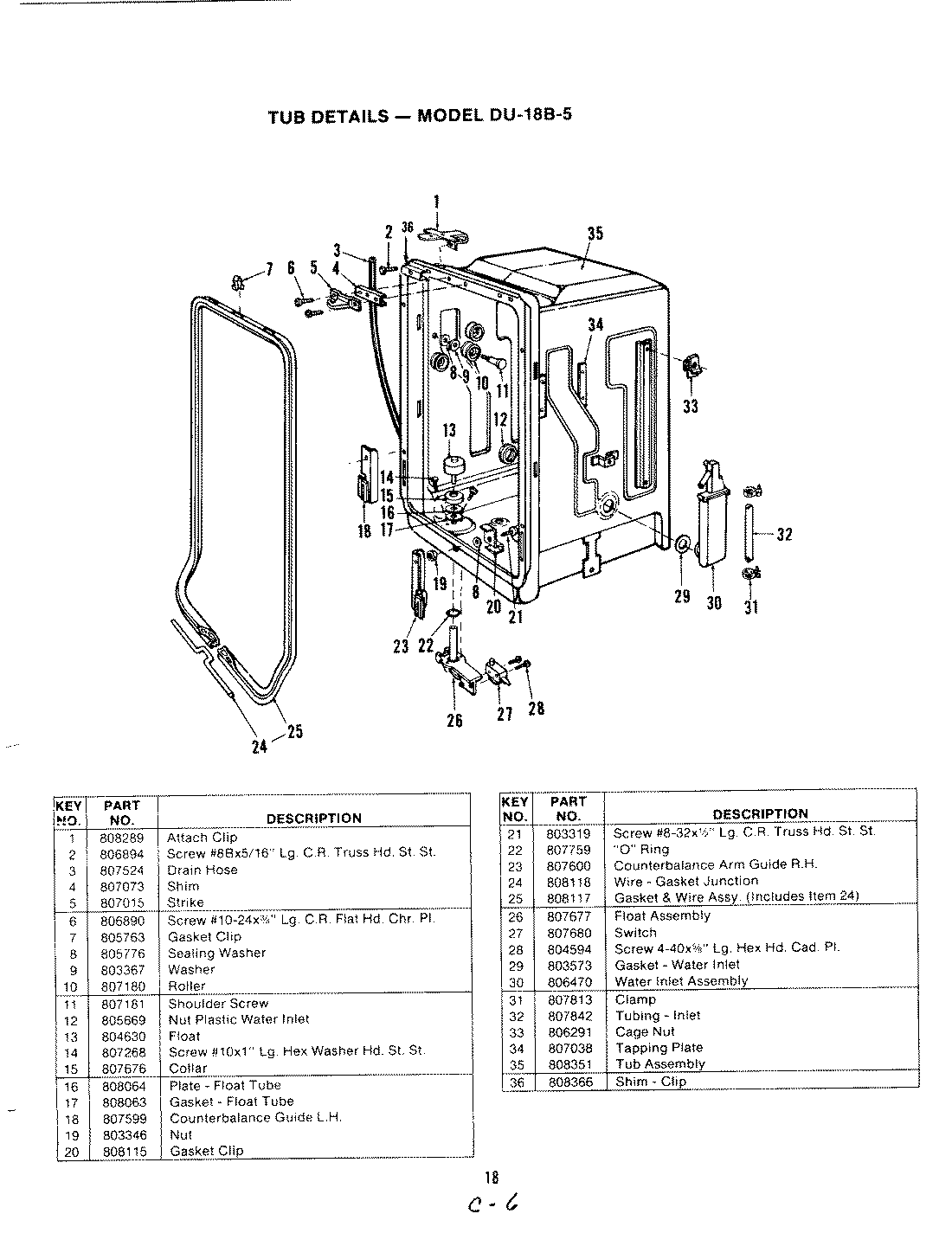

DU18B5-D 07 – TUB

Products

Position	Product
1	CLIP
2	SCREW
3	MAY 807524
4	STRIKE SHIM
5	STRIKE
6	MAY 806890
7	CLIP KIT (TUB GASKET)
8	SEALER
9	MAY 803367
10	ROLLER
11	SCREW
12	MAY 805669
13	MAY 804630
14	MAY 807268
15	MAY 807676
16	PLATE, FLOAT TUBE
17	GASKET
18	LH GUIDE
19	MAY 803346
20	MAY 808115
21	MAY 803319
22	O RING
23	RH GUIDE
24	WIRE,GASKT JUNC
25	DOOR GASKET
26	FLOAT ASM
27	FLOAT SWITCH
28	BOLT
29	WASHER
30	MAY 806470
31	MAY 807813
32	INLET TUBING
33	MAY 806291
34	TAPPING PLATE
35	TUB ASM
36	MAY 808366
