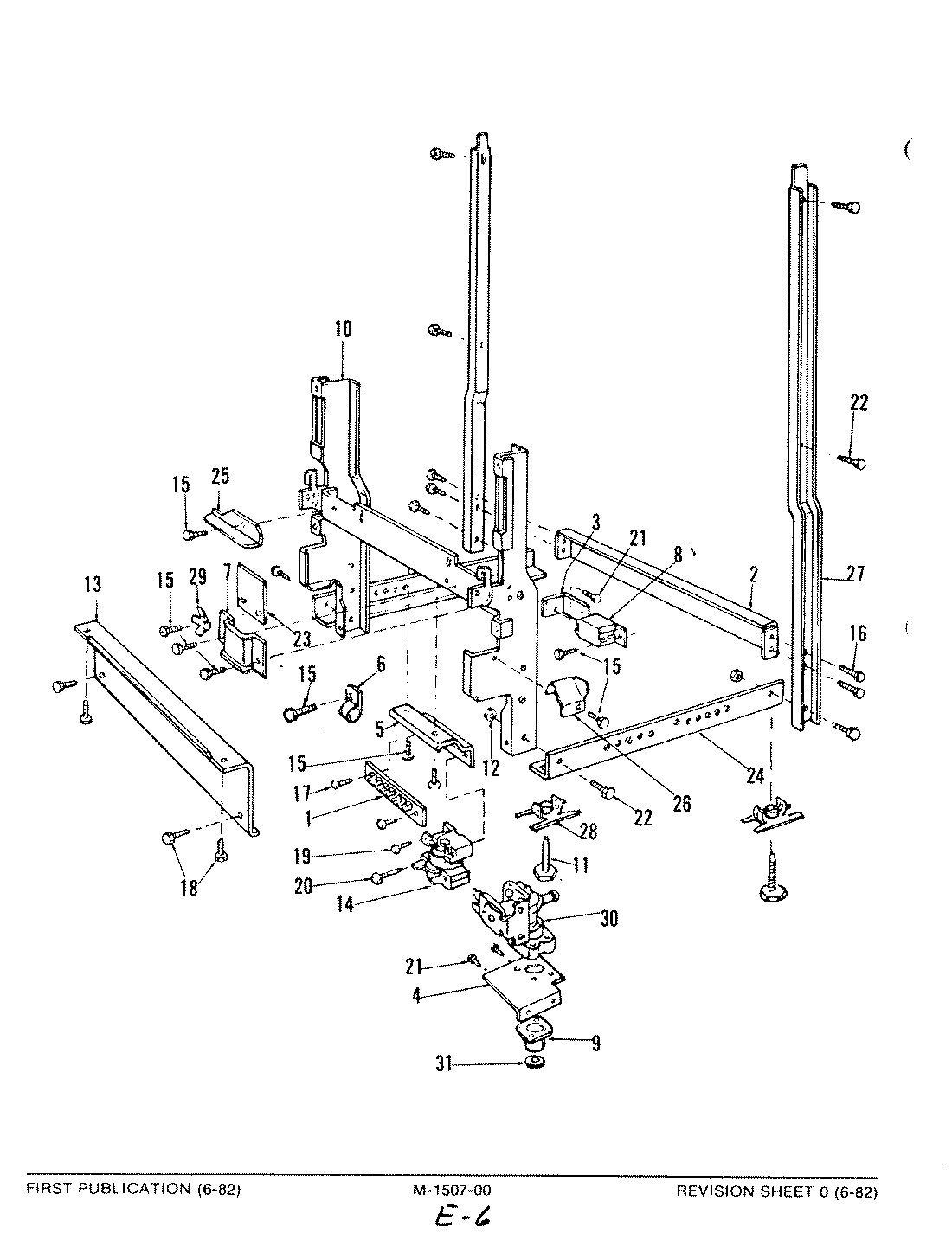

DU18C 04 – FRAME PARTS

Products

Position	Product
1	MAY 807486
2	MAY 807566
3	BRACKET
4	VALVE BRACKET
5	BRACKET
6	MAY 807212
7	CLAMP
8	TERMINAL COVER
9	MAY 807614
10	HINGE
11	MAY 807672
12	MAY 804619
13	TOE PLATE
14	SUB 805255
15	SCREW
16	MAY 807950
17	MAY 807501
18	SCREW
19	MAY 806593
20	MAY 804672
21	SCREW
22	MAY 806889
23	WIRE SHIELD
24	BASE ANGLE
25	DEFLECTOR
26	SUDS DEFLECTOR
27	CHANNEL
28	TEENUT
29	GROUND TERMINAL
30	MAY 807560
31	MAY 807608
