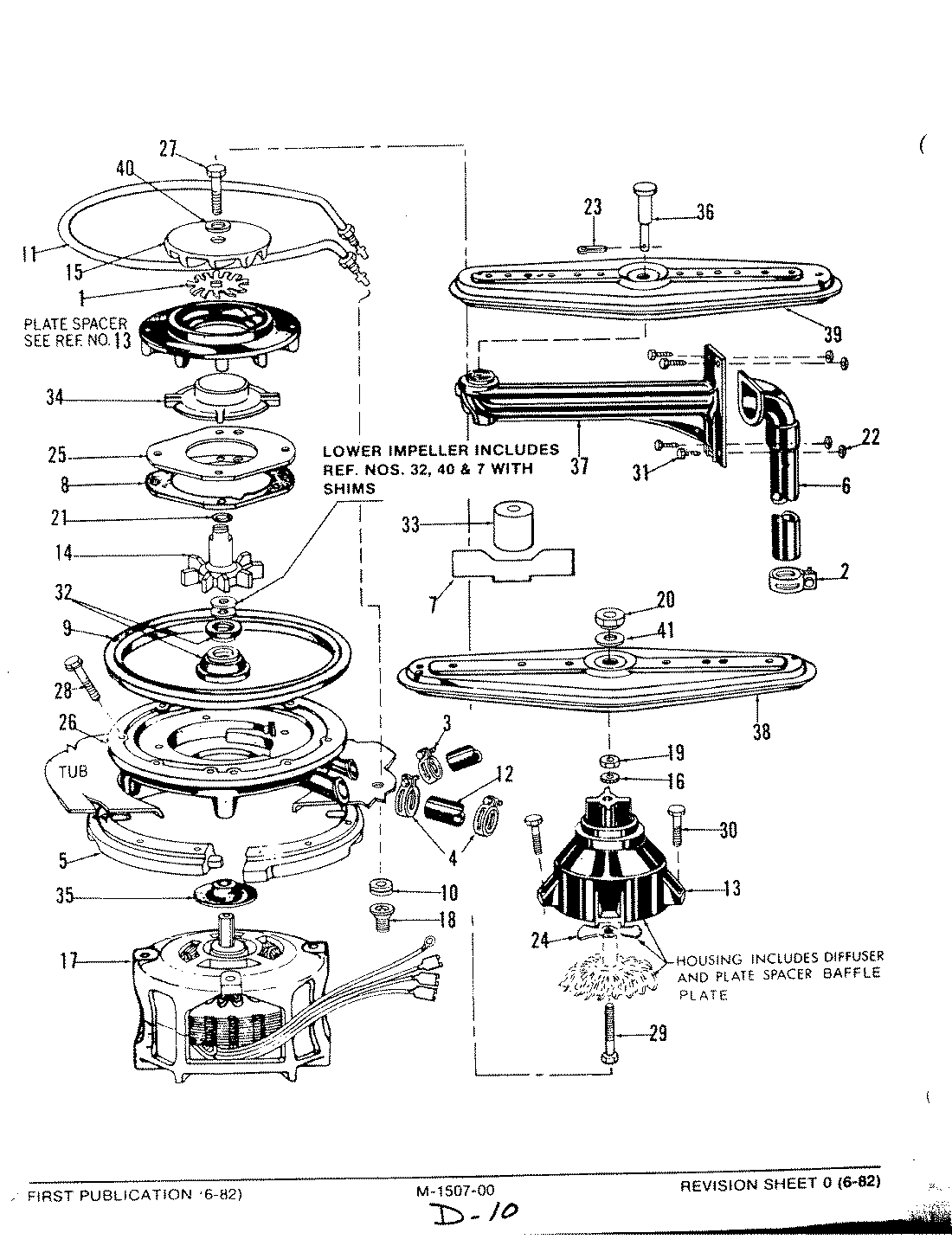

DU18C 05 – MOTOR\HEATER & SPRAY ARM

Products

Position	Product
1	MACERATOR BLADE
3	CLAMP
4	CLAMP
5	CLAMP RING
6	ELBOW
7	SHIM GAUGE
8	GASKET
9	MAY 807710
10	GROMMET
11	HEATER KIT
12	HOSE CONNECTOR
13	PUMPHOUSING KIT
14	IMPELLER KIT
15	UPPER IMPELLER
16	MAY 804526
17	MOTOR
18	NUT
19	MAY 804527
20	MAY 804473
21	O RING
22	MAY 805370
23	MAY 807386
24	MAY 808380
25	PUMP PLATE
26	PUMP HOUSING
27	MAY 806353
28	MAY 807268
29	MAY 808347
30	SCREW
31	SCREW
32	GASKET
33	SEAL TOOL
34	SHROUD
35	MAY D800062
36	SPINDLE
38	LWR SPRAY ARM
39	UPR SPRAY ARM
40	MAY 803367
41	SPRAY ARM
