DU18C 07 – TUB

DU18C 07 – TUB

Written by

in

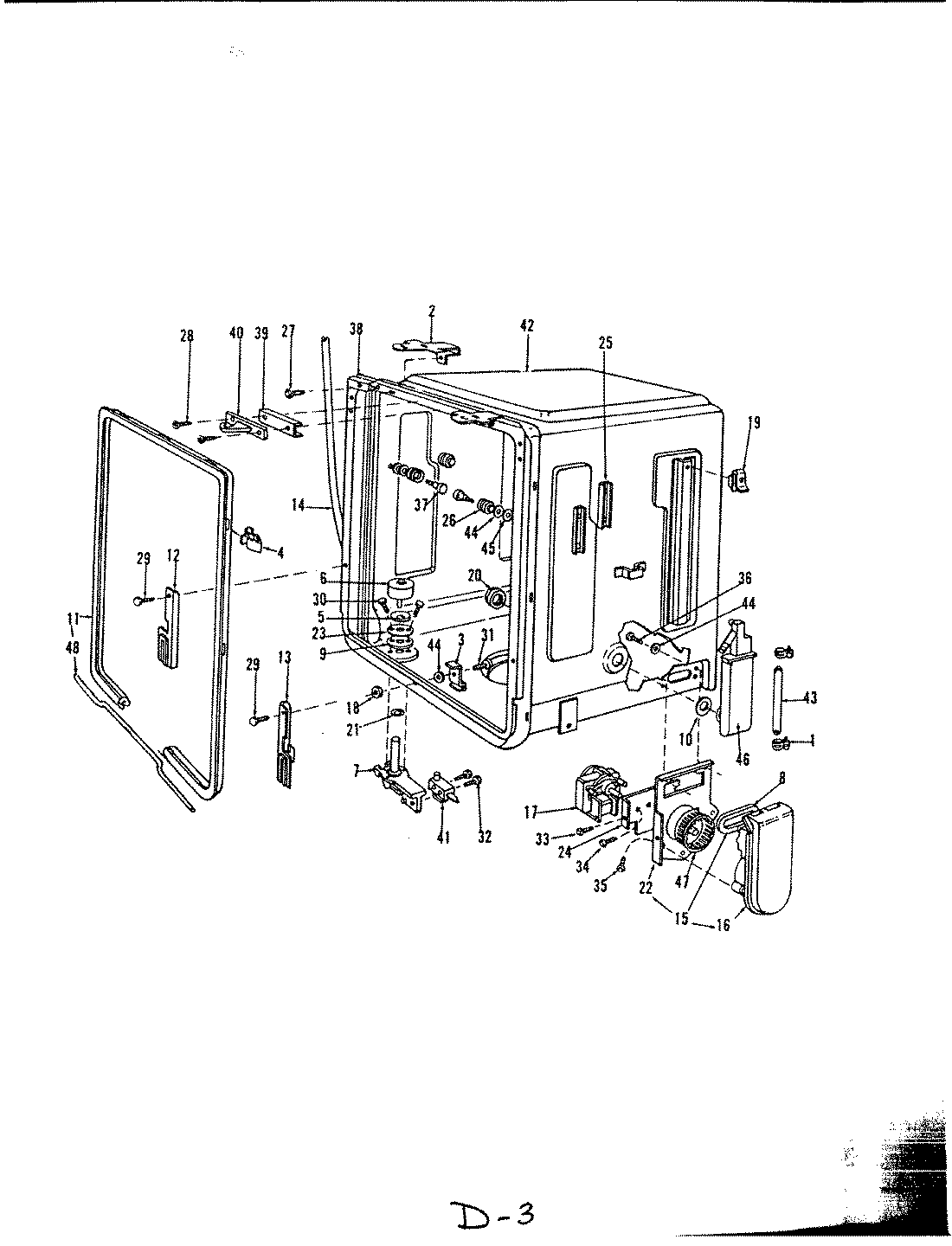

DU18C 07 – TUB

Products

Position	Product
1	MAY 807813
2	CLIP
3	MAY 808115
4	CLIP KIT (TUB GASKET)
5	MAY 807676
6	MAY 804630
7	FLOAT ASM
8	GASKET
9	GASKET
10	WASHER
11	DOOR GASKET
12	LH GUIDE
13	RH GUIDE
14	MAY 807524
15	MAY 806838
16	MAY 806844
17	BLOWER MOTOR
18	MAY 803346
19	MAY 806291
20	MAY 805669
21	O RING
22	PLATE
23	PLATE, FLOAT TUBE
24	PLATE
25	TAPPING PLATE
26	ROLLER
27	SCREW
28	MAY 806890
29	MAY 806539
30	MAY 807268
31	MAY 803319
32	BOLT
33	SCREW
34	SCREW
35	MAY 807501
36	SCREW
37	SCREW
38	MAY 808366
39	STRIKE SHIM
40	STRIKE
41	FLOAT SWITCH
42	TUB ASM
43	INLET TUBE
44	MAY 803367
45	SEALER
46	MAY 806470
47	BLOWER WHEEL
48	WIRE,GASKT JUNC
