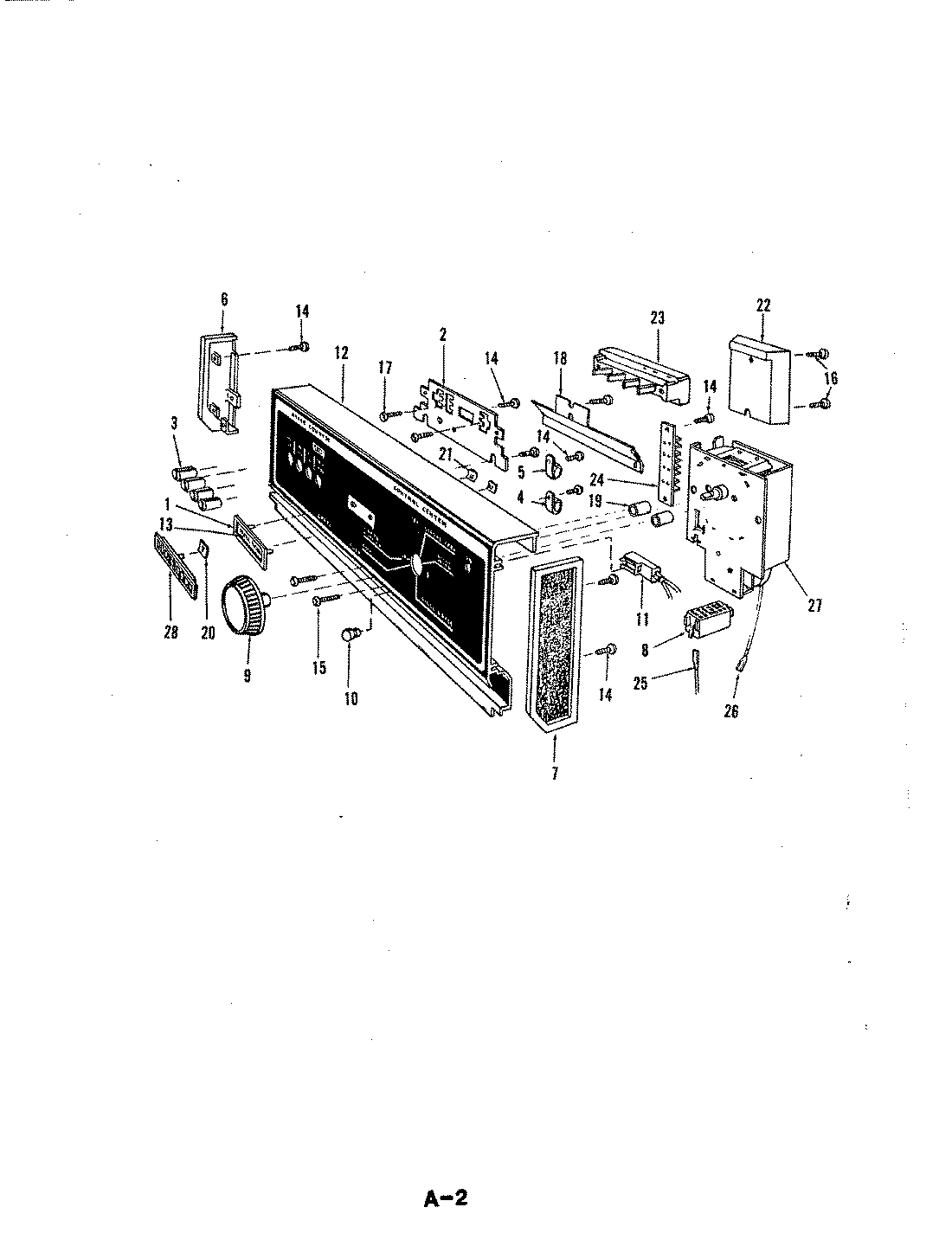

DU18D4-A 01 – CONTROL PANEL

DU18D4-A 01 – CONTROL PANEL

Written by

in

DU18D4-A 01 – CONTROL PANEL

Products

Position	Product
1	MAY 808713
2	MAY 806594
3	PUSH BUTTON
4	WIRE CLAMP
5	MAY 805584
6	LH END CAP
7	RH END CAP
8	RH TIMER HOUSNG
9	MAY 807094
10	RED LENS
11	LIGHT ASM
12	MAY 809002
13	MAY 808720
13	MAY 808721
14	SCREW
15	SCREW
16	SCREW
17	MAY 807141
18	SHIELD
19	SPACER
20	MAY 808475
21	MAY 807970
22	MAY 807425
23	MAY 808724
24	MAY 808483
25	MAY 808333
26	TERMINAL
27	MAY 808671
28	VENT TRIM
