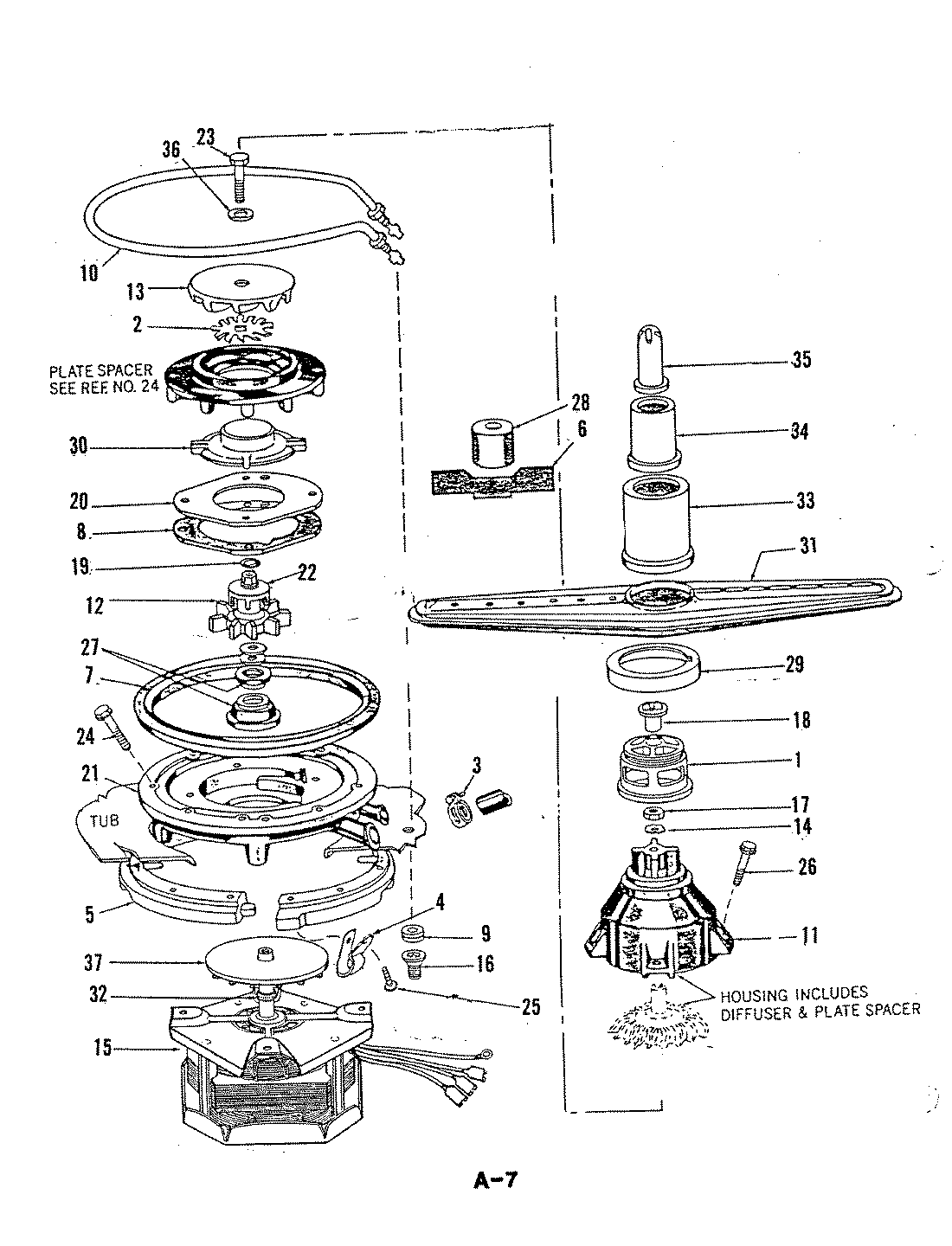

DU18D4-A 05 – MOTOR & PUMP

Products

Position	Product
1	LOWER BEARING
3	CLAMP
4	WIRE CLAMP
5	CLAMP RING
6	SHIM GAUGE
7	MAY 807710
9	GROMMET
10	HEATER KIT
11	PUMPHOUSING KIT
12	PUMP SEAL KIT
13	UPPER IMPELLER
14	MAY 804526
15	MOTOR
16	NUT
17	MAY 804527
18	NUT
19	O RING
20	PUMP PLATE
21	MAY 808700
22	MAY 808699
23	MAY 806353
25	MAY 807270
26	SCREW
28	SEAL TOOL
29	BEARING SHIELD
30	SHROUD
31	SPRAY ARM
32	RING
33	TOWER BASE
34	MAY 808179
35	MAY 808849
36	MAY 803367
37	WATER SHLD, FAN
