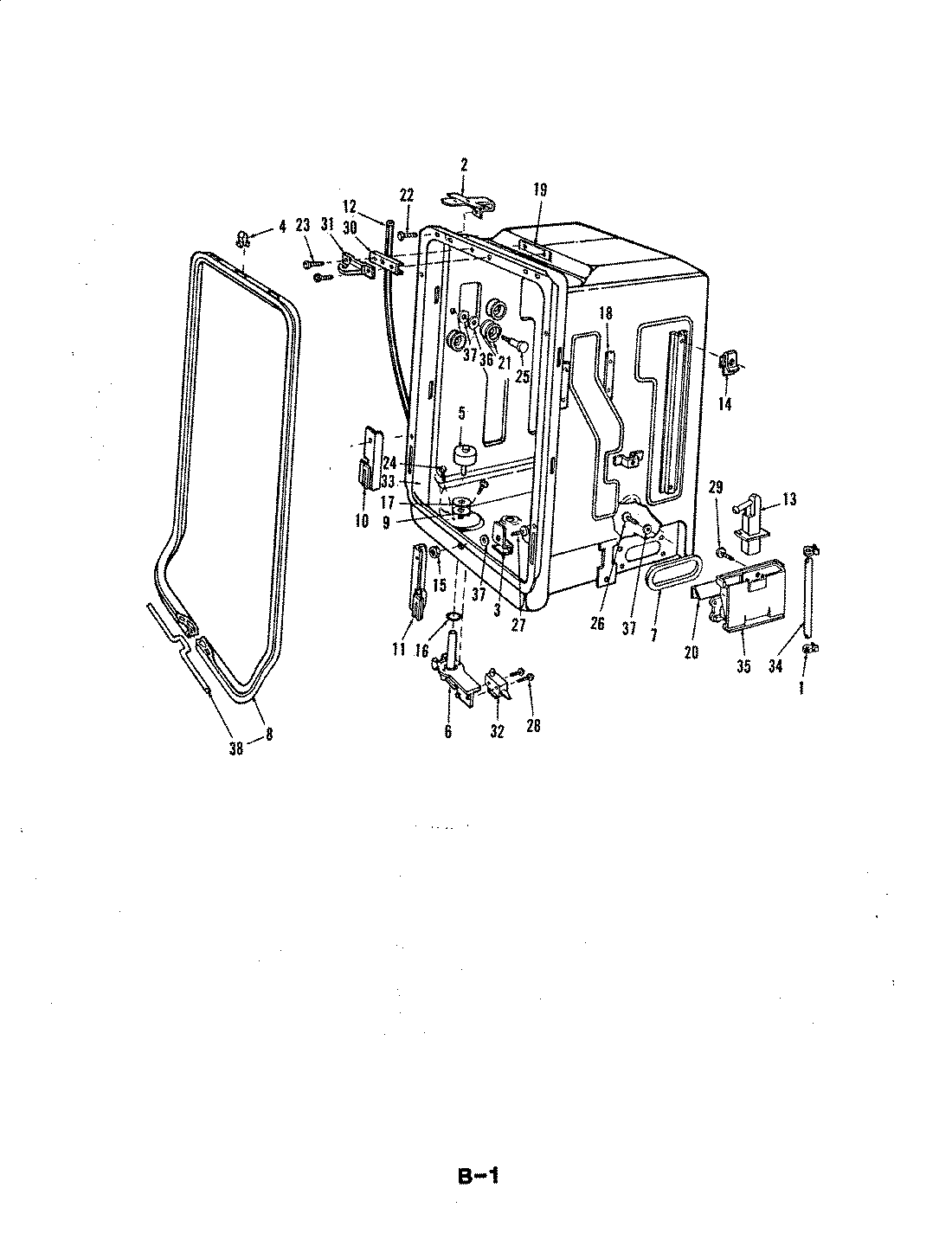

DU18D4-A 07 – TUB

DU18D4-A 07 – TUB

Written by

in

DU18D4-A 07 – TUB

Products

Position	Product
1	MAY 807813
2	CLIP
3	MAY 808115
4	CLIP KIT (TUB GASKET)
5	MAY 804630
6	FLOAT ASM
7	GASKET
8	DOOR GASKET
9	GASKET
10	LH GUIDE
11	RH GUIDE
12	MAY 807524
12	DRAIN HOSE
13	INLET NOZZLE
14	MAY 806291
15	MAY 803346
16	O RING
17	PLATE, FLOAT TUBE
18	TAPPING PLATE
19	TAPPING PLATE
20	MAY 808705
22	SCREW
22	ROLLER
23	MAY 806890
24	MAY 807268
25	HARDWARE KIT
26	SCREW
27	MAY 803319
28	BOLT
29	SCREW
30	STRIKE SHIM
31	STRIKE
32	FLOAT SWITCH
33	TUB/GASKET ASM
34	INLET TUBE
35	MAY 808706
36	MAY 803367
37	SEALER
38	WIRE,GASKT JUNC
