DU18D4-A1 04 – FRAME PARTS – Aparts

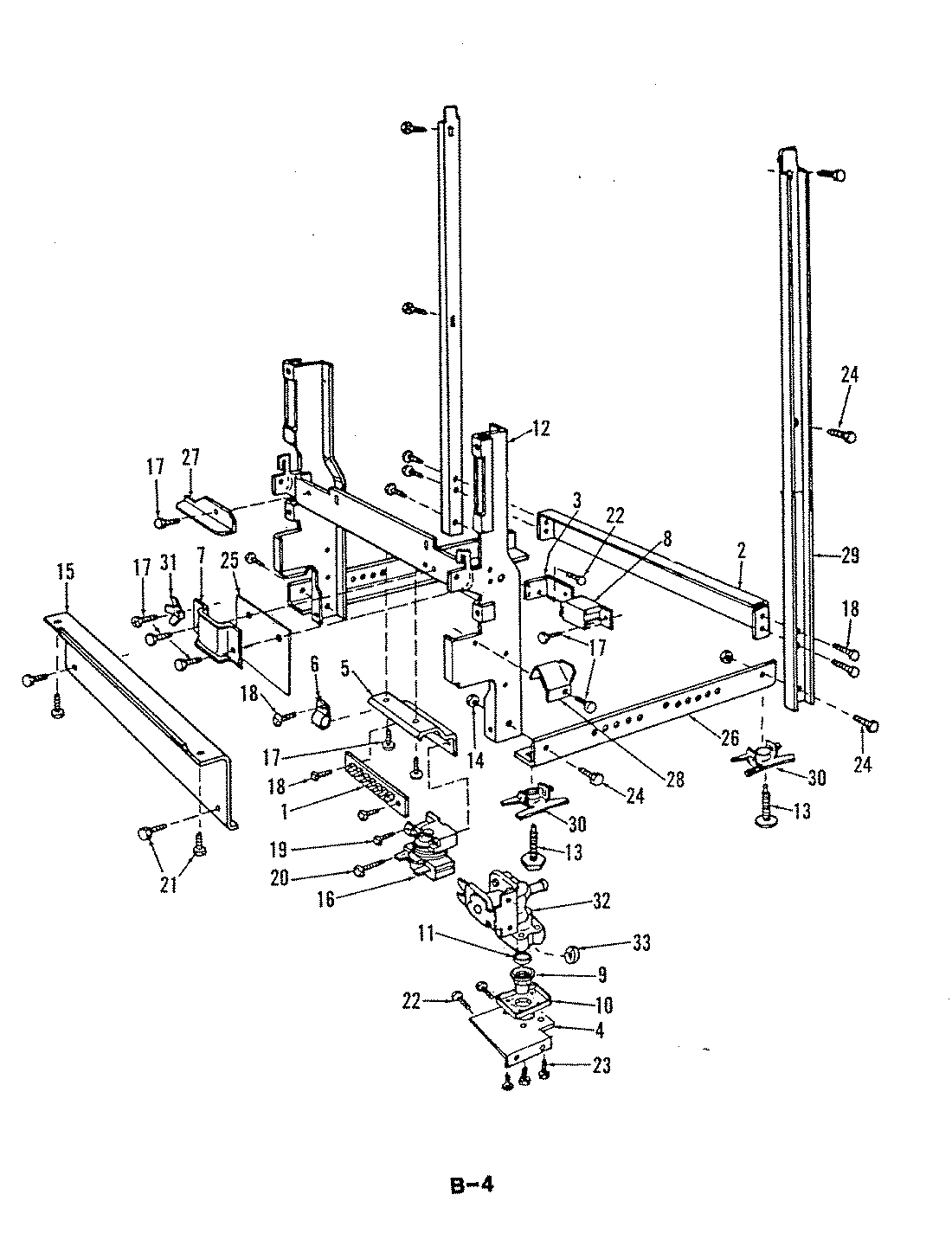

DU18D4-A1 04 – FRAME PARTS

Products

Position	Product
1	MAY 807486
2	MAY 807566
3	BRACKET
4	VALVE BRACKET
5	BRACKET
6	WIRE CLAMP
7	CLAMP
8	TERMINAL COVER
9	FITTING
10	RETAINER
11	MAY 806100
12	HINGE
13	MAY 807672
14	SIDE PANEL
14	PANEL, SIDE
14	PANEL, SIDE
14	PANEL, SIDE
14	SIDE PANEL
15	TOE PLATE
16	RELAY
17	MAY 808658
18	MAY 807501
19	MAY 806593
20	MAY 804672
21	SCREW
22	MAY 807950
23	SCREW
25	WIRE SHIELD
26	BASE ANGLE
27	DEFLECTOR
28	SUDS DEFLECTOR
29	MAY 808670
30	TEENUT
31	GROUND TERMINAL
32	INLET VALVE KIT
33	MAY 808469
