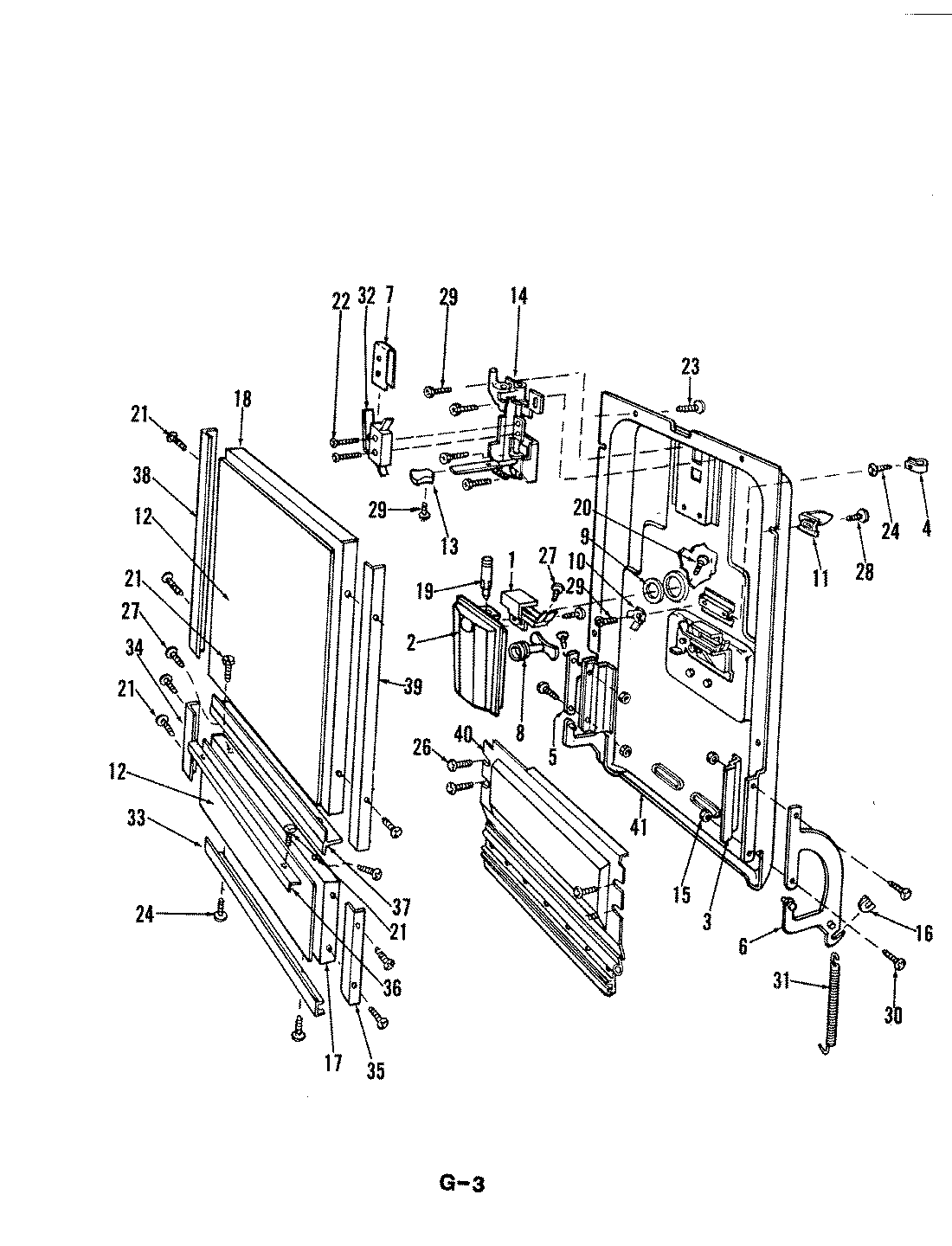

DU18D4A2 03 – DOOR PARTS
Products
| Position | Product |
|---|---|
| 1 | BRACKET |
| 2 | DISPENSER |
| 3 | ARM BRACKET |
| 4 | WIRE CLAMP |
| 5 | LH ARM |
| 6 | RH ARM |
| 7 | SWITCH COVER |
| 8 | MAY 807673 |
| 9 | GROMMET |
| 10 | GROUND TERMINAL |
| 11 | DOOR GUIDE |
| 12 | INSERT |
| 13 | MAY 806398 |
| 14 | LATCH ASM |
| 15 | LOCKNUT |
| 16 | SPRING PAD |
| 17 | ACCESS PANEL |
| 18 | DOOR PANEL |
| 19 | MAY 806757 |
| 20 | SCREW |
| 21 | MAY 807293 |
| 22 | SCREW |
| 23 | SCREW |
| 24 | SCREW |
| 25 | MAY 808658 |
| 26 | SCREW |
| 27 | MAY 807501 |
| 28 | MAY 808749 |
| 29 | SCREW |
| 30 | MAY 803311 |
| 31 | MAY 807534 |
| 32 | TRIM |
| 34 | TRIM |
| 35 | TRIM |
| 36 | ACCESS PNL TRIM |
| 37 | MAY 808328 |
| 38 | LH DOOR TRIM |
| 39 | TRIM |
| 40 | VENT PANEL ASM |
| 41 | MAY 808583 |
