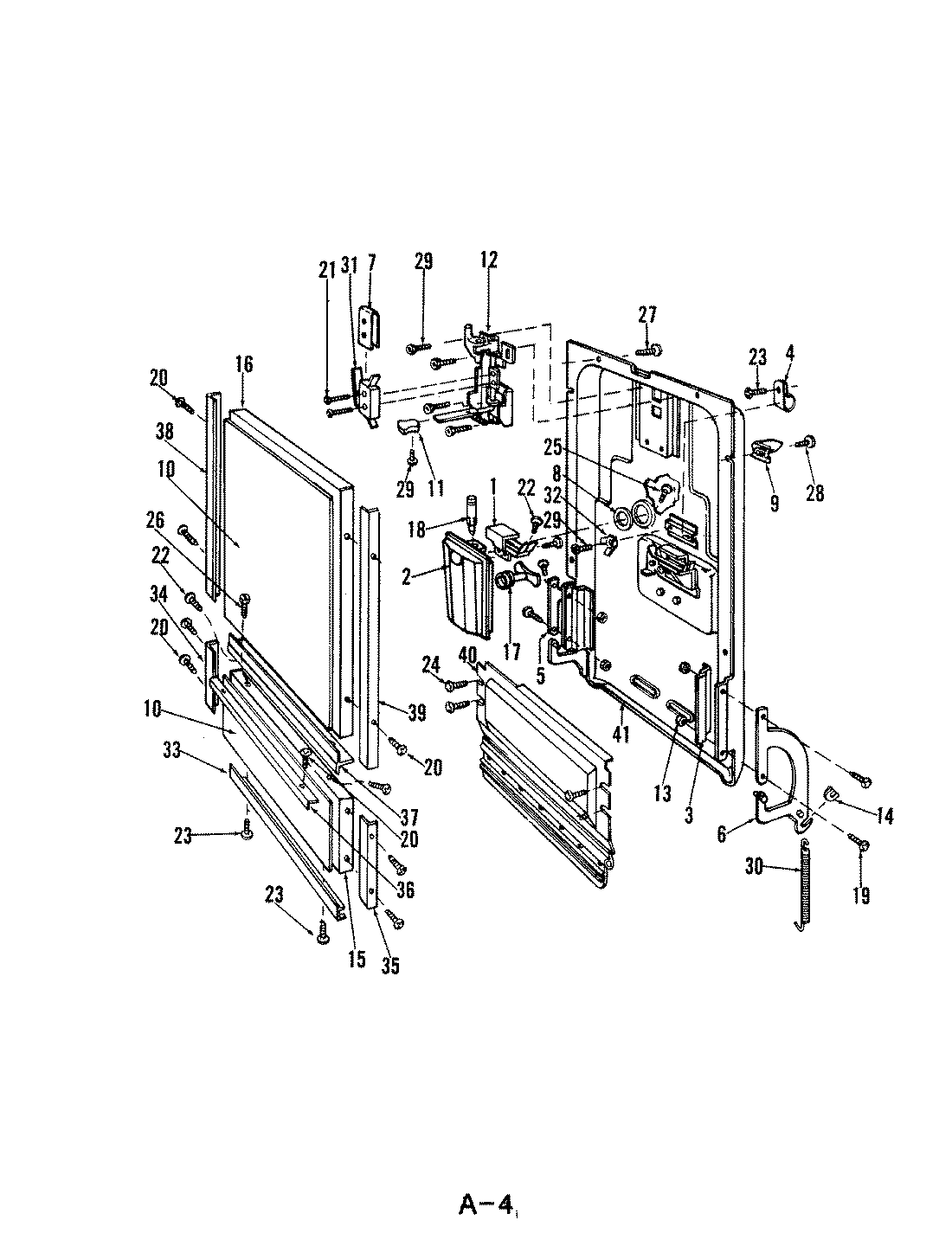

DU18H4 03 – DOOR PARTS

Products

Position	Product
1	BI-METAL ASM
2	DISPENSER
3	ARM BRACKET
4	SCREW
5	LH ARM
6	RH ARM
7	SWITCH COVER
8	GROMMET
9	DOOR GUIDE
10	INSERT
11	MAY 806398
12	LATCH ASM
13	LOCKNUT
14	SPRING PAD
15	ACCESS PANEL
16	DOOR PANEL
17	MAY 807673
18	MAY 806757
19	MAY 803311
20	MAY 807293
21	MAY 808618
22	MAY 807501
23	SCREW
24	SCREW
25	SCREW
26	MAY 808658
27	SCREW
28	MAY 808749
29	SCREW
30	MAY 807534
31	MAY 807043
32	GROUND TERMINAL
33	TRIM
34	TRIM
35	TRIM
36	ACCESS PNL TRIM
37	TRIM
38	LH DOOR TRIM
39	TRIM
40	VENT PANEL ASM
41	MAY 808583
