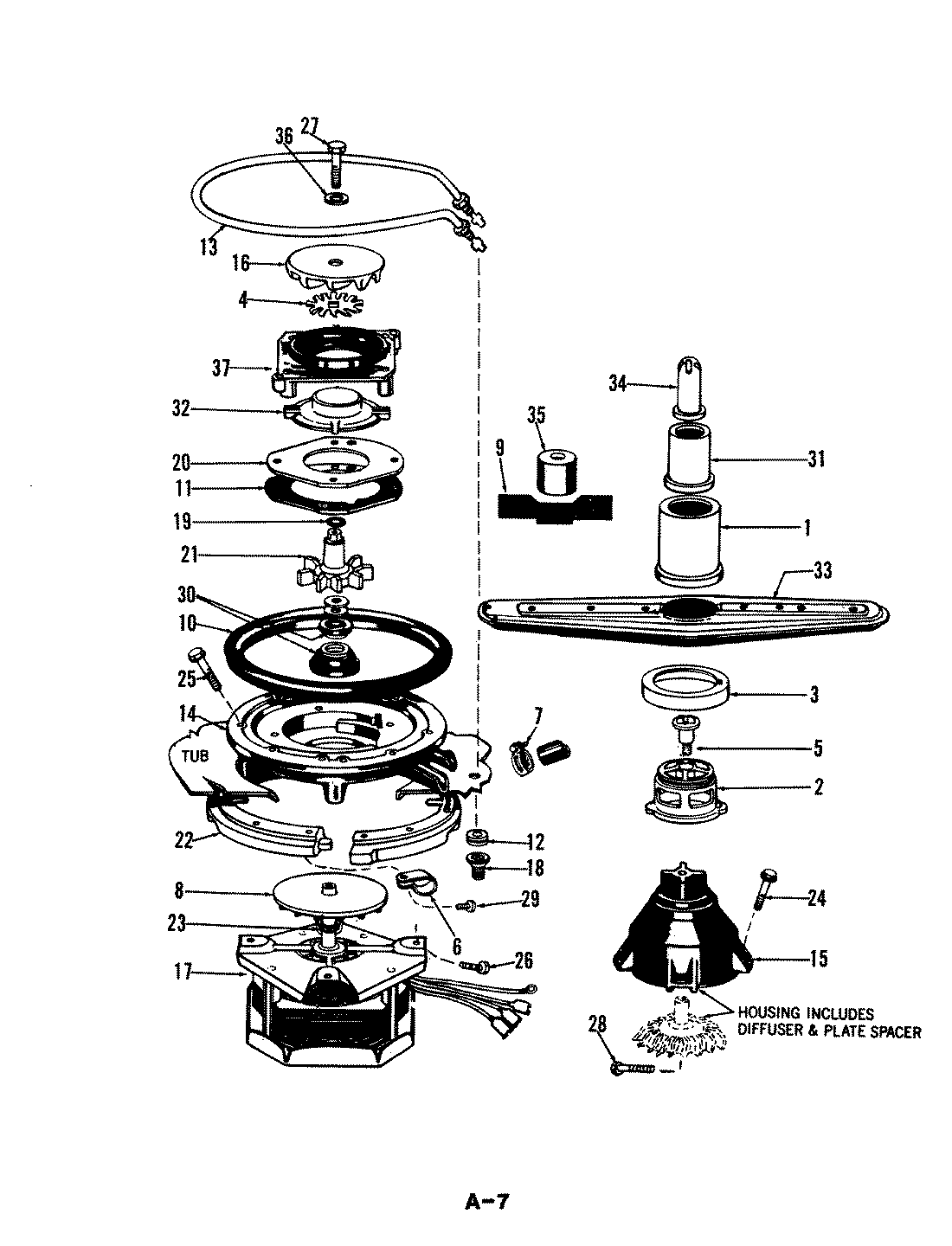

DU18H4 05 – MOTOR & PUMP

Products

Position	Product
1	TOWER BASE
2	MAY 809046
3	BEARING SHIELD
4	MACERATOR BLADE
6	WIRE CLAMP
7	MAY 808186
8	WATER SHLD, FAN
9	SHIM GAUGE
10	PUMP GASKET
11	GASKET
12	GROMMET
13	HEATER KIT
14	MAY 809059
15	IMPELR HSG KIT
16	UPPER IMPELLER
17	MOTOR
18	NUT
19	O RING
20	PUMP PLATE
21	PUMP SEAL KIT
22	CLAMP RING
23	RING
24	SCREW
25	MAY 807268
26	MAY 809022
27	MAY 806353
28	SCREW
29	MAY 807270
30	GASKET
31	MAY 808179
32	SHROUD
33	SPRAY ARM
34	MAY 808849
35	SEAL TOOL
36	MAY 803367
37	SPACER PLATE
