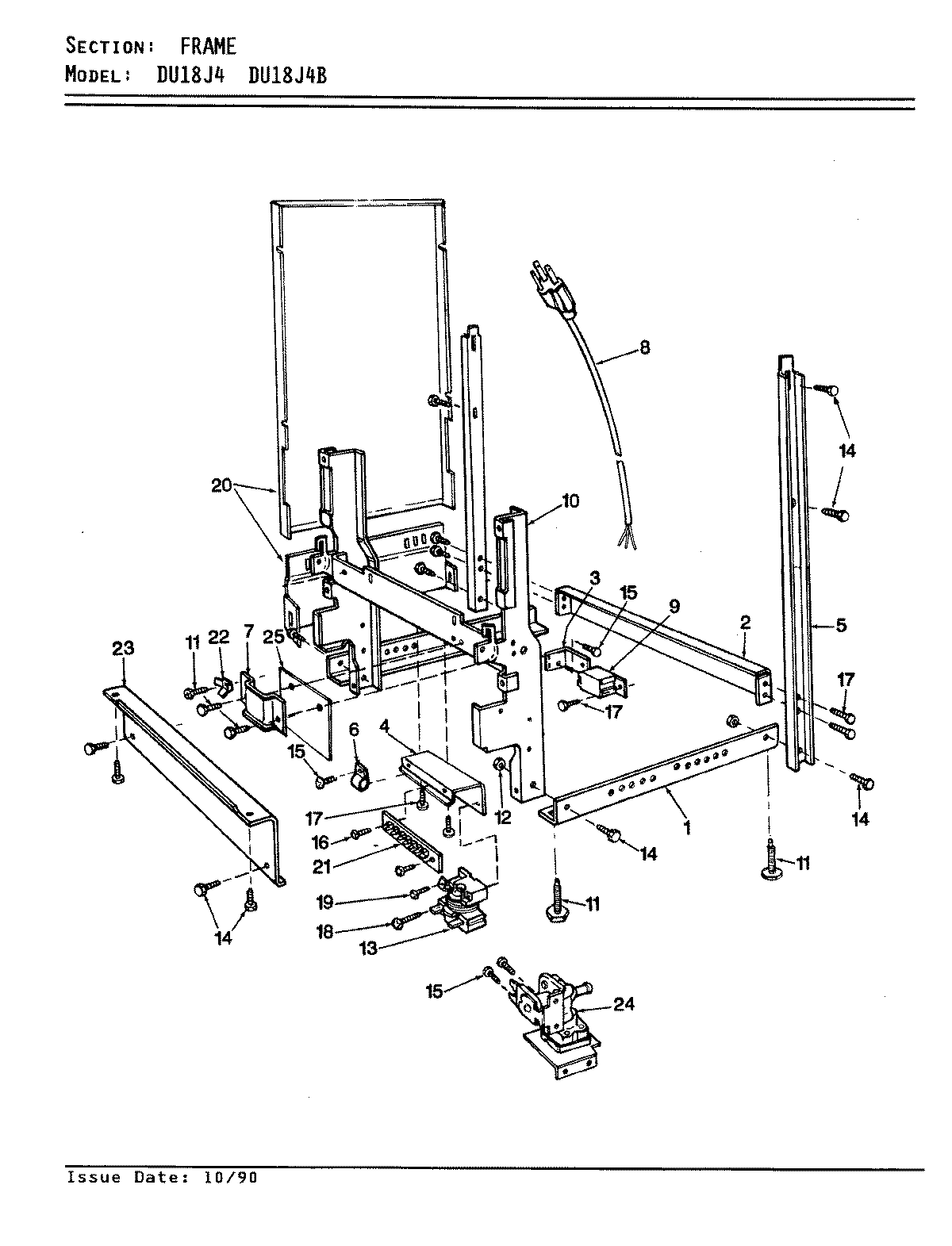

DU18J4B 04 – FRAME (DU18J4/DU18J4B)

Products

Position	Product
1	MAY 809543
2	MAY 807566
3	BRACKET
4	MAY 807849
5	MAY 808670
6	WIRE CLAMP
7	CLAMP
8	MAY 808395
9	TERMINAL COVER
10	HINGE ASM
11	MAY 809422
12	MAY 804619
13	RELAY
14	SCREW
15	MAY 807950
16	MAY 807501
17	MAY 808658
18	MAY 804672
19	MAY 806593
20	SIDE PANEL
21	MAY 807486
22	GROUND TERMINAL
23	TOE PLATE
24	WTR INLET VALVE
25	WIRE SHIELD
