DU18J4C 02 – DOOR (DU18J4C)

DU18J4C 02 – DOOR (DU18J4C)

Written by

in

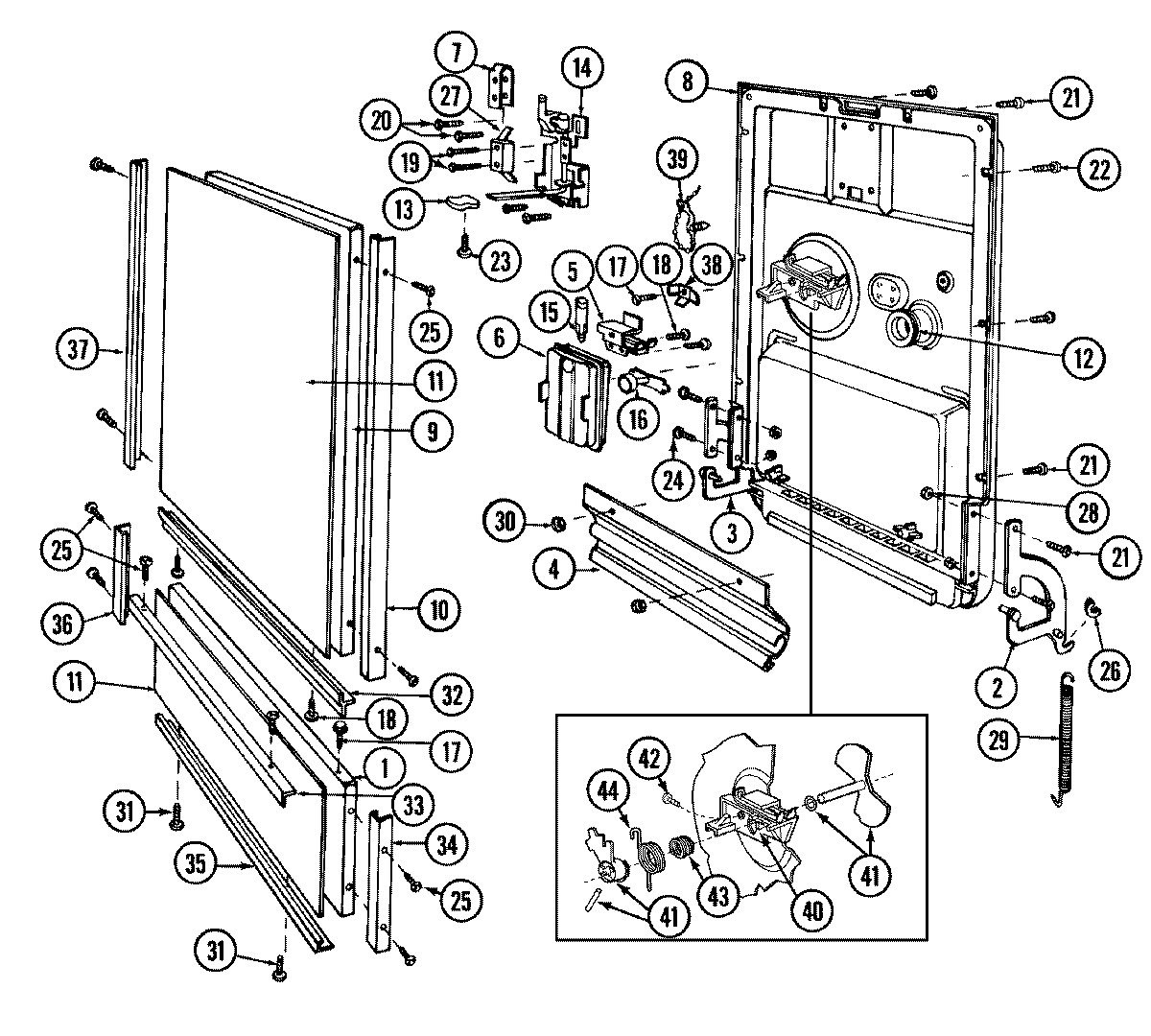

DU18J4C 02 – DOOR (DU18J4C)

Products

Position	Product
1	ACCESS PANEL
2	RH ARM
3	LH ARM
4	MAY 809636
5	MAY Y03100037
6	DISPENSER
7	SWITCH COVER
8	MAY 809635
9	DOOR PANEL
10	MAY 03100040
11	DOOR INSERT
12	GROMMET
13	LATCH KNOB
14	MAY Y03100036
15	MAY 03100003
16	MAY Y03100038
17	MAY 808658
18	MAY 807501
19	MAY 808618
21	MAY 809055
22	MAY 808749
23	SCREW
24	MAY 803311
25	MAY 03100039
26	SPRING PAD
27	MAY 807043
28	LOCKNUT
29	MAY 807601
30	MAY 03100063
31	SCREW
32	MAY 809637
33	ACCESS PNL TRIM
34	MAY 03100041
35	TRIM
36	MAY 03100042
37	MAY 03100043
38	GROUND TERMINAL
39	MAY 03100062
40	DET CUP TRIGGER
41	MAY Y03100061
42	MAY 809029
43	SPRING
44	SPRING
45	MAY 808935
